NanoPi NEO Plus2 H5 Quad-Core Development Board - 1GB RAM
$47.9500
In stock
SKU
MIN-07-004
Volume discounts:
- +10 4 % $46.1300
- +25 6 % $45.2100
- +50 8 % $44.3000
- +100 10 % $43.3900
- +300 11 % $42.4800
Product Variations: View out of stock variants
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NanoPi M1 Quad-Core Development Board - 512MB RAM Previous

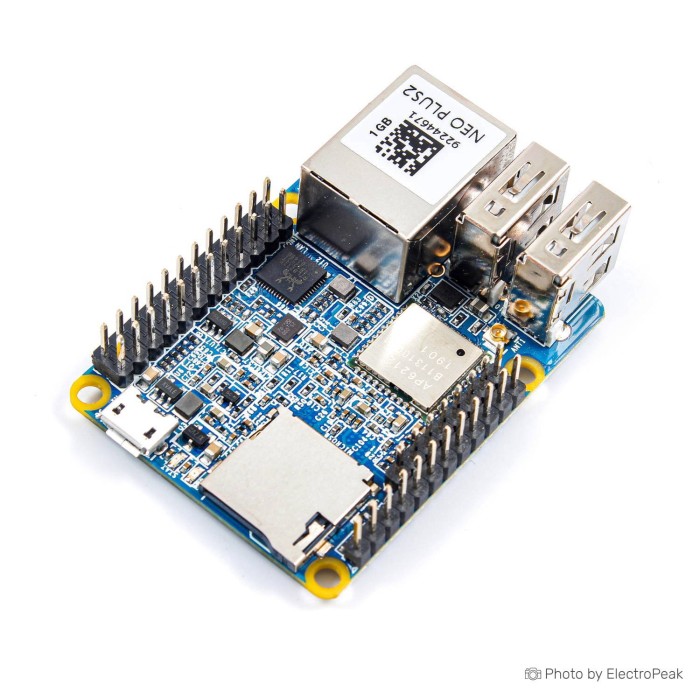

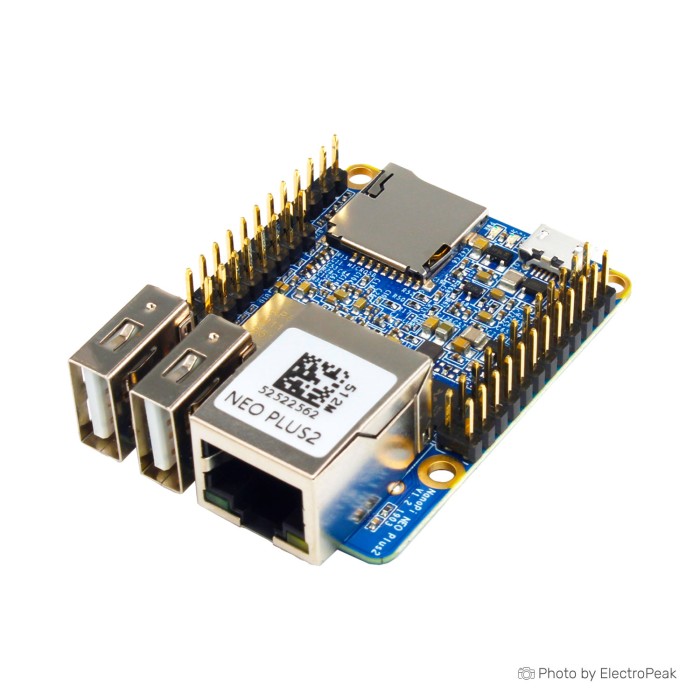

NanoPi NEO Plus2 is an ARM development board built around a quad-core Allwinner H5 Cortex A53 processor. It includes 512MB DDR3 RAM and two micro SD card slots for system booting or data storage. The board provides wired and wireless connectivity options, along with multiple expansion and debug interfaces. Its compact 40x52mm size and 5V/2A power input make it a small-format electronics and robotics board. NanoPi NEO Plus2 also includes dual USB ports and a 5-pin audio I/O interface.
Features of NanoPi NEO Plus2 Development Board
- Quad-core Cortex A53 processor
- 512MB DDR3 RAM
- Dual micro SD card slots
- Gbps Ethernet
- 802.11b/g/n wireless support
- Bluetooth 4.0 dual mode
- Two USB ports
- 5-pin audio I/O interface
- 4-pin serial debug header
- Dual-row GPIO expansion
Specifications of NanoPi NEO Plus2 Development Board
- Processor: Allwinner H5
- Processor Type: Quad-core 64-bit high-performance Cortex A53
- System Memory: 512MB DDR3 RAM
- Wired Network: Gbps Ethernet
- WiFi: 802.11b/g/n
- Bluetooth: 4.0 dual mode
- USB: Two ports
- micro SD Slot: Two slots
- Audio I/O: 5-pin
- Power Input: Micro USB
- Serial Debug: 4-pin
- Pin Header Pitch: 2.54 mm
- GPIO1: Twenty-four-pin 2.54 mm dual-row header
- GPIO1 Functions: UART, SPI, I2C, IO
- GPIO2: Twelve-pin 2.54 mm header
- GPIO2 Functions: USB, IR receiver, I2S, IO
- Dimensions: 40x52mm
- Power: 5V/2A
How to Use NanoPi NEO Plus2 Development Board
- Connect power through the micro USB input.
- Insert a micro SD card for booting or storage.
- Use the GPIO, USB, audio, or serial debug interfaces as needed.
More Info
- The board includes two micro SD card slots.
- GPIO1 supports UART, SPI, I2C, and IO.
- GPIO2 supports USB, IR receiver, I2S, and IO.
| Processor (SoC) | Allwinner H5 |
|---|---|
| CPU | Quad-core 64-bit high-performance Cortex A53 |
| Architecture | ARM Cortex-A53 |
| RAM | 512MB |
| RAM Type | DDR3 |
| Storage Support | microSD, eMMC |
| Storage Capacity | 8GB eMMC |
| GPU/VPU | Mali-450MP4 |
| Ethernet | 1 Gbps |
| Wi-Fi | WiFi 4 |
| Bluetooth | Bluetooth 4.0 |
| USB Ports | 2 x USB 2.0 Host (on 2.54mm pitch pin headers) |
| Video Output | No |
| Hardware Interfaces | I2C, SPI, UART |
| GPIO Pins | GPIO1: 24-pin 2.54mm double-row including UART, SPI, I2C, and IO. GPIO2: 12-pin 2.54mm including USB, IR receiver, I2S, and IO. |
| Camera/Display | No |
| Power Input | 5V/2A via MicroUSB or Pin Headers |
| PCIe | No |
| Dimensions (mm) | 40x52mm |
| OS Support | Linux, Android |
