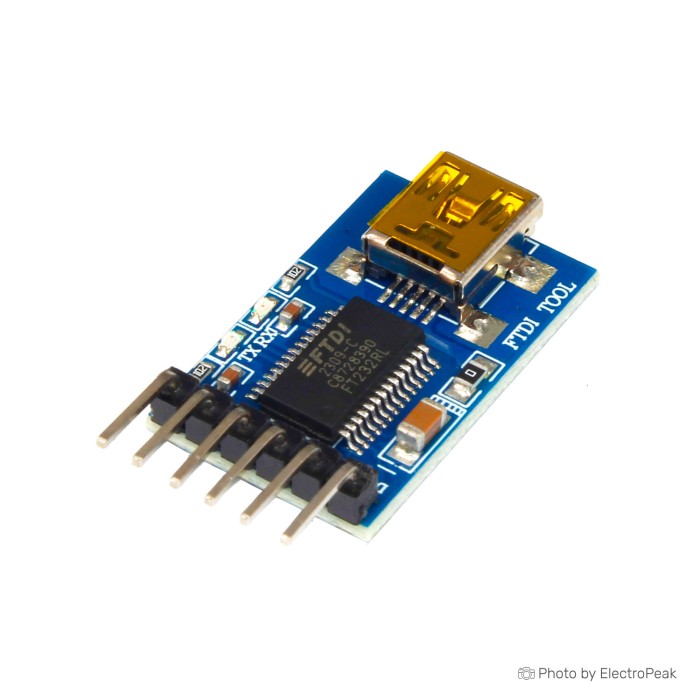

The FT232RL FTDI Mini USB To TTL Serial Converter Adapter Module provides a USB interface for serial communication projects. It adds a virtual serial port to a computer after driver installation. The module works with Windows, Mac, and Linux systems. It includes TXD, RXD, and GND pins, along with 3.3V or 5V output voltage. Based on the FT232RL chip, it is designed for USB/Serial/TTL interfacing and UART communication.
Features of FT232RL FTDI Mini USB To TTL Serial Converter Adapter Module - 3.3V/5V
- Automatic data rate detection
- Up to 1Mbps transfer speed
- UART protocol support
- RX and TX indicator LEDs
- Mini USB interface
- 3.3V and 5V signal level support
- DTR and CTS pins
- Power management for idle and standby mode
- Windows, Mac, Linux, and Windows CE support
Specifications of FT232RL FTDI Mini USB To TTL Serial Converter Adapter Module - 3.3V/5V
- Chip: FT232RL
- Output voltage: 5V and 3.3V DC
- Data transfer speed: up to 1Mbps
- Protocol: UART
- Interface: Mini USB
- Signal levels: 3.3V and 5V
- Supported operating systems: Windows 8
- Supported operating systems: Windows 7
- Supported operating systems: Windows Vista
- Supported operating systems: Windows XP
- Supported operating systems: Linux
- Supported operating systems: Mac OS X
- Supported operating systems: Windows CE 4.2-5.2
- Supported operating systems: Windows CE 6.0
- Pins: DTR and CTS
- Pins: TXD, RXD, and GND
How to Use FT232RL FTDI Mini USB To TTL Serial Converter Adapter Module - 3.3V/5V
- Connect the module to a computer through the Mini USB interface.
- Install the required driver to add a virtual serial port.
- Use the TXD, RXD, GND, DTR, and CTS pins for serial communication or programming.
More Info
- The DTR pin can be used for Arduino Pro Mini automatic reset.
- The module supports serial output devices such as modems, card reader devices, and digital cameras.
| Platform | Arduino Uno |
|---|---|
| Interface Type | USB, UART |
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT |
| Data transmission rate | 1Mbps |
| Standard | RS232, RS485, RS422 |
| Voltage Levels | 3.3V, 5V |
| Chipset | FT232RL |
| Direction | Bidirectional |
| Pins | 6 |
| Indicator LEDs | RX, TX |
