ADS1115 16-Bit, 4-Channel ADC Analog Digital Converter Module
$1.9600
In stock
SKU
COM-05-045
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8500
- +300 8 % $1.8100
- +500 10 % $1.7700
- +1000 12 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
FT232RL FTDI 3.3V/5V Mini USB to TTL Serial Converter Adapter Module Previous

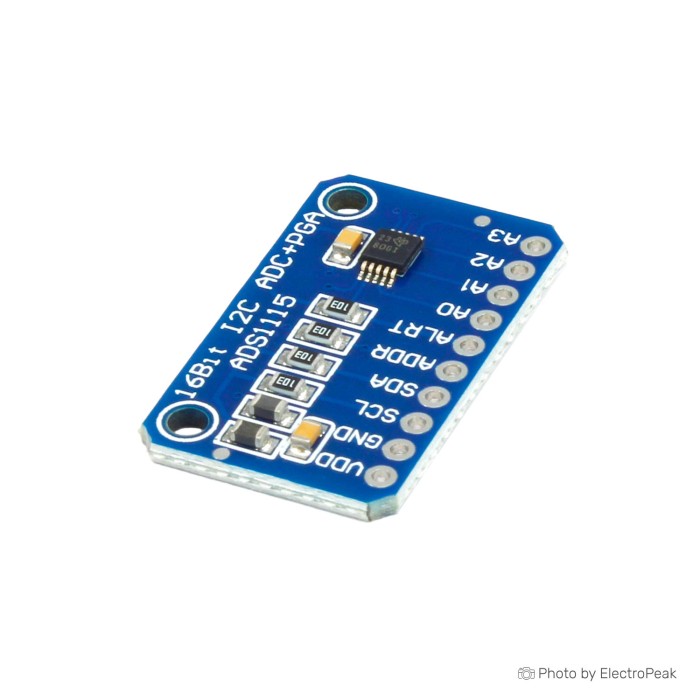

The ADS1115 16-Bit 4-Channel ADC Module is a precision analog to digital converter module with an I2C interface. It provides 16-bit resolution and 4 input channels for analog signal conversion. The module supports 2-5V DC input voltage and a current consumption of 150 microamps. It also includes a programmable gain amplifier, internal oscillator, auto shut-down, and internal reference. The ADS1115 can be used as a single-channel or two differential input device. With a programmed data rate of 8SPS to 860SPS, it is designed for accurate signal measurement in electronics and robotics projects.
Features of ADS1115 16-Bit 4-Channel ADC Module - I2C, 2-5V
- 16-bit conversion resolution
- 4-channel input support
- I2C interface
- Programmable gain amplifier
- Internal oscillator
- Auto shut-down function
- Internal reference
- Single-channel or two differential input mode
- Low current consumption
- Programmable data rate
Specifications of ADS1115 16-Bit 4-Channel ADC Module - I2C, 2-5V
- Conversion type: Analog to digital converter
- Interface type: I2C
- Channels: 4 channels, AN0, AN1, AN2, AN3, or 2 differential inputs
- Input voltage: 2-5V DC
- Current: 150 microamps
- Resolution: 16 bit
- Programmed data rate: 8SPS-860SPS
- Programmable input ranges: -0.256V ~ +0.256V
- Programmable input ranges: -0.512V ~ +0.512V
- Programmable input ranges: -1.024V ~ +1.024V
- Programmable input ranges: -2.048V ~ +2.048V
- Programmable input ranges: -4.096V ~ +4.096V
- Programmable input ranges: -6.144V ~ +6.144V
- Size: 18x28 mm
- Operating temperature range: 40- to 125 degrees Celsius
- GAIN adjustment support
- Operating frequency adjustment support
How to Use ADS1115 16-Bit 4-Channel ADC Module - I2C, 2-5V
- Connect the module to a compatible microcontroller or board with I2C support.
- Apply a 2-5V DC supply to the module.
- Configure the required input channel, gain, and data rate.
- Read the converted digital output from the I2C interface.
More Info
- Suitable for battery monitoring, temperature measurement, home automation, and portable instruments.
- Can be used with Arduino and Raspberry Pi boards.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2-5V DC |
| Operating Current (mA) | 0.15 |
| Operating Temp (°C) | -40 to 125 |
| Dimensions (mm) | 18x28 mm |
| Interface Category | Converter |
| Encoder Resolution (PPR) | 16-bit |
| Output Type | I2C |
| Channels | 4-channel |
| Chipset | ADS1115 |
| Voltage Range | -0.256V ~ +0.256V, -0.512V ~ +0.512V, -1.024V ~ +1.024V, 2.048V ~ +2.048V, -4.096V ~ +4.096 V, -6.144V ~ +6.144V |
| Protocols | I2C |
| Conversion Type | Analog to Digital |
