$0.50

Description

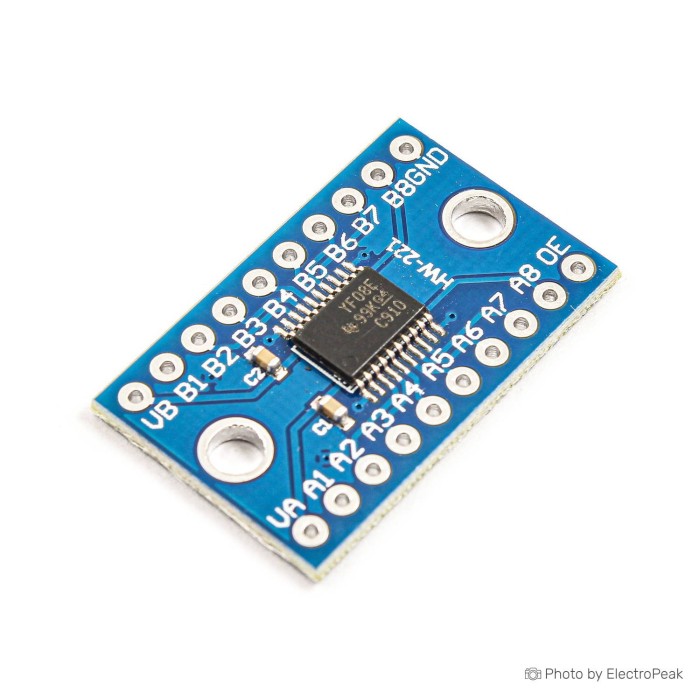

This product is a bidirectional logic level converter, it can make a connection between devices operating at different voltages. It works with both open-drain and push-pull configurations. This 8-bit translator uses two separate configurable power-supply rails. The A port tracks the VA (VCCA) pin supply voltage. The VA pin accepts any supply voltage between 1.2 V and 3.6 V. The B port tracks the VB (VCCB) pin supply voltage. The VB pin accepts any supply voltage between 1.65 V and 5.5 V.

Features
Chip: TXS0108E
Channel: 8 Channel
VCCA terminal support voltage : 1.2V-3.6V
VCCB terminal support voltage : 1.65V-5.5V
Maximum transfer speed for push-pull: 110 Mbps
Maximum transfer speed for open-drain: 1.2 Mbps
Pin Number: 20 Pin
Size: 26mm x 16mm x 3mm
