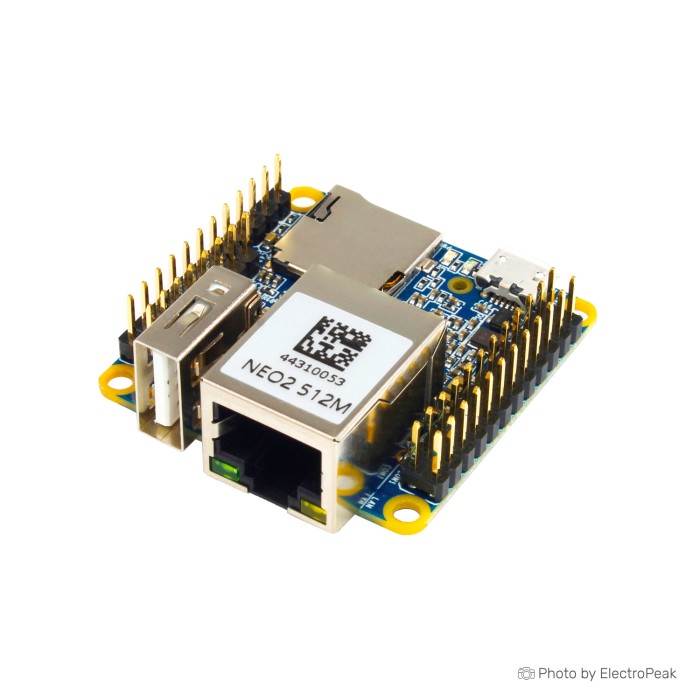

NanoPi NEO2 H5 Quad-Core Development Board - 512MB RAM
- +10 4 % $35.42
- +25 6 % $34.65
- +50 8 % $33.89
- +100 10 % $33.12
- +300 12 % $32.36
-
CH340G USB to TTL Converter$0.80 -
PL2303 USB to TTL/USB-TTL/STC Converter - Microcontroller Programmer$0.70
Description
NanoPi NEO Quad Core Cortex A7 Board [256M, 512GB RAM] is a full computer on a small single-board (smaller than half size of the Raspberry Pi), which consist of CPU, GPU, HDD, RAM, Ports, and also operating systems to be placed in educational robot, copters, toys, etc., to command and control things. FriendlyARM is an open-source computer developer which makes open-source single-board computers with NanoPi brand, for Linux hackers, toymakers, and hobbyists. Such a single-board computer can be run under the Linux based operating system. The NanoPi computers are produced in different model and series of NanoPi 2, NanoPi 2 Fire, NanoPi M1, NanoPi M2, NanoPi M3, NanoPi NEO, NanoPi NEO Air, NanoPi NEO core, NanoPi S2, NanoPi fire, Nano Pi Duo, etc.
This computer board is NEO series and based on the Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz CPU with 256MB or 512MB optional DDR3 SDRAM, which is booted and operated on the Linux Based operating system such as u-boot and UbuntuCore. This series is ultra-low size, simplified, and funny, to control the things easily and simply. This board is supplied by 5V DC with 2A current through the micro-USB port or 2 pins input. It has OTG-USB (data and power in), USB2A-host, USB (through the pins of GPIO pins), MiPi video socket (for LCD and camera), and RJ45 as input ports and pins serial GPIO-UART, SPI, I2C, Audio, etc, and a TFT slot.
This computer board is sold alone, but you can prepare its dedicated accessory such as USB to Micro-USB cable, 220 to 5V 2A adapter, NanoPi case, from our site store.
Features
CPU: Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM: 256MB/512MB ( Optional )
Connectivity: 10/100M Ethernet
USB Host: Type-A x 1, 2.54 mm pin x 2
MicroSD Slot x 1
MicroUSB: for data transmission and power input
Debug Serial Port: 4Pin, 2.54 mm pitch pin header
GPIO: 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO, etc
PCB Dimension: 40 x 40 mm
Power Supply: DC 5V/2A
OS/Software: u-boot and UbuntuCore
