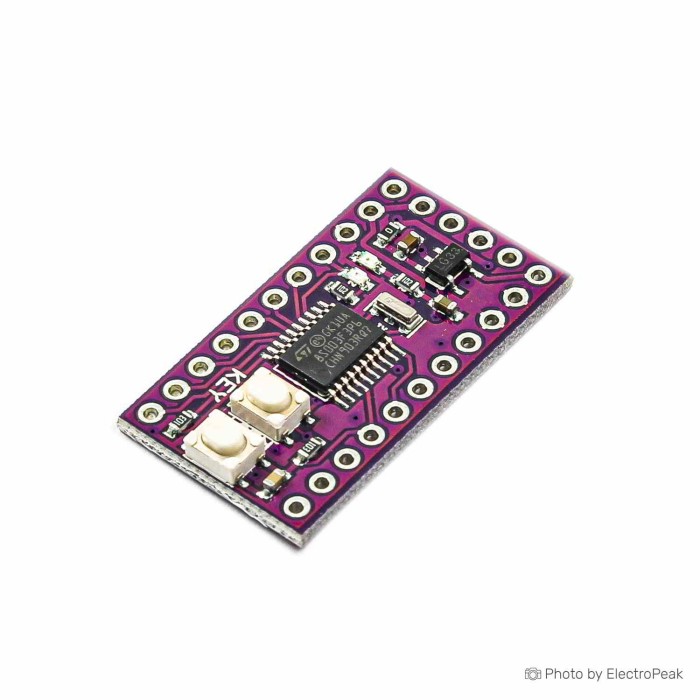

CJMCU STM8S003F3P6 8-Bit ARM Development Board
$3.0000
In stock
SKU
MIC-02-014
Volume discounts:
- +25 4 % $2.8800
- +100 6 % $2.8200
- +300 8 % $2.7600
- +500 10 % $2.7000
- +1000 12 % $2.6400
Product Variations: View out of stock variants
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
STM8S105K4T6 Development Board Previous
CJMCU STM8S003F3P6 8-Bit Development Board is a minimum system board built around the advanced STM8 8-bit core. It is designed for STM8S003F3P6 microcontroller development and inspection. The board provides flexible access to microcontroller pins for input and output use. It supports high performance, synchronous operation, digital signal processing, and low-power applications. SWIM is included for fast on-chip programming and debugging.
Features of CJMCU STM8S003F3P6 8-Bit Development Board
- Advanced STM8 8-bit core
- 16 MHz core speed
- Flexible pin input and output use
- SWIM programming and debugging
- Low-power operation modes
Specifications of CJMCU STM8S003F3P6 8-Bit Development Board
- Processor: 8 bit
- Brand: CJMCU
- Core: STM8 advanced core
- Speed: 16 MHz
- Flash memory: 8 Kbytes
- Data retention: 20 years in 100 cycles
- RAM: 1 Kbyte
- EEPROM data memory: 128 bytes
- Writes/erase cycles: 100000
- Operating voltage: 2.95 to 5.5 V DC
- Flexible clock control: 4 modes
- Low-power crystal oscillator
- External clock input
- User-trimmed internal clock up to 16 MHz RC
- 128 kHz internal RC clock
- Clock security system with monitor
- Power management: wait, active-halt, halt
- Switch-off mode
- Power on/off button
- External interrupt handling: up to 27 interrupts in 6 vectors
- Timer: advanced 16 bit
- CAPCOM channels: 4
- Complementary outputs: 3
- 8 bit timer
- Auto wake-up timer
- Watchdog
- Independent watchdog timer
- Communication protocol: UART
- Clock output for synchronous operation
- Smartcard mode
- IrDA mode
- LIN mode
- SPI interface: up to 8 Mbit/s
- I2C interface: up to 400 Kbit/s
- ADC: 10 bit
- ADC accuracy: +/-1 LSB
- ADC channels: 5 multiplexed channels
- ADC scan mode
- Analog watchdog
- I/O pins: 16
- SWIM single-wire interface
- 2.54 mm pitch pin header
- 8M Japan Murata Crystal
- Voltage regulator
- Mini-USB connector
- USB power supply support
- Two-line power supply support
- UART1 full feature support
- SPI master mode
- SPI full and half-duplex
- I2C up to 400 Kbit/s
How to Use CJMCU STM8S003F3P6 8-Bit Development Board
- Connect the board through the mini-USB connector or a two-line power supply.
- Use the 2.54 mm pitch pin header to access the required microcontroller pins.
- Program or debug the board using the SWIM interface.
More Info
- Built on the STM8S003F3P6 microcontroller platform.
- Suitable for STM8-based development boards and electronics projects.
| MCU/SoC | STM8S003F3P6 |
|---|---|
| Product Family | STM8 |
| Architecture | 8-bit STM8S |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz |
| Flash | 8 KB |
| SRAM | 1 KB |
| EEPROM | 128 Bytes |
| External Memory | No |
| GPIO Pins | 16 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| USB Ports | 0 |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 5 |
| DAC Channels | No |
| PWM Channels | 4 |
| Timers Count | 16-bit, 8-bit |
| Operating Voltage (V) | 2.95V - 5.5V |
| GPIO Voltage (V) | 3.3V, 5V |
| Wireless | No |
| Form Factor | TSSOP20 Breakout Board |
| IDE Support | IAR, Cosmic, STVD |
| Antenna Type | No |
| Bluetooth Ver. | No |
