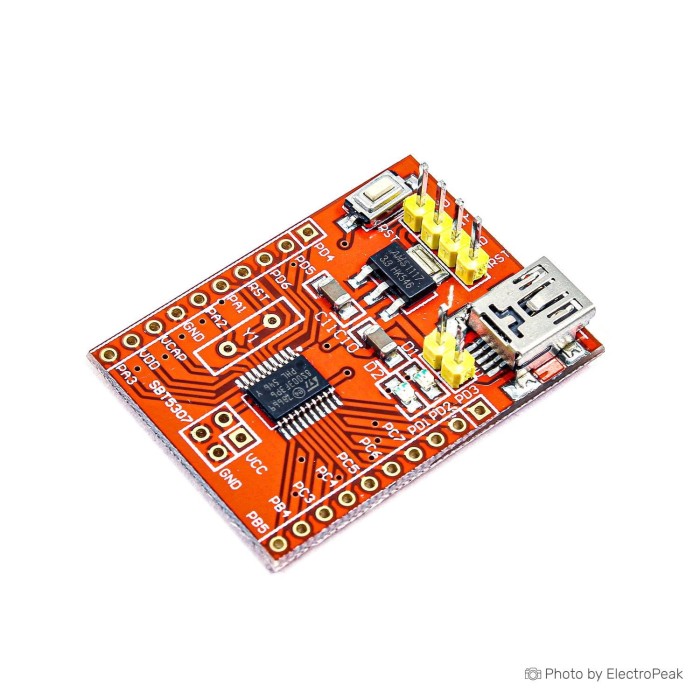

STM8S003F3P6 Minimum System Development Board

STM8S003F3P6 Minimum System Development Board is a compact minimum system board for STM8S003F3P6 microcontroller projects. It includes an on-board 3.3V regulator and a miniUSB power connection. All pins on the board are brought out with a standard 2.54 mm pitch. The board is designed for prototype development and testing of STM8S003F3P6-based applications. It also includes a SWIM programming connector and onboard status indicators for basic board operation.

Features of STM8S003F3P6 Minimum System Development Board - 3.3V

• On-board 3.3V regulator
• miniUSB power input
• Standard 2.54 mm pitch headers
• SWIM programming connector
• Reset button
• Onboard user LED on PD3
• All MCU pins broken out

Specifications of STM8S003F3P6 Minimum System Development Board - 3.3V

• Microcontroller: STM8S003F3P6
• CPU core: STM8S 16-bit, 8 MHz
• Flash memory: 8 KB
• Data EEPROM: 128 bytes
• ADC: 10-bit
• Timers: 3
• Communication protocols: UART
• Communication protocols: SPI
• Communication protocols: I2C
• On-board regulator: 3.3V
• Pin pitch: 2.54 mm
• Power connector: miniUSB
• Input voltage: 3.3V - 5V
• Frequency: 16 MHz
• RAM: 1 KB
• Size: 28mm x 39mm

How to Use STM8S003F3P6 Minimum System Development Board - 3.3V

1. Connect power through the miniUSB connector or a two-line power supply.
2. Use the SWIM connector for programming and debugging.
3. Access the broken-out MCU pins for prototype wiring.
4. Connect an external LED to the PD3 pin if needed for debugging.

More Info

• Suitable for STM8S003F3P6-based prototype development.
• The board includes a power LED.
