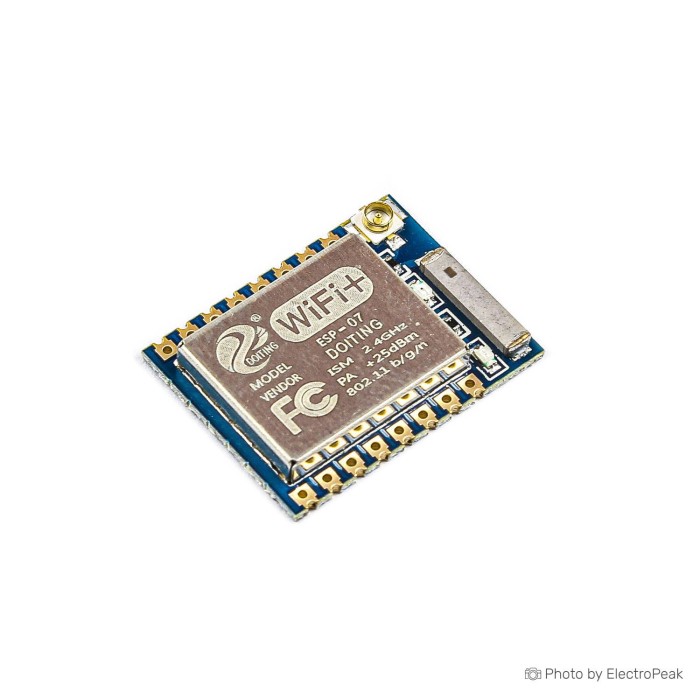

ESP-07 ESP8266 Wi-Fi Module - IPX Antenna

ESP-07 ESP8266 Wi-Fi Module - IPX Antenna is a compact Wi-Fi module with an ESP8266 core. It is designed for wireless connectivity over WiFi and supports network communication. The module includes a ceramic antenna and an IPX socket for an external antenna. A metal shield is also provided on the IC for reduced noise sensitivity and added physical protection. It is suitable for Wi-Fi-based electronics and connectivity applications.

Features of ESP-07 ESP8266 Wi-Fi Module - IPX Antenna

• Compact ESP8266 Wi-Fi module
• Ceramic antenna included
• IPX external antenna socket
• Metal shielding case
• WiFi network connectivity
• Integrated TCP/IP protocol stack
• Integrated TR switch and matching network
• Integrated PLL and regulator
• WIFI Direct (P2P)
• SOFT-AP support
• AP, STA, and AP+STA modes
• AT command support

Specifications of ESP-07 ESP8266 Wi-Fi Module - IPX Antenna

• Working voltage: 3.3 (3-3.6) V DC
• Operating temperature range: 40- to 85+ degrees Celsius
• Operating frequency range: 2.4-2.5 GHz
• RAM: 50 KB
• Flash: 32 Mbit
• Working current: 80 mA
• Output power: 25 dBm
• Communication protocol: UART/SPI/I2C/ Remote Contorl
• Standard: b/g/n protocol 802.11
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• PLL and internal regulator
• Wi-Fi 2.4 GHz, support WPA/WPA2
• SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
• Standby power consumption: less than 1 mW
• Power down leakage current: <10uA
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 1.1/2.0, SPI, UART
• STBC, 1x1 MIMO, 2x1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4ms guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption: < 1.0mW (DTIM3)
• Semi hole SMT technology
• All IO leads
• Metal shielding case
• Support external IPX antenna
• Support internal ceramic antenna

How to Use ESP-07 ESP8266 Wi-Fi Module - IPX Antenna

1. Provide the module with the specified working voltage.
2. Select the internal ceramic antenna or connect an external antenna through the IPX socket.
3. Connect using the required communication protocol or AT commands.
4. Configure the Wi-Fi mode needed for the application.

More Info

• Designed for Wi-Fi-based electronics and connectivity tasks.
• Includes both internal antenna support and an external antenna connection.
