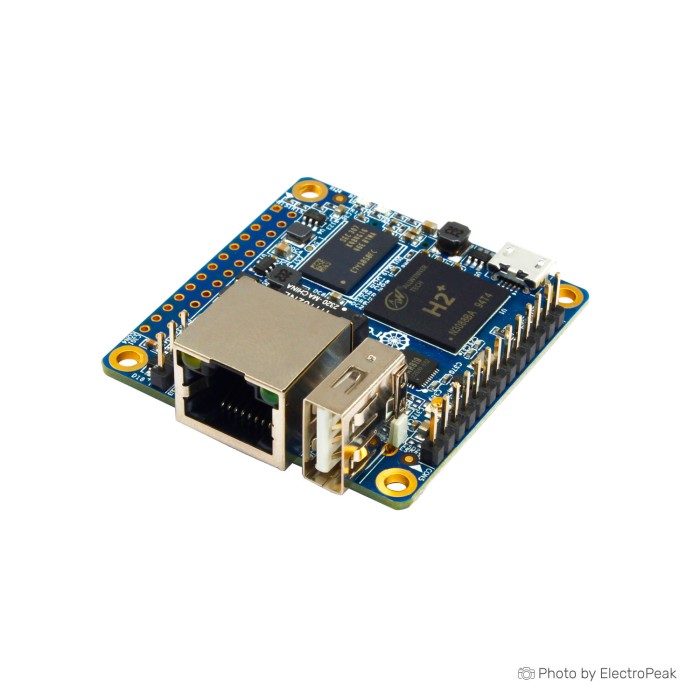

Orange Pi Zero H2 Quad Core Development Board - 512MB RAM

Orange Pi Zero H2 Quad Core Development Board - 512MB RAM is a compact development board for electronics and robotics projects. It combines CPU, GPU, memory, storage, networking, audio, and low-level headers on a single board. The board supports multimedia playback, network connectivity, and hardware expansion through multiple interfaces. It is built for projects that need a small single-board computer with broad connection options.

Features of Orange Pi Zero H2 Quad Core Development Board - 512MB RAM

• Quad-core Cortex-A7 CPU
• H.265/HEVC 1080P support
• Mali400MP2 GPU
• OpenGL ES 2.0 support
• 512MB DDR3 RAM
• TF card storage support
• 10/100M Ethernet
• IEEE 802.11 b/g/n WiFi
• 3.5mm audio output
• 26-pin and 13-pin headers
• IR remote support
• Power and status LEDs

Specifications of Orange Pi Zero H2 Quad Core Development Board - 512MB RAM

• CPU: H2+ Quad-core Cortex-A7 H.265/HEVC 1080P
• GPU: Mali400MP2 @ 600MHz
• OpenGL ES 2.0 support
• SDRAM: 512MB DDR3
• SDRAM shared with GPU
• Onboard storage: TF card slot
• TF card maximum capacity: 32GB
• SPI flash: 2MB
• Onboard network: 10/100M Ethernet RJ45 POE
• POE default off
• Onboard WiFi: XR819
• WiFi standard: IEEE 802.11 b/g/n
• Bluetooth: no Bluetooth
• Video output: AV OUT via external 13-pin board
• Audio output: 3.5mm audio port
• Audio output channels: 2-channel output
• Audio input channels: 1-channel input
• Audio interface via 13-pin interface board
• Power source: MicroUSB OTG
• USB 2.0 ports: three USB 2.0 HOST ports
• Two USB 2.0 HOST ports via 13-pin interface board
• Low-level peripherals: 26-pin header with I2C, SPI, UART, and multiple GPIO ports
• Low-level peripherals: 13-pin header with 2*USB Host, IR pin, AV-out, AUDIO (MIC, AV)
• Debug ports: 3-pin debug ports
• Debug serial port: UART-TX, UART-RX, GND
• LED: power LED
• LED: status LED
• IR receiver: supports IR remote control via 13-pin interface board
• Supported operating systems: Android
• Supported operating systems: Lubuntu
• Supported operating systems: Debian
• Dimensions: 48mm, 46mm

How to Use Orange Pi Zero H2 Quad Core Development Board - 512MB RAM

1. Connect power through the MicroUSB OTG port.
2. Attach storage, display, audio, network, or USB peripherals as needed.
3. Use the 26-pin or 13-pin headers for hardware expansion and debugging.

More Info

• Supports IR remote control through the 13-pin interface board.
• Includes power and status LEDs for board indication.
