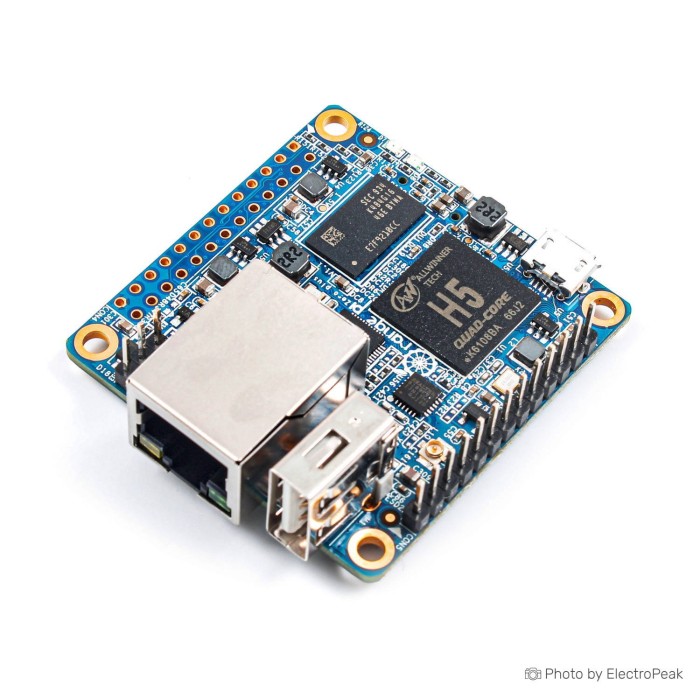

Orange Pi Zero Plus Quad Core Development Board - 64bit, 512MB RAM

Orange Pi Zero Plus is a quad-core 64-bit single-board computer based on the AllWinner H5 SoC Family. It is built for compact electronics and development board applications. The board includes CPU, GPU, RAM, Wi-Fi, ports, and operating system support in one small form factor. Orange Pi Zero Plus can run Android5.1, Lubuntu, Debian, and Armbian Image. It also features onboard storage options, Ethernet connectivity, and multiple headers for expansion.

Features of Orange Pi Zero Plus Quad Core Development Board

• Quad-core 64-bit CPU
• Open-source single-board computer
• Onboard Wi-Fi antenna
• USB 2.0 OTG and host ports
• 26-pin header expansion
• 13-pin header expansion
• Power and status LEDs
• Power button included

Specifications of Orange Pi Zero Plus Quad Core Development Board

• CPU: H5 Quad-core 64-bit Cortex-A53
• GPU: Hexa-core Mali450 OpenGL ES 2.0/1.1/1.0
• OpenVG 1.1
• EGL 40 GFlops
• Pixel fill rate greater than 2.7GPixel/s
• Memory (SDRAM): 512MB DDR3 (shared with GPU)
• Onboard Storage: TF card (Max. 32GB)
• Onboard Storage: Spi flash(2MB)
• Wifi Antenne: Yes
• Onboard WIFI: Realtek RTL8189FTV
• Onboard WIFI: IEEE 802.11 b/g/n
• Onboard Network: 1000M/100M Ethernet RJ45
• Onboard Network: 100M/10M Ethernet RJ45
• Audio Input: No
• Video Outputs: Supports external board via 13pins
• Power Source: USB OTG
• USB 2.0 Ports: One USB 2.0 HOST
• USB 2.0 Ports: One USB 2.0 OTG
• Buttons: Power Button(SW602)
• 26 Pins Header
• 13 Pins Header
• 2x USB
• IR pin
• AUDIO(MIC, AV)
• GPIO(1x3) pin: UART
• GPIO(1x3) pin: ground
• LED: Power led
• LED: Status led
• Supported OS: Android5.1
• Supported OS: L-ubuntu
• Supported OS: Debian
• Supported OS: Armbian Image
• Product size: 45 mm x 48mm

How to Use Orange Pi Zero Plus Quad Core Development Board

1. Install a compatible operating system image.
2. Connect power through USB OTG.
3. Use the available headers and ports for expansion.

More Info

• Designed as an open-source single-board computer.
• Suitable for development and electronics projects.
