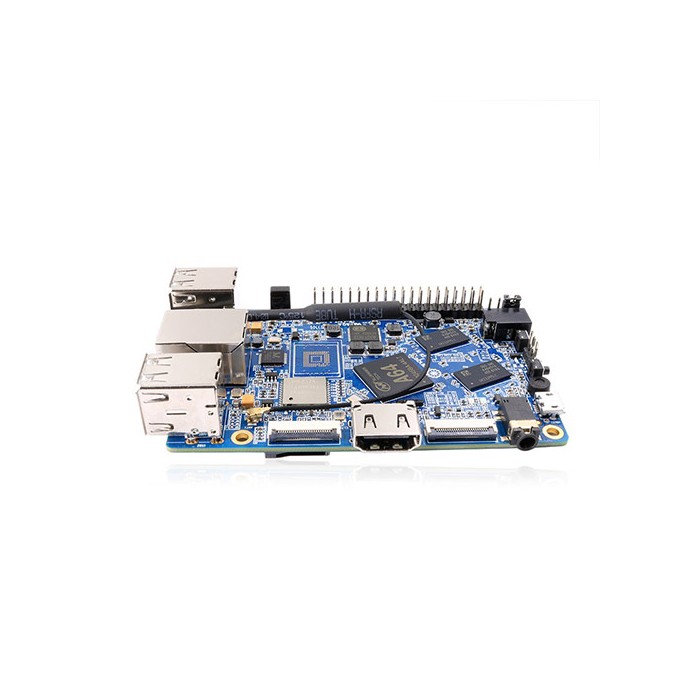

Orange Pi Win Quad-core Development Board

Orange Pi Win is a single-board computer in the Orange Pi series with a quad-core A64 processor and 1GB DDR3 SDRAM. It supports Android, Ubuntu, Debian, and Raspbian. The board includes onboard wireless connectivity, video input and output interfaces, and multiple USB 2.0 ports. Orange Pi Win is designed as a development board with UART support, a 40-pin header, and onboard status and power indicators.

Features of Orange Pi Win Quad-Core Development Board - 1GB DDR3

• Quad-core A64 processor
• 1GB DDR3 SDRAM
• Onboard Wi-Fi and Bluetooth
• 40-pin header
• Power and reset buttons
• IR support
• Power and status LEDs

Specifications of Orange Pi Win Quad-Core Development Board - 1GB DDR3

• Processor: A64 Quad-core Cortex-A53 64bit
• GPU: Mali400MP2 GPU with OpenGL ES 2.0 and OpenVG1.1 support
• Memory: 1GB DDR3 SDRAM shared with GPU
• Storage: TF card (Max. 32GB) / NOR flash(2MB) / eMMC（Default empty
• Onboard network: 1000M/100M Ethernet RJ45
• Wi-Fi: AP6212
• Wireless standard: IEEE 802.11 b/g/n
• Bluetooth: BT4.2
• Video input: CSI camera input connector
• Video input sensor interface: 8-bit YUV422 CMOS
• Video input protocol: CCIR656 for NTSC and PAL
• Video input sensor: SM camera pixel sensor
• Video recording: 1080p@30fps
• Audio input: 3.5 mm jack
• Audio input: MIC
• Video output: LCD
• Audio output: 3.5 mm jack
• Audio output: HDMI
• Power input: USB OTG
• Power input: DC
• Power input: battery
• UART: Supported
• USB 2.0 ports: one USB OTG
• USB 2.0 ports: four USB host
• Header: 40-pin header
• Compatibility: Raspberry Pi B+
• Buttons: power button
• Buttons: reset button
• IR: Included
• Indicators: power LED
• Indicators: status LED
• Supported operating systems: Android
• Supported operating systems: Ubuntu
• Supported operating systems: Debian
• Supported operating systems: Raspbian
• Dimensions: 93 * 60 mm
• Weight: 48 g

How to Use Orange Pi Win Quad-Core Development Board - 1GB DDR3

1. Connect a suitable power input to the board.
2. Insert the required storage media and connect the needed interfaces.
3. Install and run one of the supported operating systems.

More Info

• Open-source single-board computer
• Compatible with Raspberry Pi B+
