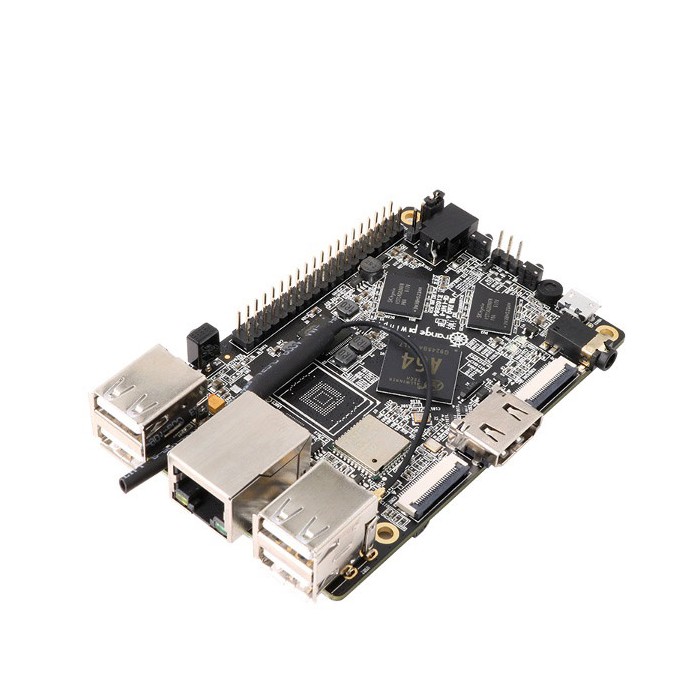

Orange Pi Win Plus Quad-core Development Board

Orange Pi Win Plus Quad-Core Development Board is an open-source single-board computer with a compact form factor. It is designed for systems that use Android, Ubuntu, Debian, or Raspbian. The board includes the AllWinner A64 SoC and 2GB DDR3 SDRAM. It also supports onboard storage options including TF card, NOR flash, and eMMC. Networking, audio, video, USB, and GPIO connections are integrated on the board.

Features of Orange Pi Win Plus Quad-Core Development Board - 2GB, 64Bit

• Open-source single-board computer
• AllWinner A64 SoC
• 2GB DDR3 SDRAM
• TF card storage support
• NOR flash support
• eMMC support
• Onboard Ethernet
• Onboard Wi-Fi and Bluetooth
• 40-pin header
• Power and reset buttons
• Power and status LEDs

Specifications of Orange Pi Win Plus Quad-Core Development Board - 2GB, 64Bit

• CPU: A64 Quad-core Cortex-A53 64bit
• GPU: Mali400MP2 GPU with OpenGL ES 2.0 and OpenVG1.1 support
• Memory (SDRAM): 2GB DDR3 shared with GPU
• Storage: TF card (Max. 32GB) / NOR flash(2MB) / eMMC (Default empty)
• Onboard Network: 1000M/100M Ethernet RJ45
• Onboard WIFI+BT: AP6212, IEEE 802.11 b/g/n, BT4.2
• Video Input: CSI camera input connector
• Video Input: 8-bit YUV422 CMOS sensor interface support
• Video Input: CCIR656 protocol support for NTSC and PAL
• Video Input: SM pixel camera sensor support
• Video Input: Up to 1080p@30fps video capture support
• Audio Input: MIC
• Audio Input: 3.5 mm Jack
• Video Outputs: LCD
• Audio Outputs: 3.5 mm Jack
• Audio Outputs: HDMI
• Power Source: USB OTG input
• Power Source: DC input
• Power Source: Battery input
• USB 2.0 Ports: One USB OTG
• USB 2.0 Ports: Four USB 2.0 HOST
• 40 Pins Header: Compatible with Raspberry Pi B+
• Buttons: Power Button
• Buttons: Reset Button
• LED: Power LED
• LED: Status LED
• Supported OS: Android
• Supported OS: Ubuntu
• Supported OS: Debian
• Supported OS: Raspbian
• Dimensions: 93 x 60 mm
• Weight: 48 g

How to Use Orange Pi Win Plus Quad-Core Development Board - 2GB, 64Bit

1. Connect a suitable power source through USB OTG, DC input, or battery input.
2. Install the required operating system on compatible storage media.
3. Use the available ports, header, and connectors for your setup.

More Info

• The board supports UART communication.
• IR input is included.
• The 40-pin header is compatible with Raspberry Pi B+.
