Pro Mini BAITE ATMEGA328P-MU (Arduino Compatible)
$8.9500
In stock
SKU
ARD-01-018
Volume discounts:
- +25 4 % $8.5800
- +50 6 % $8.3900
- +100 8 % $8.2000
- +300 10 % $8.0200
- +500 13 % $7.8300
Product Variations:
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arduino Nano (Clone) Previous

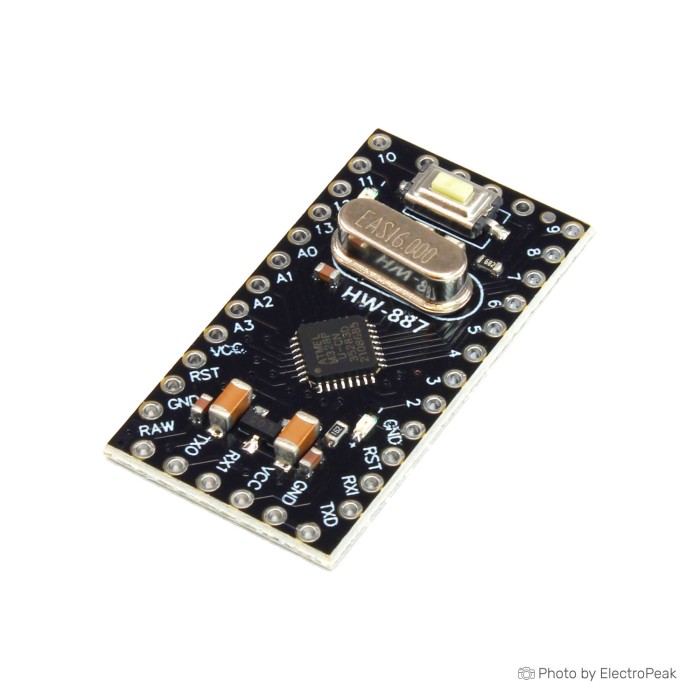

BAITE Pro Mini ATmega328P-MU Arduino Compatible Board is a 5V microcontroller circuit board with a 16MHz clock. It includes 14 digital input/output pins, 8 analog inputs, and 6 PWM-capable pins. The board features an ATmega328P-MU microcontroller, a reset button, and a mounting hole. Programming requires an external USB to TTL converter. It is powered through VCC at 5V or RAW at 5-9V.
Features of BAITE Pro Mini ATmega328P-MU Arduino Compatible Board - 5V, 16MHz
- ATmega328P-MU microcontroller
- 14 digital input/output pins
- 6 PWM output pins
- 8 analog inputs
- External USB to TTL programming
- Reset button included
- Mounting hole included
Specifications of BAITE Pro Mini ATmega328P-MU Arduino Compatible Board - 5V, 16MHz
- Microcontroller: ATMega328P-MU
- Operating voltage: 5 V
- Digital Inputs / Outputs: 14 (6 of which can be used as PWM outputs)
- Analog inputs: 8
- PWM ports: D3, D5, D6, D9, D10, D11
- DC current through the input / output: 40 mA
- Flash memory: 32 Kb from which 0.5 Kb are used for the loader
- SRAM: 2 KB
- Non-volatile memory: 1 KB
- Clock frequency: 16 MHz
- Dimensions: 33.3mm x 18mm
- Programming: Support serial port download
- Input voltage (recommended): 5-9 V MAX
- 1 pair of TTL level serial port transceiver ports RX/TX
- 14 digital input/output ports RX, TX, D2~D13
- 8 analog input ports A0~A7
How to Use BAITE Pro Mini ATmega328P-MU Arduino Compatible Board - 5V, 16MHz
- Connect an external USB to serial or USB to TTL converter to the RX/TX pins for programming.
- Power the board through VCC at 5V or RAW at 5-9V.
- Solder the required headers or wires according to your project needs.
More Info
- Professional version of the Mini Pro board
- Compatible with Arduino Pro Mini form factor
- Connectors are not populated
| MCU/SoC | ATMega328P-MU |
|---|---|
| Product Family | Arduino |
| Architecture | AVR |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz |
| Flash | 32 KB |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| GPIO Pins | 14 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| Ethernet Support | No |
| ADC Channels | 8 |
| PWM Channels | 6 |
| Timers Count | 3 |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 5V |
| GPIO Current (mA) | 40 mA |
| Wireless | No |
| Form Factor | 33.3mm x 18mm |
| IDE Support | Arduino IDE |
| Input Voltage (V) | 5-9V |
| Antenna Type | No |
| Bluetooth Ver. | No |
