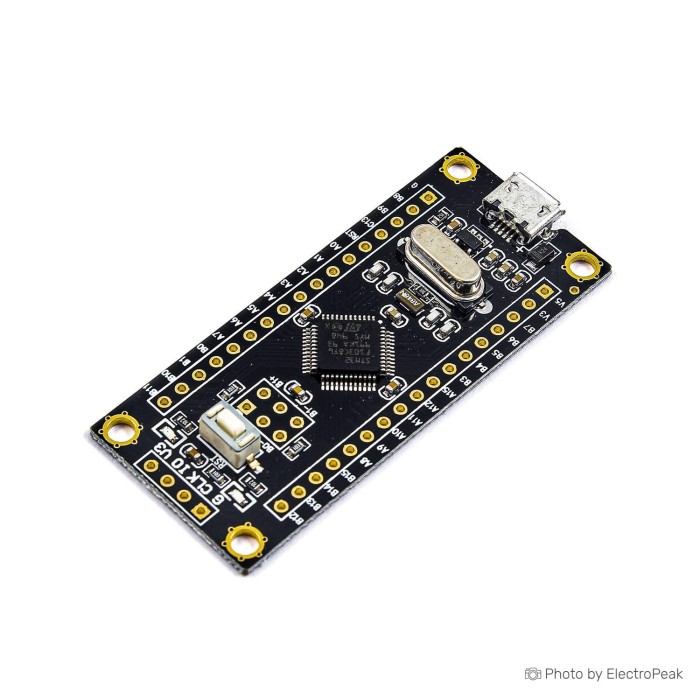

STM32F103C8T6 32-Bit ARM Development Board- Clone

STM32F103C8T6 32-Bit ARM Development Board - Clone is a compact STM32 development board based on an ARM Cortex-M3 core. It is designed for 32-bit microcontroller development, inspection, and educational use. The board supports multiple communication interfaces and includes on-board debugging support. It also provides low-power operation features and a 12-bit ADC. This board can be used with an OLED display.

Features of STM32F103C8T6 32-Bit ARM Development Board - Clone

• ARM Cortex-M3 core
• 72 MHz maximum clock speed
• Low-power operation
• 12-bit ADC
• USB, CAN, I2C, USART, and SDIO interfaces
• JTAG, SWD, and IAP support
• OLED display support

Specifications of STM32F103C8T6 32-Bit ARM Development Board - Clone

• Processor: ARM 32-bit Cortex-M3 CPU Core
• Maximum frequency: 72 MHz
• DMIPS/MHz: 1.25
• Flash memory: 64 or 128 KB
• SRAM: 20 KB
• Internal RC oscillator: 8 MHz
• Internal RC oscillator: 40 MHz
• PLL for CPU
• RTC clock: 32 kHz
• 7-channel DMA controller
• Peripheral support: Timer, ADC, SPI, I2Cs, and USART
• 7 timers
• Communication protocol: 2*SPI, 3*USART, 2*I2C, 1*CAN, 37*I/O port
• Debug: JTAG / SWD and IAP support
• CRC computation unit
• Model: STM32F103C8T6
• CPU: ARM 32-bit Cortex M3
• Operating voltage: 3.3V
• IO logic voltage: 3.3V
• Digital I/O Pins: 37
• Analog Input Pins: 10 (12bits)
• Flash Memory: 64KB
• RAM: 20KB
• Programmable Clock Speed: 72 MHz (MAX)
• Burning times: 10k cycles
• On-board SWD interface
• ST-LINK V2 programming support
• Immersion gold process
• On-board reset button
• Power indicator LED
• Power supply connector: Micro USB socket
• On-board test indicator LED
• On-board 100ma 3.3V Regulator
• Size: 57mm x 24mm

How to Use STM32F103C8T6 32-Bit ARM Development Board - Clone

1. Connect power through the Micro USB socket.
2. Program the board through the on-board SWD interface or ST-LINK V2.
3. Use the available digital and analog I/O pins for your project.

More Info

• The board includes a reset button and indicator LEDs.
• The board supports beginner programming and testing.
