STM32F0 Discovery Board
$21.9500
In stock
SKU
MIC-02-007
Volume discounts:
- +25 4 % $21.0800
- +50 6 % $20.6500
- +100 8 % $20.2200
- +300 10 % $19.7800
- +500 12 % $19.3500
Product Variations:
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
STM32F3 Discovery Board Previous

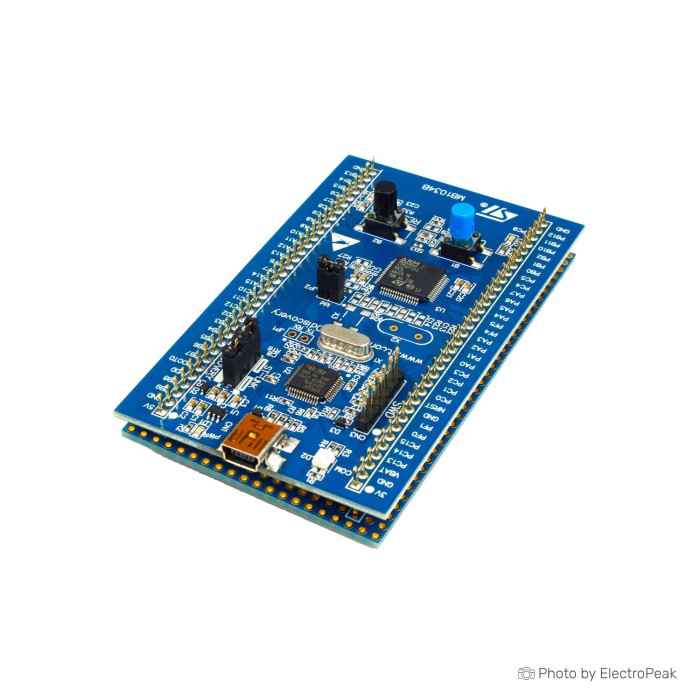

The STM32F0 Discovery Board is a development board for exploring STM32F0 Cortex-M0 features and building applications with the STM32F051R8T6 microcontroller. It includes an embedded ST-LINK/V2 debug tool, LEDs, pushbuttons, and an additional prototyping board for connection of extra components and modules. The board is designed for quick start development and application testing. It provides an extension header for the LQFP64 I/Os and supports easy probing. Power can be supplied through USB bus or an external 5 V supply voltage.
Features of STM32F0 Discovery Board
- STM32F051R8T6 microcontroller
- ARM Cortex-M0 core
- 48 MHz clock speed
- Embedded ST-LINK/V2 debugger
- Standalone ST-LINK/V2 mode
- Additional prototyping board
- Extension header for LQFP64 I/Os
- USB bus power supply
- External 5 V supply support
Specifications of STM32F0 Discovery Board
- STM32F051R8T6 microcontroller
- 64 KB Flash
- 8 KB RAM
- LQFP64 package
- ST-LINK/V2 embedded debug tool
- SWD connector for programming and debugging
- Board power supply through USB bus
- Board power supply from an external 5 V supply voltage
- External application power supply: 3 V
- External application power supply: 5 V
- Extension header for all LQFP64 I/Os
How to Use STM32F0 Discovery Board
- Connect the board through USB bus or an external 5 V supply voltage.
- Use the embedded ST-LINK/V2 tool for programming and debugging.
- Access the LQFP64 I/Os through the extension header for prototyping.
More Info
- Includes LEDs and pushbuttons.
- Includes an additional prototyping board for easy connection of components and modules.
| MCU/SoC | STM32F051R8 |
|---|---|
| Product Family | STM32 Discovery |
| Architecture | ARM Cortex-M0 |
| CPU Cores | 1 |
| Clock Speed (MHz) | 48 MHz |
| Flash | 64 KB |
| SRAM | 8 KB |
| GPIO Pins | 37 |
| SPI interface Pins | 2 |
| I2C interface Pins | 2 |
| UART interface Pins | 2 |
| USB Ports | 1 x Mini-B (ST-LINK interface) |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 10 |
| DAC Channels | 1 (2 channels) |
| Timers Count | Multiple advanced and general-purpose timers |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Wireless | No |
| Input Voltage (V) | Via USB port or external power supply (5V) |
| Antenna Type | No |
| Bluetooth Ver. | No |
