Arduino Nano
$29.9500
In stock
SKU
ARD-01-045
Volume discounts:
- +10 1 % $29.6400
- +25 2 % $29.4900
- +50 2 % $29.3300
- +100 3 % $29.1800
- +300 3 % $29.0200
Product Variations: View out of stock variants
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arduino Mega 2560 R3 Previous

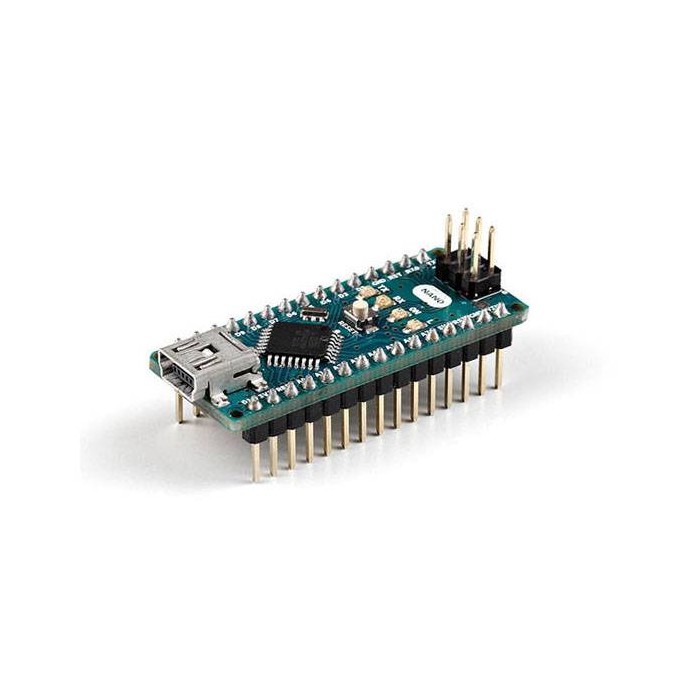

The Arduino Nano is a small and complete board based on the ATmega328 microcontroller. It is designed to fit easily on a breadboard and does not include a DC jack. The board operates through a Mini-USB-B connection and is suited for compact electronic projects. Arduino Nano combines a 5V operating voltage with a practical layout for small builds.
Features of Arduino Nano - ATmega328, 5V, Mini-USB-B
- Breadboard-friendly design
- Mini-USB-B connection
- No DC jack
- Compact board size
- ATmega328 microcontroller
Specifications of Arduino Nano - ATmega328, 5V, Mini-USB-B
- Microcontroller: ATmega328
- Operating Voltage: 5V
- Recommended Input Voltage: 7 to 12V DC (optimal below 9V)
- Input Voltage Range: 6 to 20V DC
- Digital I/O Pins: 14
- PWM Digital I/O Pins: 6
- Analog Input Pins: 6
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB
- BootLoader Flash Memory: 0.5 KB
- SRAM: 2 KB
- EEPROM: 2 KB
- Clock Speed: 16 MHz
- USB Connection Type: Mini-USB-B
How to Use Arduino Nano - ATmega328, 5V, Mini-USB-B
- Connect the board using a Mini-USB-B cable.
- Place the board on a breadboard if needed for your project.
- Use the listed pins and voltage limits for your circuit design.
More Info
- Designed for small and precise projects.
- Works without a DC power jack.
| MCU/SoC | ATmega328 |
|---|---|
| Product Family | Arduino |
| Architecture | AVR |
| CPU Cores | 1 |
| Clock Speed (MHz) | 16 MHz |
| Flash | 32 KB |
| SRAM | 2 KB |
| EEPROM | 2 KB |
| GPIO Pins | 14 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 1 |
| USB Ports | Mini-USB-B |
| Ethernet Support | No |
| ADC Channels | 6 |
| PWM Channels | 6 |
| Operating Voltage (V) | 5V |
| GPIO Voltage (V) | 5V |
| GPIO Current (mA) | 40 mA |
| Wireless | No |
| Form Factor | Nano |
| Input Voltage (V) | 7-12V DC |
| Antenna Type | No |
| Bluetooth Ver. | No |
