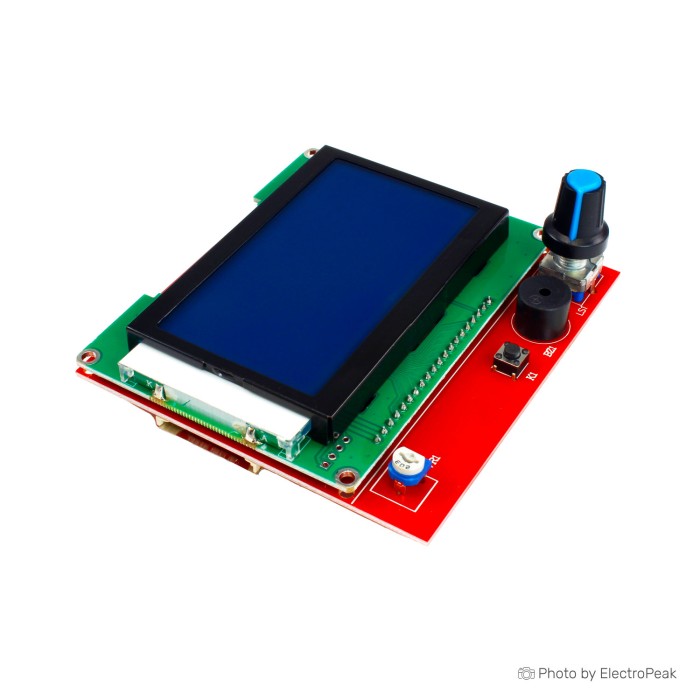

128x64 Full Graphic LCD Smart Controller - RepRap RAMPS Compatible
$9.9500
In stock
SKU
3DP-01-050
Volume discounts:
- +25 5 % $9.4600
- +50 7 % $9.2100
- +100 10 % $8.9700
- +300 12 % $8.7200
- +500 15 % $8.4800
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3D Printer Optical Endstop Switch Module Previous
12864 RepRap LCD Controller Review
The 128x64 Full Graphic LCD Smart Controller is a dedicated local display, rotary encoder knob, and integrated SD card reader for RepRap 3D printers running RAMPS electronics. It lets operators view real-time print status, browse menu settings, adjust print parameters, and launch print jobs directly at the machine. Successful operation depends on matching the wiring pinout, ribbon cable orientation, and firmware configuration to the display profile on your controller board. It is best suited to builders maintaining or expanding a RAMPS-based electronics setup. Matching components are available in our 3D printer electrical parts catalog.
Specifications of 128x64 Full Graphic LCD Smart Controller - RepRap RAMPS Compatible
- Display Type: Full Graphic LCD
- Resolution: 128x64 pixels
- Compatibility: RepRap 3D printers using RAMPS (RepRap Arduino Mega Pololu Shield) electronics
- User Interface: Rotary encoder (knob) and push button for navigation and selection
- Input Voltage: Typically 5V DC (powered from the RAMPS board)
- Communication Interface: Serial communication with the RAMPS board
- SD Card Slot: Integrated SD card slot for standalone printing
- Backlight: Backlit display for enhanced visibility
- Dimensions: 92 x 87 mm
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -10°C to 60°C
- Compatibility: Compatible with various firmware configurations commonly used in RepRap 3D printers, such as Marlin, Repetier, etc.
- Mounting: Typically mounted on the front panel or enclosure of the 3D printer frame for easy access and visibility
RAMPS LCD Compatibility and Marlin Setup
This 12864 LCD controller serves as an operator panel for RepRap 3D printers driven by RAMPS-compatible electronics. It does not contain an independent printer processor. Instead, the 3D printer mainboard drives the screen graphics, monitors the rotary encoder inputs, and handles SD card communication. A working connection requires a compatible host shield, such as a RAMPS 1.4 controller board or an updated RAMPS 1.6 controller board, with a firmware definition that matches the hardware.
In community-standard firmware such as Marlin, enable this display family by uncommenting REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER in Configuration.h. Other popular firmware, including Repetier, also provides display profiles for full-graphic smart panels. Not every display labeled "12864" uses the same electrical layout or controller IC. Modules such as the MKS Mini 12864 and character-based screens use distinct pin routings and firmware flags. If your printer firmware is configured specifically for a character display rather than a graphic panel, the 20x4 LCD Smart Controller for RAMPS 1.4 is a direct character LCD alternative.
Standalone SD printing lets you run pre-sliced G-code stored on an SD card directly from the front panel. That removes the need to keep a computer tethered over USB during a multi-hour print. A host computer is still necessary to run your slicer, write the G-code files, and compile or flash your printer firmware. For detailed pin assignments and Arduino wiring guidance, see our guide on Full Graphic Smart Controller wiring and setup.
| System Area | Compatibility and Requirement |
|---|---|
| Target Mainboard | RepRap printers running RAMPS (Arduino Mega Pololu Shield) electronics. |
| Firmware Support | Requires firmware configured for graphic smart controllers, such as Marlin (REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER) or Repetier. |
| Connection Interface | Connects via dual ribbon headers to the RAMPS board interface. Requires verification of pin 1 orientation. |
| Power Supply | Powered via 5V DC supplied directly through the RAMPS mainboard connection. |
| SD Card Operations | Integrated SD slot handles G-code file reading for standalone execution on configured firmware. |
| Unsupported Systems | Does not provide native touchscreen operation, Wi-Fi networking, direct USB host slicing, or remote webcam streaming. |
12864 LCD Controller Specifications Explained
These hardware parameters help prevent enclosure mismatches and electrical issues during printer assembly.
| Specification | Value | Why It Matters |
|---|---|---|
| Resolution & Type | 128x64 pixels, Full Graphic LCD | Draws bitmap graphics, custom status icons, progress bars, and localized menus rather than fixed character blocks. Requires more processing overhead from the 8-bit Mega MCU than text screens. |
| Interface Controls | Rotary encoder knob with integrated push button | Enables one-handed menu scrolling, value adjustments, and option selection without relying on external keypads or touch layers. |
| Input Voltage | Typically 5V DC | Draws logic and backlight power directly from the 5V rail on the RAMPS shield, avoiding the need for dedicated external display power wiring. |
| Card Reader | Integrated SD card slot | Positions the card reader on the user panel for convenient media swapping, reading pre-sliced print files independently of a tethered PC. |
| Dimensions | 92 x 87 mm | Dictates front-panel cutouts and enclosure clearance. Total assembly depth depends on connector placement and encoder shaft clearance. |
| Backlight | Integrated illuminated display | Maintains legibility in dim workshop environments. Screen readability requires proper software contrast tuning and stable 5V rail voltage. |
| Operating Range | 0°C to 50°C (Storage: -10°C to 60°C) | Covers typical indoor ambient 3D printing conditions. Panels mounted inside fully heated chamber enclosures may exceed rated thermal thresholds. |
For a project that needs minimal firmware memory overhead or simple text-based data instead of graphic progress bars, use the 20x4 LCD Smart Controller for RAMPS 1.4 with builds wired for character-only displays.
RepRap Smart Controller Limitations and Common Mistakes
RepRap smart controller displays have several hardware nuances that can cause setup errors when overlooked during assembly.
A common trap is assuming all displays titled "12864" are pin-compatible drop-in replacements. Graphic displays across the RepRap ecosystem use various driver ICs, including the ST7920 and ST7565/DOGM families, each with specific communication timing and firmware pin assignments. The controller IC used on individual production runs is not stated. Matching your firmware to community-standard RAMPS graphic layouts is therefore critical.
Another frequent issue is an illuminated backlight with no visible text or graphics. This symptom is rarely a dead panel; it most frequently points to reversed IDC ribbon cables, an uncalibrated contrast potentiometer, or an incorrect display definition in firmware. The polarized plastic shroud on display connectors does not always match every breakout board's notch orientation. Check pin 1 markings on both the RAMPS smart adapter and the LCD panel before applying power to prevent communication errors.
SD card compatibility also needs careful checking. The integrated card slot communicates across the ribbon interconnects. Long unshielded ribbon cables, dirty socket contacts, or oversized card capacities formatted outside standard FAT file structures can result in initialization failures. If the rotary knob scrolls menus in reverse, Marlin lets you invert the encoder direction flag in your configuration file without modifying the physical wiring.
Package contents can vary across production batches, and inclusion of the RAMPS smart adapter board or ribbon cables is not confirmed for this unit. Verify that you have the required breakout adapter and ribbon cables before starting your build. For full pinout analysis and board traces, review our guide to Full Graphic Smart Controller wiring and setup.
Pre-Purchase Verification Checklist
- Mainboard compatibility: Confirm your printer uses a RAMPS 1.4/1.6 or compatible header layout.
- Firmware readiness: Ensure you can edit and flash your firmware with full-graphic smart controller support enabled.
- Hardware adapter: Confirm whether your existing setup includes the required RAMPS smart adapter and dual 10-pin ribbon cables.
- Physical clearance: Allow for the 92 x 87 mm outer board profile plus rear clearance for the ribbon connectors and SD card insertion.
12864 Full Graphic LCD vs 20x4 RAMPS Smart Controller
The choice between a 128x64 full-graphic panel and a 20x4 character panel comes down to interface presentation, firmware configuration, and personal preference on an 8-bit RAMPS platform.
The 128x64 Full Graphic LCD uses a dot-matrix screen to render custom graphical icons, proportional progress bars, and multi-line visual menus. It can render nozzle, bed, and fan visual indicators on a single status screen in real time. In contrast, the 20x4 LCD Smart Controller for RAMPS 1.4 presents information across four lines of twenty alphanumeric characters. The character controller requires slightly less processing time from the microcontroller and occupies less flash memory in Marlin firmware.
Both models use rotary encoder navigation and an integrated SD card slot for local printing without a connected computer. Their display drivers in firmware are entirely different. Swapping one panel for the other requires reconfiguring your firmware settings, such as changing from REPRAP_DISCOUNT_SMART_CONTROLLER to REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER, and reflashing your Arduino Mega board. Neither screen is inherently superior; choose the format that matches your available firmware memory and visual layout preferences.
RAMPS LCD Accessories and First Test
Integrating this display requires complementary electronics for a functional 3D printer control system. The panel handles user interaction. The underlying electronics drive motion control and heating.
Required System Components
- RAMPS Controller Board: Requires a host shield such as the RAMPS 1.4 controller board or RAMPS 1.6 controller board seated onto an Arduino Mega.
- Configured Printer Firmware: Marlin, Repetier, or equivalent firmware configured with graphic LCD support enabled.
- Smart Adapter and Ribbon Cables: Dual 10-pin IDC ribbon cables and a RAMPS LCD adapter board (inclusion with this panel is unconfirmed; verify before assembly).
- Printer Power Supply: A dedicated 12V or 24V supply providing power to the RAMPS shield, which steps down 5V logic power to the display.
Recommended & Optional Additions
- SD Card: A standard FAT-formatted SD card containing sliced G-code files for standalone operation.
- Mounting Hardware: A printed front bezel or enclosure designed around the 92 x 87 mm board dimensions.
- Stepper Drivers (Motion System): When assembling a complete RAMPS board, quiet stepper drivers such as the TMC2208 V1.2 stepper driver module or TMC2208 V3.0 stepper driver module can be installed into the mainboard driver sockets.
First-Time Testing Sequence
- Disconnect main power and USB cables from the printer mainboard before attaching wiring.
- Inspect the display connectors and adapter board, identifying pin 1 markings on both ends of the ribbon cables.
- Connect the ribbon cables between the adapter board headers (EXP1 and EXP2) and the matching display sockets.
- Flash your RAMPS board firmware with
REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLERenabled. Consult our guide on Full Graphic Smart Controller wiring and setup for step-by-step pin references. - Power up the mainboard. The display backlight should illuminate, followed by the firmware status screen graphics.
- Rotate and click the rotary encoder knob to verify that the menu cursor moves smoothly and menu selections register.
- Insert an SD card loaded with sliced G-code to confirm that the firmware detects the media and populates the file list.
12864 RepRap LCD Controller FAQ and Buying Checklist
Will this 12864 RAMPS LCD work with RAMPS 1.4?
Yes. This display is designed for RepRap 3D printers using RAMPS electronics, including RAMPS 1.4 and 1.6 boards. Operation requires a compatible smart adapter board, correct ribbon cable orientation, and the appropriate graphic LCD profile enabled in your printer firmware.
Do I need to configure Marlin for this RepRap smart controller?
Yes, Marlin must be configured and uploaded to your mainboard. In Configuration.h, uncomment the REPRAP_DISCOUNT_FULL_GRAPHIC_SMART_CONTROLLER definition and ensure the appropriate display libraries, such as U8glib, are installed in your build environment.
Can this 12864 LCD controller print from an SD card without a computer connected?
Yes, the integrated SD card reader lets you execute print jobs directly from pre-sliced G-code stored on the card. A computer is still required to slice 3D models into G-code files and flash firmware updates to the printer mainboard.
Are the smart adapter and ribbon cables included?
Package contents are not confirmed for this item. Complete kits sometimes package an adapter and ribbon cables together, but you should verify current package inclusions before ordering or provide your own compatible cables and RAMPS adapter.
Does every 12864 LCD work with every board that has EXP connectors?
No. Panels labeled 12864 vary significantly in driver ICs, pin mapping, logic voltages, and connector polarities. Modules such as the MKS Mini 12864 or BTT displays use different configurations and are not direct plug-and-play matches for standard RAMPS graphic wiring.
Why is the backlight on but there is no text on the screen?
A lit screen without text usually indicates reversed ribbon cables, an incorrect firmware display selection, or an unadjusted contrast trimmer. Check your pin 1 alignment and adjust the onboard contrast potentiometer before assuming the hardware is faulty.
What is the difference between this full-graphic controller and the 20x4 RAMPS smart controller?
This controller has a 128x64 dot-matrix display that renders graphical progress bars, icons, and menus. The 20x4 controller uses a text-only LCD with four lines of alphanumeric characters. They require different firmware settings and cannot be swapped without reconfiguring your software.
Is this a touchscreen, Wi-Fi controller, or standalone printer controller?
No. This is a local monochrome graphic screen with a manual rotary encoder and SD reader. It does not include touchscreen capabilities, onboard Wi-Fi, camera streaming, or print-slicing processors.
Purchase Decision Summary
- Ideal for: Builders and owners of RepRap printers with RAMPS 1.4 or 1.6 boards who want a local graphical interface and standalone SD-card job launching.
- Maybe for: DIY machine creators building custom CNC or plotting rigs who are comfortable configuring Marlin or Repetier and verifying cable pinouts independently.
- Consider another option if: Your controller requires an MKS Mini 12864, your build depends on touchscreen interaction, you need remote Wi-Fi monitoring, or you prefer a text-only interface such as the 20x4 controller option.
Buying Checklist
- ✓ My printer mainboard is a RAMPS 1.4, RAMPS 1.6, or compatible electronics shield.
- ✓ I have the tools to edit and flash printer firmware (e.g., Marlin or Repetier).
- ✓ I have verified whether my installation requires purchasing a separate RAMPS smart adapter and ribbon cables.
- ✓ I have checked that my physical frame or enclosure accommodates the 92 x 87 mm panel dimensions.
- ✓ I prefer a rotary encoder and full-graphic display over a text-only character screen.
- ✓ My workflow uses standalone SD-card G-code execution rather than built-in Wi-Fi or touchscreen control.
| Model | 12864 |
|---|---|
| Platform | RAMPS, RepRap |
| Display Resolution | 128x64 pixels |
| Display Driver | ST7920 |
| Display Interface | Parallel, SPI |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | Blue LED |
| Operating Temp (°C) | 0°C to 50°C |
| Operating Voltage (V) | 5V |
| Pins | 20 |
| Dimensions (mm) | 12.5 x 70 x 78 mm; 92 x 87 mm |
