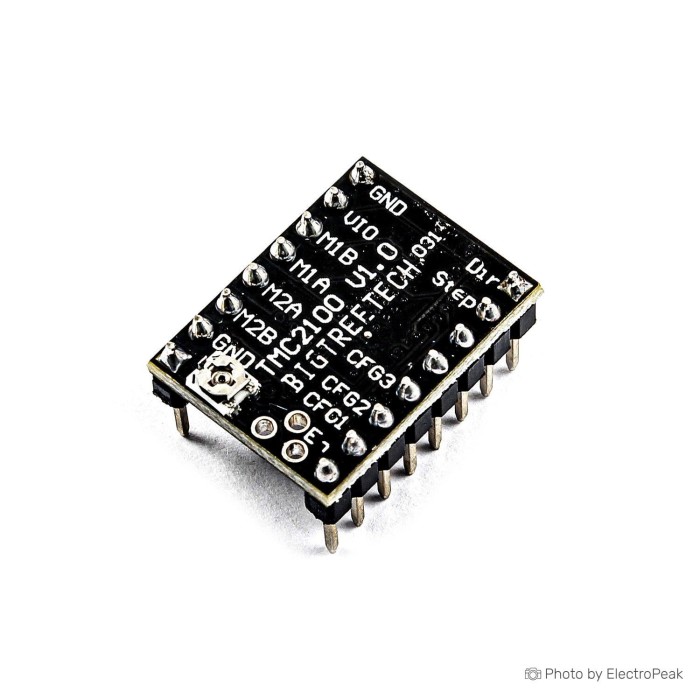

The TMC2100 Stepper Motor Driver is a standalone driver for two-phase stepper motors. It uses the TMC2100 integrated circuit and operates through Step and Dir signals. The module supports micro-stepping and standstill current reduction for energy saving. It is designed for bipolar stepper motor drive and includes protection and diagnostic features for reliable operation. The package includes one module and a heat sink.
Features of TMC2100 Stepper Motor Driver
- Standalone stepper motor driver
- Two-phase motor support
- Step and Dir control
- Integrated micro-stepping indexer
- Standstill current reduction
- Protection and diagnostic features
- Heat sink included
Specifications of TMC2100 Stepper Motor Driver
- Axis: 1
- Motor supply voltage: 5-46V
- Microstep: 1-256
- Phase current: 1.2A
- Can drive up to 1.2A (RMS) continuously
- Motor supply voltage: 5.5V - 45V
- Logic voltage: 3.3V - 5V
- Compatible pinout with A4988 and DRV8825
- Configured via CFG pins
- Current calibration: Irms = (Vref * 1.77A) / 2.5V
- Current calibration: Vref = (Irms * 2.5V) / 1.77A
- Default current: 0.5A
- Vref: about 0.65V
- Operating temperature: 70 degrees at about 0.5A
- Operating temperature: more than 150 degrees at 1A
How to Use TMC2100 Stepper Motor Driver
- Connect the module to the stepper motor and power supply.
- Use the Step and Dir signals for control.
- Set the desired microstep and current configuration through the CFG pins and Vref.
More Info
- The module supports quiet operation with StealthChop.
- Spread cycle is included.
- The package includes one module and a heat sink.
