RepRap Ramps 1.4 3D Printer Controller Board
$2.5900
In stock
SKU
3DP-01-075
Volume discounts:
- +25 5 % $2.4700
- +100 7 % $2.4100
- +300 10 % $2.3400
- +500 12 % $2.2800
- +1000 14 % $2.2200
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
20x64 Full Graphic LCD Smart Controller - RepRap RAMPS Compatible Previous

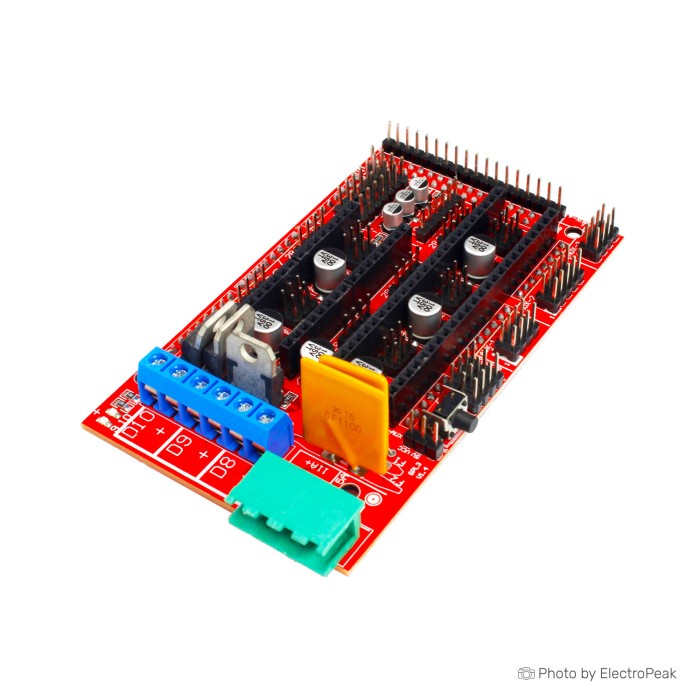

The RepRap Ramps 1.4 3D Printer Controller Board is an Arduino Mega 2560 shield for 3D printer and three-axis CNC control. It provides a modular electronics platform for RepRap-style systems and supports expansion through additional boards. The board is designed to work with stepper driver modules and external control electronics on an Arduino Mega shield format. It also includes support for peripherals and expansion interfaces commonly used in electronics and robotics projects. The control board offers multiple outputs and inputs for motion, temperature, and accessory management.
Features of RepRap Ramps 1.4 3D Printer Controller Board
- Arduino Mega 2560 shield interface
- 5 independent stepper driver outputs
- Supports Pololu A4988 and DRV8825 drivers
- Dual Z motor support
- 6 endstop inputs
- 3 thermistor inputs
- 3 MOSFET PWM outputs
- 5A and 11A resettable fuses
- LCD, servo, fan, and expansion support
- SPI and I2C connection support
Specifications of RepRap Ramps 1.4 3D Printer Controller Board
- Compatible with Arduino Mega 2560
- 5 independent outputs for stepper motor drivers
- 3 axes and 2 extruders
- Compatible with Pololu A4988 drivers
- Compatible with DRV8825 drivers
- Supports 2 motors for the Z axis
- 6 endstop inputs
- 3 thermistor inputs
- 3 MOSFET PWM outputs
- 5A resettable fuses
- 11A resettable fuses
- LCD connector support
- Servo connector support
- Fan support
- Expansion board support
- SPI interface
- I2C interface
- Heater output LED indication
- SD card add-on support
- Gold-plated servo type connectors
- 3A rated current for connectors
How to Use RepRap Ramps 1.4 3D Printer Controller Board
- Mount the board on an Arduino Mega 2560.
- Install the required stepper driver modules and connect the needed peripherals.
- Connect endstops, thermistors, motors, and outputs as needed for the system.
More Info
- Designed for 3D printers and three-axis CNC systems.
- Kept at the top of the stack when adding expansion boards.
- Supports easy service, replacement, upgrade, and expansion.
| Platform | Arduino Mega |
|---|---|
| Interface Type | I2C, SPI |
| Operating Voltage (V) | 12V |
| Operating Temp (°C) | 0 to 70 |
| Dimensions (mm) | 101.5 x 60.5 mm |
| Mounting Type | Screw holes |
| Control Type | MOSFET |
| Channel Count | 5 |
| Switching Capacity | 5A, 11A |
| Control Signal | PWM |
| Chipset | RAMPS 1.4 |
| Display Type | LCD |
| Material | PCB |
| Input Type (AC/DC) | DC |
