3D Printer Optical Endstop Switch Module
$0.6400
In stock
SKU
3DP-01-042
Volume discounts:
- +50 5 % $0.6100
- +100 6 % $0.6000
- +300 8 % $0.5900
- +500 11 % $0.5700
- +1000 13 % $0.5600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3D Printer Mechanical Endstop Switch Module v1.4 Previous

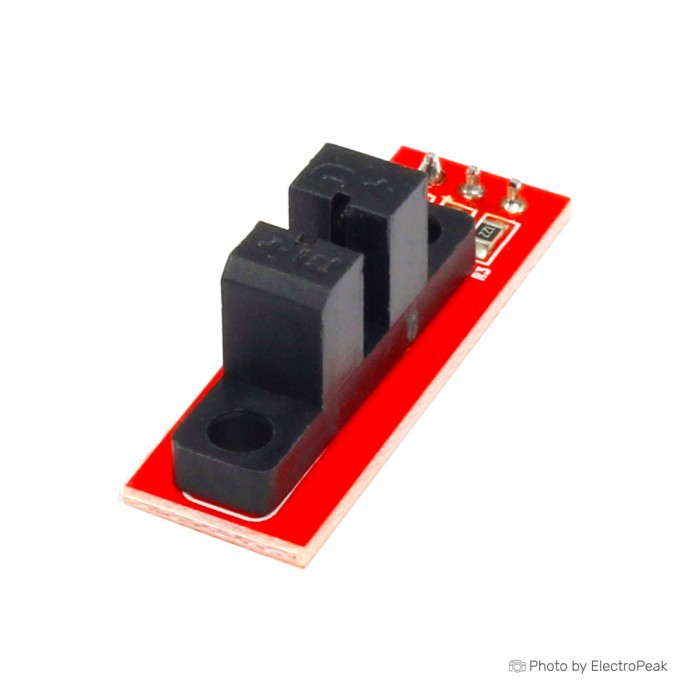

3D Printer Optical Endstop Switch Module is a light-based end stop module for position detection and motion limiting in 3D printer and CNC systems. It uses optical switching without mechanical parts, helping provide friction-free operation and longer service life. The module supports both normally open and normally closed operation. It is designed for use as an end stop on moving axes and comes with a special cable for easier installation. The module is also described for RepRap RAMPS 1.4 and can be used in 3D printer and CNC machine applications.
Features of 3D Printer Optical Endstop Switch Module - 70cm, 22AWG
- Optical motion detection
- No mechanical parts
- Normally open and normally closed modes
- End stop function for moving axes
- Special cable included
Specifications of 3D Printer Optical Endstop Switch Module - 70cm, 22AWG
- Size: 33.02 x 10mm
- Cable Length: 70cm
- Cable Wire: 22AWG
- Cable Current: 2A
- Cable Voltage: 300V
- Cable Temperature range: 80°
How to Use 3D Printer Optical Endstop Switch Module - 70cm, 22AWG
- Connect the module to the controller board.
- Install it as an end stop on the required axis.
- Set the operating mode to normally open or normally closed.
More Info
- Suitable for 3D printer and CNC axis position detection.
- Acts as a limiter to help prevent out-of-limit motion.
- Designed for RepRap RAMPS 1.4 and similar applications.
| Operating Voltage (V) | 5V |
|---|---|
| Output Type | Digital |
| Qty | 1 |
| Sensor Type | Infrared Opto-counter |
| Output Interface | Digital |
| Application | 3D Printers, CNC Machines, DIY Projects |
