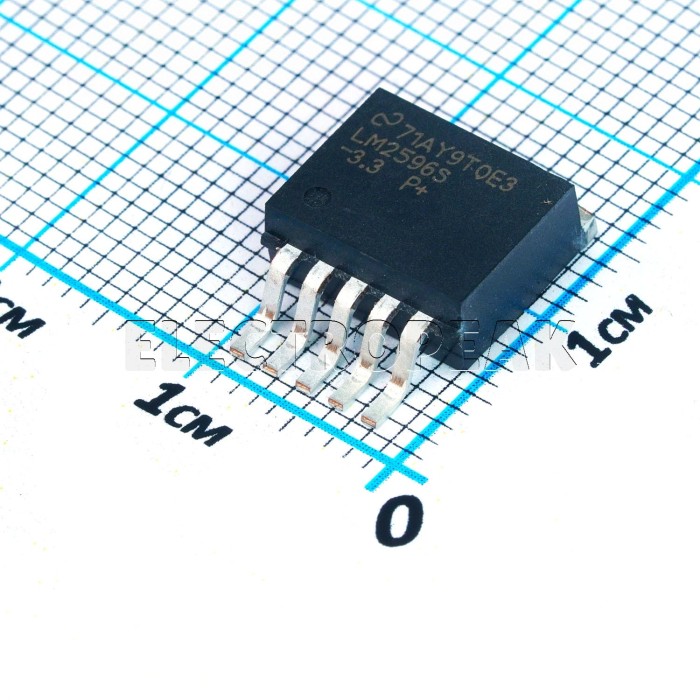

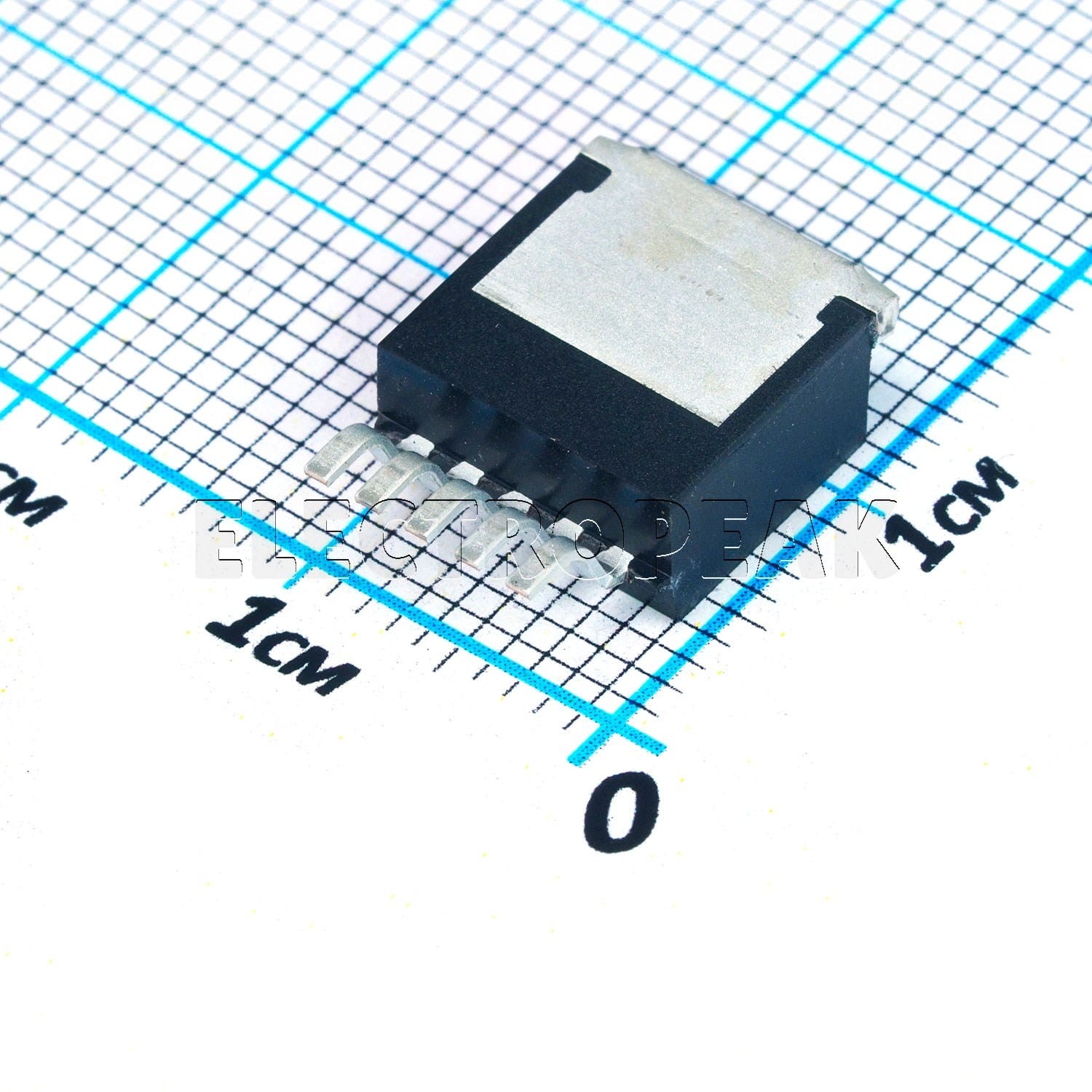

LM2596S-3.3V, Switching Voltage Regulator, TO-263-5 (D2PAK-5)
$0.1450
In stock
SKU
S1-0054
Volume discounts:
- +100 4 % $0.1390
- +500 6 % $0.1360
- +1000 8 % $0.1340
- +5000 10 % $0.1310
- +10000 12 % $0.1280
LM2596S-3.3V, Switching Voltage Regulator, TO-263-5 (D2PAK-5) is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
XL1509-3V3, LDO Voltage Regulator, SOP8
Previous
The LM2596S-3.3 is a step-down (Buck) regulator from the SIMPLE SWITCHER® series, capable of delivering up to 3A output current with excellent line and load regulation. This regulator is designed with a fixed output voltage of 3.3V and comes in a TO-263-5 (D2PAK-5) package. Requiring a minimal number of external components, it is simple to use and includes internal frequency compensation and a fixed-frequency oscillator operating at 150 kHz.
Specifications of LM2596S-3.3 Fixed 3.3V Step-Down Voltage Regulator IC:
- Input Voltage: 4.5V to 40V
- Output Voltage: Fixed 3.3V
- Output Current: Up to 3A
- Switching Frequency: 150 kHz
- Quiescent Current: 80 µA in standby mode
- Efficiency: High
- Operating Temperature: -40°C to 125°C
- Package: TO-263-5 (D2PAK-5)
| Package | TO-263-5 (D2PAK-5) |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Function | Inverting, Step-Down |
| Mounting Type | SMD/SMT |
| Components - Type | Switching Voltage Regulators |
