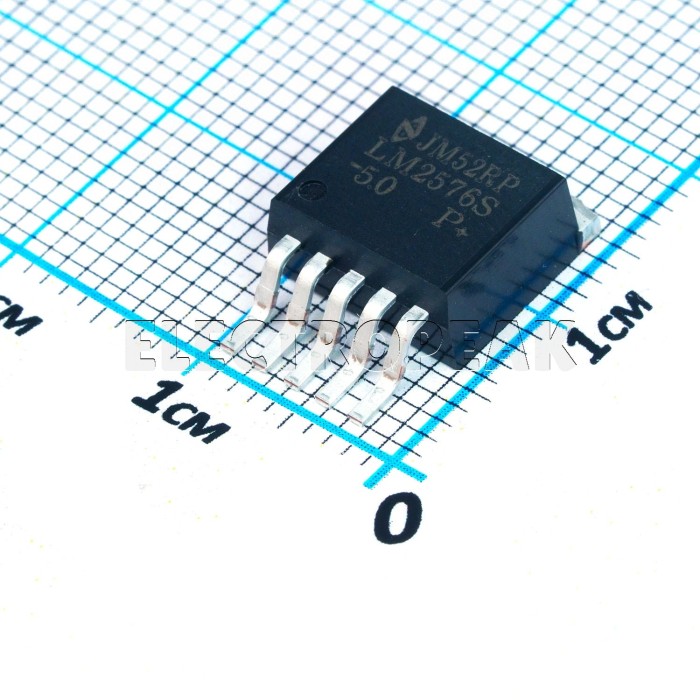

LM2576S-5.0, Switching Voltage Regulator, TO-263-5 (D2PAK-5) - Pack of 10
[S1-0055]
Volume discounts:
- +100 7 % $1.39
- +300 9 % $1.36
- +500 12 % $1.32
- +1000 15 % $1.28
Shop with confidence
Learn More
Availability:
SKU
S1-0055
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$1.50
The LM2576S-5.0 is a step-down (Buck) regulator from the SIMPLE SWITCHER® series, capable of delivering up to 3A output current with excellent line and load regulation. This regulator is designed with a fixed output voltage of 5V and comes in a TO-263-5 (D2PAK-5) package. Requiring a minimal number of external components, it is simple to use and includes fault protection and a fixed-frequency oscillator operating at 52 kHz.
Specifications of LM2576S-5.0 Fixed 5V Step-Down Voltage Regulator IC
- Input Voltage: 4V to 40V
- Output Voltage: Fixed 5V
- Output Current: Up to 3A
- Switching Frequency: 52 kHz
- Quiescent Current: 5 mA
- Efficiency: High
- Operating Temperature: -40°C to 125°C
- Package: TO-263-5 (D2PAK-5)
| Package | TO-263-5 (D2PAK-5) |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Function | Inverting, Step-Down |
| Mounting Type | SMD/SMT |
| Components - Type | Switching Voltage Regulators |
