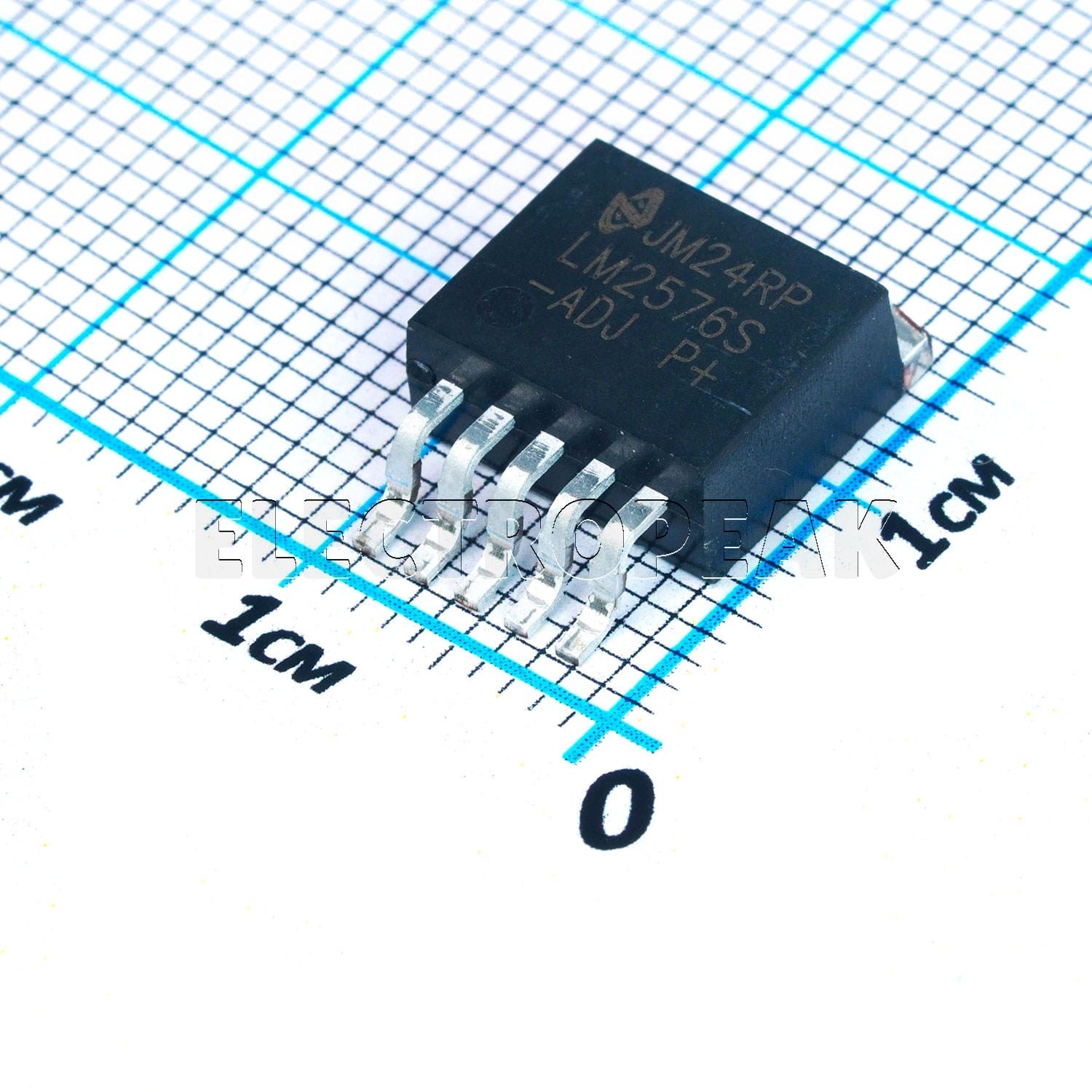

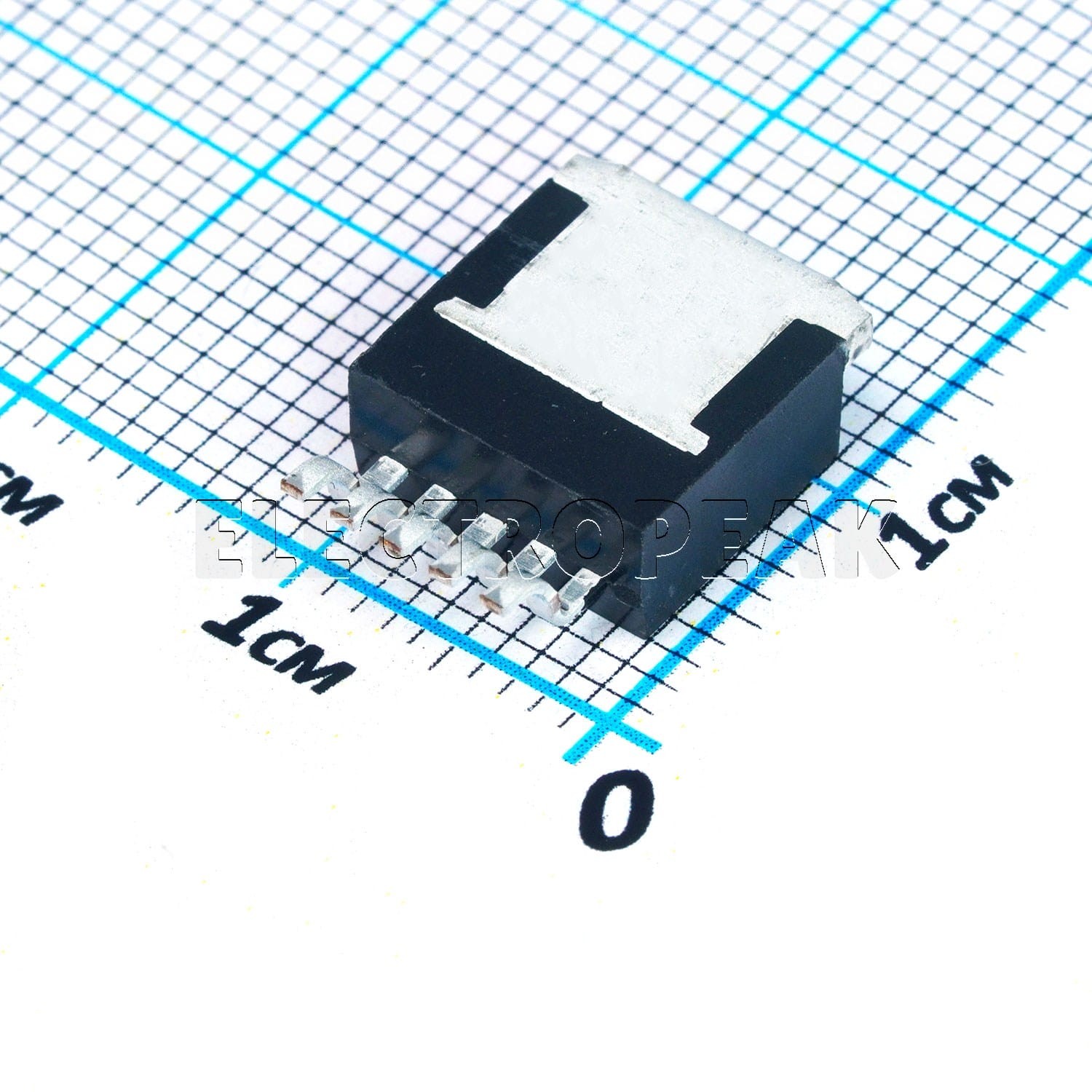

LM2576S-ADJ, Switching Voltage Regulator, TO-263-5 (D2PAK-5)
[S1-0056]
Volume discounts:
- +100 4 % $0.1150
- +500 6 % $0.1130
- +1000 8 % $0.1110
- +5000 9 % $0.1090
- +10000 12 % $0.1060
Shop with confidence
Learn More
Availability:
SKU
S1-0056
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.1200
LM2576S-ADJ, Switching Voltage Regulator, TO-263-5 (D2PAK-5) is available to buy in increments of 10
The LM2576S-ADJ is a step-down (Buck) regulator from the SIMPLE SWITCHER® series, capable of delivering up to 3A output current with excellent line and load regulation. This regulator is designed with an adjustable output voltage ranging from 1.23V to 37V and comes in a TO-263-5 (D2PAK-5) package. Requiring a minimal number of external components, it is simple to use and includes fault protection and a fixed-frequency oscillator operating at 52 kHz.
Specifications of LM2576S-ADJ Adjustable Step-Down Voltage Regulator IC
- Input Voltage: 4V to 40V
- Output Voltage: Adjustable from 1.23V to 37V
- Output Current: Up to 3A
- Switching Frequency: 52 kHz
- Quiescent Current: 5 mA
- Efficiency: High
- Operating Temperature: -40°C to 125°C
- Package: TO-263-5 (D2PAK-5)
| Package | TO-263-5 (D2PAK-5) |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Function | Inverting, Step-Down |
| Mounting Type | SMD/SMT |
| Components - Type | Switching Voltage Regulators |
