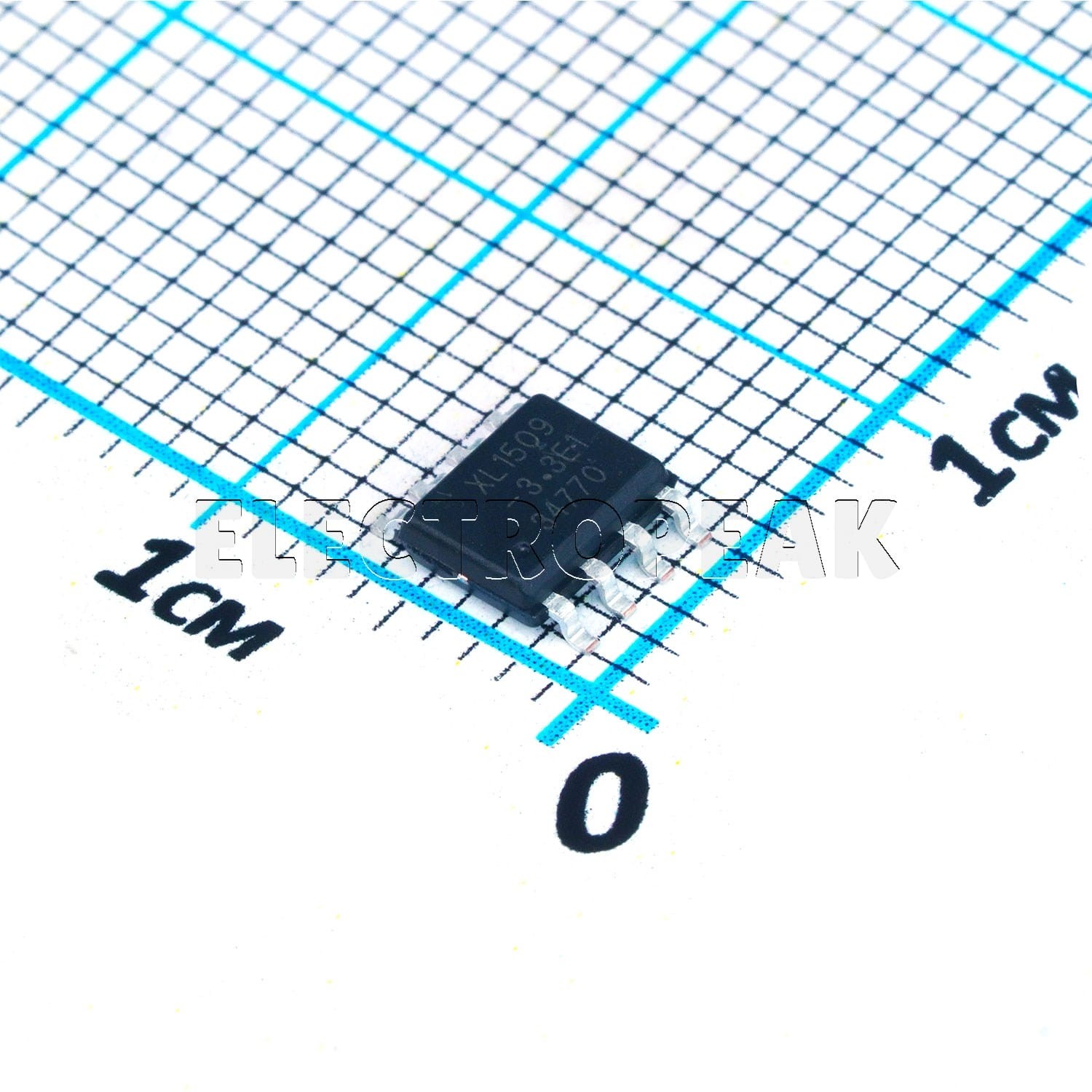

XL1509-3V3, LDO Voltage Regulator, SOP8
$0.1500
In stock
SKU
S1-0063
Volume discounts:
- +100 7 % $0.1400
- +10000 13 % $0.1300
XL1509-3V3, LDO Voltage Regulator, SOP8 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XL1509-5V0, LDO Voltage Regulator, SOP8 Previous
The XL1509-3V3 is a buck converter IC with a fixed 3.3V output and an SOP8 package. It accepts an input voltage range of 4.5V to 40V and provides a 2A output current. The switching frequency is 150kHz. This XL1509-3V3 buck converter IC is suitable for ADSL modems, monitors and LCDs, digital receivers, and internet networks.
Features of XL1509-3V3 Buck Converter IC - 3.3V, 2A, SOP8
- Fixed 3.3V output
- 2A output current
- 150kHz switching frequency
- SOP8 package
- High efficiency
- Low ripple
- Line regulation
- Load regulation
Specifications of XL1509-3V3 Buck Converter IC - 3.3V, 2A, SOP8
- Input voltage: 4.5V to 40V
- Output voltage: 3.3V fixed
- Output current: 2A constant
- Switching frequency: 150kHz
- Package: SOP8
- Features: High efficiency
- Features: Low ripple
- Features: Line and load regulation
How to Use XL1509-3V3 Buck Converter IC - 3.3V, 2A, SOP8
- Provide an input voltage within the 4.5V to 40V range.
- Use the fixed 3.3V output for the intended circuit.
More Info
- Buck converter type
- Used in ADSL modems, monitors and LCDs, digital receivers, and internet networks
| Package | SOP8 |
|---|---|
| Packaging | Tape & Reel |
| Mounting Type | SMD/SMT |
| Components - Type | LDO Voltage Regulators |
