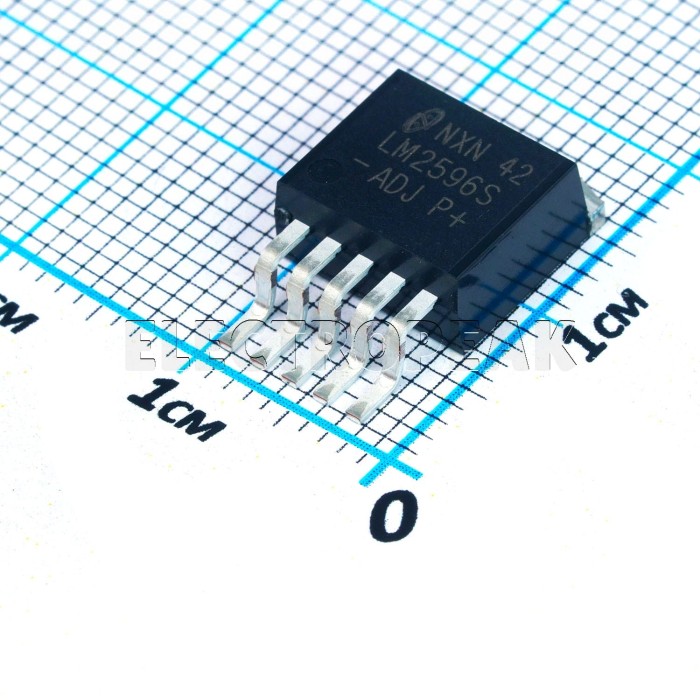

LM2596S-ADJ, Switching Voltage Regulator, TO-263-5 (D2PAK-5)

[S1-0058]
Volume discounts:
  • +100 4 % $0.1150
  • +500 6 % $0.1130
  • +1000 8 % $0.1110
  • +5000 10 % $0.1080
  • +10000 12 % $0.1060
Shop with confidence Learn More
Availability: 15130 items
SKU
S1-0058
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.1200
LM2596S-ADJ, Switching Voltage Regulator, TO-263-5 (D2PAK-5) is available to buy in increments of 10

The LM2596S-ADJ is a step-down (Buck) regulator from the SIMPLE SWITCHER® series, capable of delivering up to 3A output current with excellent line and load regulation. This regulator is designed with an adjustable output voltage ranging from 1.2V to 37V and comes in a TO-263-5 (D2PAK-5) package. Requiring a minimal number of external components, it is simple to use and includes internal frequency compensation and a fixed-frequency oscillator operating at 150 kHz.

Specifications of LM2596S-ADJ Adjustable Step-Down Voltage Regulator IC

  • Input Voltage: 4.5V to 40V
  • Output Voltage: Adjustable from 1.2V to 37V
  • Output Current: Up to 3A
  • Switching Frequency: 150 kHz
  • Quiescent Current: 80 µA in standby mode
  • Efficiency: High
  • Operating Temperature: -40°C to 125°C
  • Package: TO-263-5 (D2PAK-5)
More Information
Package TO-263-5 (D2PAK-5)
Packaging Tape & Reel
Operating Temperature Min -40 C°
Operating Temperature Max +125 C°
Function Inverting, Step-Down
Mounting Type SMD/SMT
Components - Type Switching Voltage Regulators
