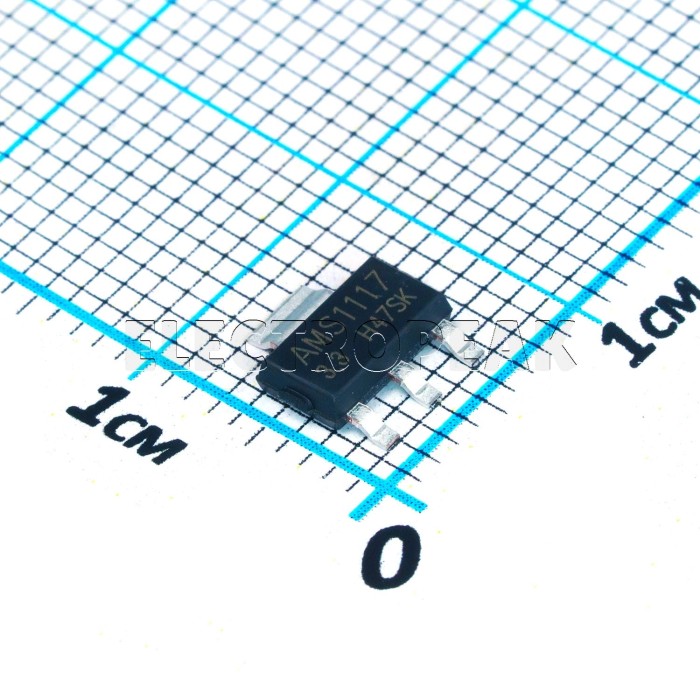

AMS1117-3.3, LDO Voltage Regulator, SOT-223
$0.0500
In stock
SKU
S1-0059
Volume discounts:
- +500 4 % $0.0480
- +1000 6 % $0.0470
- +5000 8 % $0.0460
- +10000 10 % $0.0450
- +20000 12 % $0.0440
AMS1117-3.3, LDO Voltage Regulator, SOT-223 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM2596S-ADJ, Switching Voltage Regulator, TO-263-5 (D2PAK-5) Previous
The AMS1117-3.3 is a low dropout (LDO) linear voltage regulator with a fixed 3.3V output. It can supply up to 1A of output current and comes in an SOT-223 package. This LDO voltage regulator is suitable for linear power regulation and battery charger designs. The AMS1117-3.3 offers a maximum 1.3V dropout voltage at 1A. It also features an 80 µA quiescent current in standby mode.
Features of AMS1117-3.3 LDO Voltage Regulator - SOT-223, 3.3V, 1A
- Fixed 3.3V output
- Up to 1A output current
- Low dropout operation
- SOT-223 package
- 80 µA standby quiescent current
Specifications of AMS1117-3.3 LDO Voltage Regulator - SOT-223, 3.3V, 1A
- Input Voltage: Up to 12V
- Output Voltage: Fixed 3.3V
- Output Current: Up to 1A
- Dropout Voltage: Maximum 1.3V at 1A
- Quiescent Current: 80 µA in standby mode
- Package: SOT-223
How to Use AMS1117-3.3 LDO Voltage Regulator - SOT-223, 3.3V, 1A
- Connect the input voltage within the specified limit.
- Use the fixed 3.3V output for the target circuit.
- Mount the device in the SOT-223 package footprint.
More Info
- AMS1117-3.3 is a linear voltage regulator IC.
- Suitable for high-efficiency linear regulator and battery charger applications.
| Package | SOT-223 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +125 C° |
| Polarity | Positive Type |
| Mounting Type | SMD/SMT |
| Components - Type | LDO Voltage Regulators |
