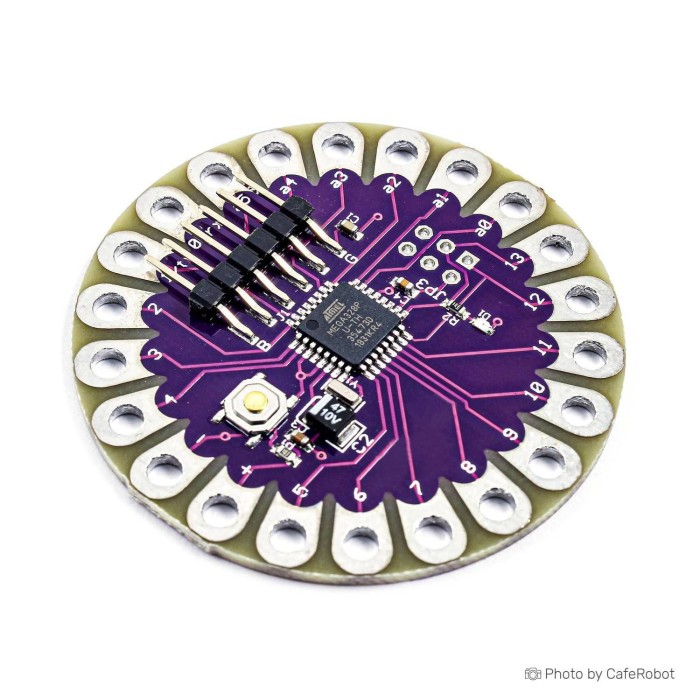

LilyPad Arduino 328 Main Board (Clone)
$3.5000
In stock
SKU
ARD-01-016
Volume discounts:
- +25 4 % $3.3600
- +100 6 % $3.2900
- +300 8 % $3.2200
- +500 10 % $3.1500
- +1000 12 % $3.0800
Product Variations:
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Arduino Pro Micro (Clone)
Previous
Description
The LilyPad Arduino 328 Main Board is an Arduino-programmed microcontroller designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package designed to minimize snagging and profile, with wide tabs that can be sewn down and connected with conductive thread.
The LilyPad Arduino consists of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).
LilyPad is a wearable e-textile technology developed by Leah Buechley. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available.Â
Features
Microcontroller: ATmega328V
Operating Voltage: 5V
Input Voltage: 2.7-5.5 V
Digital I/O Pins: 14
PWM Channels: 6
Analog Input Channels: 6
DC Current per I/O Pin: 40 mA
Flash Memory: 16 KB (of which 2 KB used by bootloader)
SRAM: 1 KB
EEPROM: 512 bytes
Clock Speed: 8 MHz
