Make a Digital Multimeter with Arduino

Overview

The multimeter is an indispensable tool for any electronics project, as it helps overcome countless challenges during project completion. This article will demonstrate how to create a cost-effective digital multimeter using an Arduino board and an OLED display. This multimeter is capable of measuring voltage, current, resistance, and capacitance. Upon completing the project, you will have your own multimeter at the lowest possible cost.

What You Will Learn

What Is A Multimeter?

In simple words, a multimeter is a device that converts electrical parameters such as voltage, current and so on to a language we can understand. First prototypes of this widely used device (called galvanometer) were created in 1820. Despite being only capable of measuring current, they became an essential part of any electronics projects. Knowing how to use a multimeter is essential for any electronics project

Multimeters are generally categorized as analog and digital. Analog multimeters use physical pointers to display values and are being used less and less. However, digital multimeters benefit from digital displays and are much more popular.

  • An analog multimeter:
  • A digital multimeter:

What Parameters Does A Multimeter Measure?

Multimeters measure various parameters. However, the most important ones are voltage, current and, resistance. Other parameters include capacitance, self-inductance, frequency, diode test, connectivity test, brightness, transistor test and, so on.

For this project, we will make a multimeter that can measure voltage, current, resistance and capacitance.

Measuring the Electrical Voltage

Various methods exist for measuring the voltage, such as using the hall effect, the simplest one is the voltage divider.

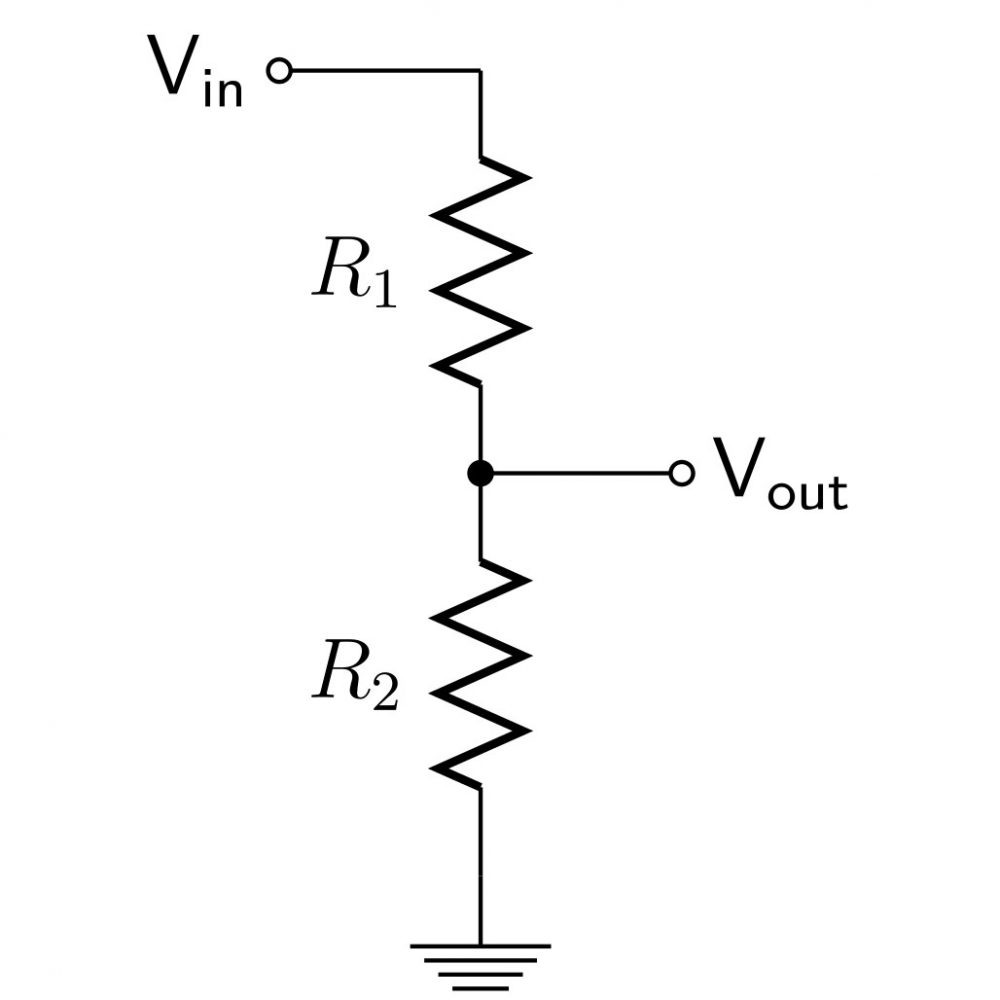

The voltage divider is a circuit that puts a fraction of the voltage between two resistors.

Now if we know the R1 and R2 resistance and the Vout values, we can easily calculate the voltage using the above formula.

Measuring the Electrical Current

The simplest method for measuring the current is using Ohm’s law. This law states the electrical current in a path is directly proportional to the voltage divided by the resistance in that path.
Another technique for measuring the current is using the hall-effect principle. The passing of the electrical current creates a magnetic field and consequently the hall voltage. By measuring the hall voltage, you can calculate the magnetic field intensity and therefore the passing electrical current.

Measuring the Resistance

The same voltage divider technique can be used to measure the resistance. The only difference compared to measuring the voltage is that here, we know the input voltage, the resistance of R1 and the output voltage. R2 is the unknown variable.

Measuring the Capacitance

An effective method for measuring the capacitance is the capacitor charge and discharge rule.
Below you can find the charging time for a capacitor.

It takes a specific amount of time for the capacitor to charge to 63.2%. This is calculated using the following formula:

τ^(second)=R×C

So if we know the resistance and the time it takes for the capacitor to charge to 63.2% of its capacitance, we can calculate the capacitance.

Required Materials

Hardware Components

Arduino UNO R3 × 1
0.96" I2C OLED Display Module × 1
AC712 5A Current Sensor × 1
Resistor 1k × 1
Resistor 10k × 2
Resistor 100k × 1
Resistor 4.7k × 1
Resistor 220 × 1
Male to Female Jumper Wire × 1
Micro Push Button Switch 5x6x6mm - 10 Pack × 1

Software Apps

Arduino IDE

Making a Digital Multimeter Using Arduino

Making this multimeter includes 5 steps:

Step 1: Making the Voltmeter

We use the voltage divider technique for the voltmeter. We need the Arduino’s ADC unit to read the voltage.

Circuit

Here we have used 10 and 4.7 kilo-ohm resistors for the voltage division circuit. Connect the wires according to the following diagram.
Warning
Since the input voltage for Arduino’s ADC is 5 volts, selecting these resistors will allow the measuring of voltages up to 15 volts. Higher voltages could damage your Arduino board.
By changing the resistors you can change the range of acceptable input voltages. The higher the input voltage, the lower the accuracy will be.
Note
The voltmeter should be in parallel to the section for measuring its voltage.

Code

Upload the following code to your Arduino and view the results in the Serial Monitor window.
/*
  Voltmeter with Arduino
   modified on 21 Jul 2019
  by Saeed Hosseini @ Electropeak

Home
*/ const int VoltMeter = 2; float V = 0.00; void calculate_voltage() { float R1 = 10000.00; float R2 = 4700.00; float v_ref = 5.00; float resistor_ratio = 0.00; float adc_value = 0.00; float voltage = 0.00; resistor_ratio = (R2 / (R1 + R2)); for (int i = 0; i < 20 ; i++) { adc_value = adc_value + analogRead(VoltMeter); delay(3); } adc_value = adc_value / 20; voltage = ((adc_value * v_ref) / 1024); V = voltage / resistor_ratio; } void setup() { Serial.begin(9600); } void loop() { calculate_voltage(); Serial.print(V); Serial.println(" v"); delay(2000); }
Here, using the formula for voltage division rule and reading voltage by the ADC unit, we calculate the input voltage.
Tip

To find the voltage using the ADC unit, we use the following proportion:



Step 2: Making the Ammeter

We use the AC712 sensor for making the ammeter. It is available as a module in various ranges. In this project, we are using the 5A range of this module.

This sensor uses the hall effect to measure the current. Then it outputs a voltage proportional to the measured current, namely 185 millivolts for each amp of current.

Circuit

Connect the wires according to the following diagram.

Note
To measure the current, the ammeter has to be in series with the intended section to measure the current.

Code

Upload the following code to your Arduino and view the results in the Serial Monitor window.

/*
  Ammeter with Arduino
  modified on 21 Jul 2019
  by Saeed Hosseini @ Electropeak

Home
*/ const int Ammeter = A2; float I = 0.00; void calculate_current() { int sensitivity = 185; int adc_value = 0; float v_ref = 4.94; float voltage = 0.00; float pure_voltage = 0.00; float offset_voltage = 2.47; for (int i = 0; i < 40 ; i++) { adc_value = adc_value + analogRead(Ammeter); delay(2); } adc_value = adc_value / 40; voltage = ((adc_value * v_ref) / 1024); pure_voltage = voltage - offset_voltage; // if(pure_voltage > 0.001) pure_voltage = 0.00; pure_voltage = pure_voltage * 1000; I = pure_voltage / sensitivity; Serial.println(String("ADC = ") + adc_value ); Serial.println(String("V = ") + voltage + "v"); Serial.println(String("Pure = ") + pure_voltage + "mv"); Serial.println(String("I = ") + I + "A"); } void setup() { Serial.begin(9600); } void loop() { calculate_current(); //Serial.println(String("I = ") + I + " mA"); delay(2000); }
Here, the ADC unit reads the sensor’s output voltage, then calculates and displays the current using the mentioned proportion of 185 millivolts for each amp of current.
Note
The first time you start the sensor, it should be free of any load and output voltage should be around 2.5 volts. Read this value carefully and substitute it for the offset-voltage variable preset.

Step 3: Creating the Ohmmeter

We use the same voltage divider technique for making the ohmmeter.

The range of resistors’ values is the main issue in an ohmmeter. The farther apart resistance values of the known and unknown resistors are, the less accurate results will become. So it would be better to use several resistors to maintain smaller ranges. You can manually change the resistors using a switch or set it up automatically.

In order to automatically change the resistance range, we measure the unknown resistor one by one using the known resistors. Using the known resistors and the measured values, we calculate more accurate values for the unknown resistors.

Here we have used three ranges of 1, 10 and 100 kilo-ohms. You can make changes based on your project requirements.

Circuit

We have used the 1, 10 and 100 kilo-ohms resistors to set the ranges. Connect the wires according to the following diagram.

Code

Upload the following code to your Arduino and view the results in the Serial Monitor window.

/*
  Ohmmeter with Arduino - Automatic range
  modified on 21 Jul 2019
  by Saeed Hosseini @ Electropeak

Home
*/ const int OhmMeter = 0; const int R3 = 6; const int R2 = 5; const int R1 = 4; float R = 0.00; void calculate_resistor() { float v_ref = 4.94; float r1 = 0.00; float r_ref1 = 1000.00; float adc_value1 = 0.00; float voltage1 = 0.00; float r2 = 0.00; float r_ref2 = 10000.00; float adc_value2 = 0.00; float voltage2 = 0.00; float r3 = 0.00; float r_ref3 = 100000.00; float adc_value3 = 0.00; float voltage3 = 0.00; pinMode(R1, OUTPUT); pinMode(R2, INPUT); pinMode(R3, INPUT); digitalWrite(R1, HIGH); for (int i = 0; i < 20 ; i++) { adc_value1 = adc_value1 + analogRead(OhmMeter); delay(3); } adc_value1 = adc_value1 / 20; if (adc_value1 < 1022.90) { voltage1 = ((adc_value1 * v_ref) / 1024); r1 = (voltage1 * r_ref1) / (v_ref - voltage1); } pinMode(R1, INPUT); pinMode(R2, OUTPUT); pinMode(R3, INPUT); digitalWrite(R2, HIGH); for (int i = 0; i < 20 ; i++) { adc_value2 = adc_value2 + analogRead(OhmMeter); delay(3); } adc_value2 = adc_value2 / 20; if (adc_value2 < 1022.90) { voltage2 = ((adc_value2 * v_ref) / 1024); r2 = (voltage2 * r_ref2) / (v_ref - voltage2); } pinMode(R1, INPUT); pinMode(R2, INPUT); pinMode(R3, OUTPUT); digitalWrite(R3, HIGH); for (int i = 0; i < 20 ; i++) { adc_value3 = adc_value3 + analogRead(OhmMeter); delay(3); } adc_value3 = adc_value3 / 20; if (adc_value3 < 1022.90) { voltage3 = ((adc_value3 * v_ref) / 1024); r3 = (voltage3 * r_ref3) / (v_ref - voltage2); } r1 = r1 / 1000; r2 = r2 / 1000; r3 = r3 / 1000; if (r1 < 2 && r2 < 101 && r3 < 1001) R = r1*1000; else if (r1 > 2 && r2 < 101 && r3 < 1001) R = r2; else if (r1 > 2 && r2 > 101 && r3 < 2000) R = r3; else R = 0.00; Serial.print("R = "); Serial.println(R, 2); } void setup() { Serial.begin(9600); } void loop() { calculate_resistor(); Serial.println("_________________________________________"); delay(2500); }
In this piece of code, unknown resistance values are calculated one by one, using the known resistors. Then we use the conditions to calculate the main resistor’s resistance.
Note
In order to measure the resistance accurately and turn Arduino pins on and off, setting them as LOW wouldn’t suffice. Arduino pins should be defined as inputs so they can be fully turned off.

Step 4: Building the Capacitance Meter

We are using the same capacitor’s charging time algorithm to measure the capacitance. After the measurement process, the capacitor should be discharged for the next measurement.

Circuit

Here we used a 10 kilo-ohm resistor to charge the capacitor and a 220-ohm resistor for discharge.

Connect the wires according to the following diagram.

Code

Upload the following code to your Arduino and view the results in the Serial Monitor window.

/*
  Capacitance meter with Arduino
  modified on 21 Jul 2019
  by Saeed Hosseini @ Electropeak
  base on: https://www.arduino.cc/en/Tutorial/CapacitanceMeter

Home
*/ const int CapacitancMeter = 1; const int ChargePin = 13; const int DischargePin = 11; float C = 0.00; void calculate_capacitance() { unsigned long start_time; unsigned long elapsed_time; float microFarads; float nanoFarads; float r_ref = 10000.00; digitalWrite(ChargePin, HIGH); start_time = millis(); while (analogRead(CapacitancMeter) < 648) {} elapsed_time = millis() - start_time; microFarads = ((float)elapsed_time / r_ref) * 1000; if (microFarads > 1) { C = microFarads; } else { nanoFarads = microFarads * 1000.0; C = nanoFarads; } digitalWrite(ChargePin, LOW); pinMode(DischargePin, OUTPUT); digitalWrite(DischargePin, LOW); while (analogRead(CapacitancMeter) > 0) {} pinMode(DischargePin, INPUT); } void setup() { Serial.begin(9600); pinMode(ChargePin, OUTPUT); digitalWrite(ChargePin, LOW); } void loop() { calculate_capacitance(); Serial.println(C); delay(2000); }

The measurement algorithm is as follows:

  • Start charging the capacitor and registering the starting time using millis() command
  • Continue charging up to 63.2% of the total capacitance of the capacitor (equal to 648 in ADC)
  • Recording the elapsed time until reaching 63.2% charge
  • Calculating the capacitance using the time constant formula, knowing the resistance and time
  • Full discharge of the capacitor
Note
If you increase the known resistor’s resistance, the charging time will increase, resulting in more accurate results. However, longer charge duration reduces the measurable capacitance range. If you decrease the resistance, charge time will be reduced and the measurable range increases, at the cost of losing accuracy.

Step 5: Wrapping it Up And Adding a Display

Now that all target parameters are measured, you can complete your multimeter by adding an OLED display and two buttons to navigate the menus.

CIrcuit

Connect the wires according to the following diagram.

Code

Upload the following code to your Arduino and view the results in the Serial Monitor window.

/*
  Digital Multimeter with Arduino and OLED
  modified on 21 Jul 2019
  by Saeed Hosseini @ Electropeak

Home
*/ #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "logo.h" #define SCREEN_WIDTH 128 #define SCREEN_HEIGHT 32 #define OLED_RESET -1 Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); const int select_button = 2; const int right_button = 3; const int OhmMeter = A0; const int CapacitancMeter = A1; const int VoltMeter = A2; const int Ammeter = A3; const int R3 = 6; const int R2 = 5; const int R1 = 4; const int ChargePin = 13; const int DischargePin = 11; boolean is_select = false; int navigator = 0; int flag = 0; float R = 0.00; float V = 0.00; float I = 0.00; float C = 0.00; boolean nano = false; boolean kilo = false; boolean mili = false; void OLED_init() { if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { Serial.println(F("SSD1306 allocation failed")); for (;;); } display.clearDisplay(); diplay_logo(15, 3, Electropeak, F_LOGO_WIDTH, F_LOGO_HEIGHT); display.display(); delay(2000); display_clear(); } void display_clear() { display.clearDisplay(); display.display(); } void diplay_logo(int x, int y, const uint8_t *bitmap, int w, int h) { display.drawBitmap(x, y, bitmap, w, h, WHITE); } void display_text(int sz, int x, int y, String str) { display.setTextSize(sz); display.setTextColor(WHITE); display.setCursor(x, y); display.println(str); } void display_number(int sz, int x, int y, double num) { display.setTextSize(sz); display.setTextColor(WHITE); display.setCursor(x, y); display.println(num); } void calculate_resistor() { float v_ref = 4.94; float r1 = 0.00; float r_ref1 = 1000.00; float adc_value1 = 0.00; float voltage1 = 0.00; float r2 = 0.00; float r_ref2 = 10000.00; float adc_value2 = 0.00; float voltage2 = 0.00; float r3 = 0.00; float r_ref3 = 100000.00; float adc_value3 = 0.00; float voltage3 = 0.00; pinMode(R1, OUTPUT); pinMode(R2, INPUT); pinMode(R3, INPUT); digitalWrite(R1, HIGH); for (int i = 0; i < 20 ; i++) { adc_value1 = adc_value1 + analogRead(OhmMeter); delay(3); } adc_value1 = adc_value1 / 20; if (adc_value1 < 1022.90) { voltage1 = ((adc_value1 * v_ref) / 1024); r1 = (voltage1 * r_ref1) / (v_ref - voltage1); } pinMode(R1, INPUT); pinMode(R2, OUTPUT); pinMode(R3, INPUT); digitalWrite(R2, HIGH); for (int i = 0; i < 20 ; i++) { adc_value2 = adc_value2 + analogRead(OhmMeter); delay(3); } adc_value2 = adc_value2 / 20; if (adc_value2 < 1022.90) { voltage2 = ((adc_value2 * v_ref) / 1024); r2 = (voltage2 * r_ref2) / (v_ref - voltage2); } pinMode(R1, INPUT); pinMode(R2, INPUT); pinMode(R3, OUTPUT); digitalWrite(R3, HIGH); for (int i = 0; i < 20 ; i++) { adc_value3 = adc_value3 + analogRead(OhmMeter); delay(3); } adc_value3 = adc_value3 / 20; if (adc_value3 < 1022.90) { voltage3 = ((adc_value3 * v_ref) / 1024); r3 = (voltage3 * r_ref3) / (v_ref - voltage2); } r1 = r1 / 1000; r2 = r2 / 1000; r3 = r3 / 1000; if (r1 < 2 && r2 < 101 && r3 < 1001) R = r1 * 1000; else if (r1 > 2 && r2 < 101 && r3 < 1001) R = r2; else if (r1 > 2 && r2 > 101 && r3 < 2000) R = r3; else R = 0.00; if (R < 1) { R = R * 1000; kilo = false; } else { kilo = true; } } void calculate_capacitance() { unsigned long start_time; unsigned long elapsed_time; float microFarads; float nanoFarads; float r_ref = 10000.00; digitalWrite(ChargePin, HIGH); start_time = millis(); while (analogRead(CapacitancMeter) < 648) {} elapsed_time = millis() - start_time; microFarads = ((float)elapsed_time / r_ref) * 1000; if (microFarads > 1) { C = microFarads; nano = false; } else { nanoFarads = microFarads * 1000.0; C = nanoFarads; nano = true; } digitalWrite(ChargePin, LOW); pinMode(DischargePin, OUTPUT); digitalWrite(DischargePin, LOW); while (analogRead(CapacitancMeter) > 0) {} pinMode(DischargePin, INPUT); } void calculate_voltage() { float R1 = 10000.00; float R2 = 4700.00; float v_ref = 5.00; float resistor_ratio = 0.00; float adc_value = 0.00; float voltage = 0.00; resistor_ratio = (R2 / (R1 + R2)); for (int i = 0; i < 20 ; i++) { adc_value = adc_value + analogRead(VoltMeter); delay(3); } adc_value = adc_value / 20; voltage = ((adc_value * v_ref) / 1024); V = voltage / resistor_ratio; } void calculate_current() { int sensitivity = 185; int adc_value = 0; float v_ref = 4.94; float voltage = 0.00; float pure_voltage = 0.00; float offset_voltage = 2.47; for (int i = 0; i < 40 ; i++) { adc_value = adc_value + analogRead(Ammeter); delay(2); } adc_value = adc_value / 40; voltage = ((adc_value * v_ref) / 1024); pure_voltage = voltage - offset_voltage; pure_voltage = pure_voltage * 1000; I = pure_voltage / sensitivity; if (I < 1) { I = I * 1000; mili = true; } else { mili = false; } } void setup() { Serial.begin(9600); OLED_init(); pinMode(right_button, INPUT_PULLUP); pinMode(select_button, INPUT_PULLUP); pinMode(ChargePin, OUTPUT); digitalWrite(ChargePin, LOW); } void loop() { if (digitalRead(right_button) == 0) { navigator++; while (digitalRead(right_button) == 0); delay(5); if (navigator > 3) navigator = 0; Serial.println(navigator); } if ( digitalRead(select_button) == 0) { is_select = true; while ( digitalRead(select_button) == 0); } if (navigator == 0) { display.clearDisplay(); diplay_logo(0, 0, RightArrow, F_LOGO_WIDTH, F_LOGO_HEIGHT); display_text(2, 17, 8, "Resistor"); display.display(); while (is_select) { display.clearDisplay(); display_text(1, 0, 0, "Resistor"); display_text(2, 12, 8, "R="); display_number(2, 42, 8, R); if (kilo) display_text(1, 115, 15, "k"); display.display(); calculate_resistor(); if ( digitalRead(select_button) == 0) { is_select = false; while ( digitalRead(select_button) == 0); } } } if (navigator == 1) { display.clearDisplay(); diplay_logo(0, 0, BothArrow, F_LOGO_WIDTH, F_LOGO_HEIGHT); display_text(2, 17, 8, "Voltage"); display.display(); while (is_select) { display.clearDisplay(); display_text(1, 0, 0, "Voltage"); display_text(2, 12, 8, "V="); display_number(2, 42, 8, V); display_text(1, 115, 15, "v"); display.display(); calculate_voltage(); if ( digitalRead(select_button) == 0) { is_select = false; while ( digitalRead(select_button) == 0); } } } if (navigator == 2) { display.clearDisplay(); diplay_logo(0, 0, BothArrow, F_LOGO_WIDTH, F_LOGO_HEIGHT); display_text(2, 17, 8, "Current"); display.display(); while (is_select) { display.clearDisplay(); display_text(1, 0, 0, "Current"); display_text(2, 12, 8, "I="); display_number(2, 42, 8, I); if (mili) display_text(1, 115, 15, "mA"); if (!mili) display_text(1, 115, 15, "A"); display.display(); calculate_current(); if ( digitalRead(select_button) == 0) { is_select = false; while ( digitalRead(select_button) == 0); } } } if (navigator == 3) { display.clearDisplay(); diplay_logo(0, 0, LeftArrow, F_LOGO_WIDTH, F_LOGO_HEIGHT); display_text(2, 12, 8, "Capacitor"); display.display(); while (is_select) { display.clearDisplay(); display_text(1, 0, 0, "Capacitor"); display_text(2, 12, 8, "C="); display_number(2, 42, 8, C); if (nano) display_text(1, 115, 22, "nF"); if (!nano) display_text(1, 115, 22, "uF"); display.display(); calculate_capacitance(); if ( digitalRead(select_button) == 0) { is_select = false; while ( digitalRead(select_button) == 0); } } } }
Copy the logo.h file to your code’s folder.
Press the button connected to pin 3 to navigate the menus. Pushing the button on pin 2 enters the measurement process for the highlighted item on the menu. Pressing it again takes you back to the main menu.
Success
Congratulations! Now you have a professional digital multimeter.

What’s Next?

• Add the automatic range switch for capacitance measurement
• Ability to test connectivity to your multimeter

Explore more exciting electronics projects and expand your skills in the fascinating world of electronics. Stay tuned for more guides and tutorials at Your Electronics Guide.

Liked What You See?​
Get Updates And Learn From The Best​

Comments (67)

  • Dongkoi Reply

    Hello. thank you for this Article. it will surely be a great help in building our own multimeter project. I hope you’ll response in my question while building this kind of project. Thanks again!

    November 9, 2020 at 11:54 am
    • Mohammadreza Akbari Reply

      Hi. We are very glad to hear this article was useful for you.

      November 14, 2020 at 2:31 pm
      • Dongkoi Reply

        hi there, just wanna ask some question. how can i combine all the codes?

        January 4, 2021 at 9:24 am
        • Mehran Maleki Reply

          Hi.
          Actually you don’t need to compile all the codes to make the digital multimeter. Separate parts of the digital multimeter are explained in steps 1 to 4. And in step 5, all previous steps are wrapped up in a single circuit and code. So if your question is how you can make a complete digital multimeter -and not just an Ohmmeter or Ammeter-, you can do that by just following the code and circuit of the step 5.

          January 4, 2021 at 10:58 am
          • dongkoi

            hehe you’re right, its in step 5. thanks a lot.

            January 6, 2021 at 12:48 pm
  • koidong Reply

    what should be the right thing to do with the logo.h file? i’ve copied it to the folder where my code is located but it keeps showing an error “logo.h: no such file or directory”.

    January 6, 2021 at 1:46 pm
    • Mehran Maleki Reply

      You should copy it to the folder where your .ino file is located, meaning that logo.h and your .ino file must be in the same folder. In that way when you open the .ino file, logo.h will also appear in a tab next to it. And then there shouldn’t be any problem.

      January 6, 2021 at 2:21 pm
  • koidong Reply

    thank you. it finally works! thanks for this article!

    January 7, 2021 at 3:45 am
  • koidong Reply

    Where to connect the inputs for resistance and capacitance?

    January 7, 2021 at 5:28 am
    • Mehran Maleki Reply

      For measuring the resistance, connect the resistor to the A0 and GND pins of your Arduino Board. And for capacitance, you need to connect the capacitor to pins A1 and GND.

      January 9, 2021 at 2:36 pm
      • johnnyy Reply

        excuse me guys but i dont know how to measure the current?? so can you tell me where to connect the inputs of th curreny?

        May 20, 2022 at 12:23 am
        • Mehran Maleki Reply

          Hi,
          To measure the current, you need to use the AC712 sensor. It is well explained in the “Step 2: Making the Ammeter” section. This sensor has 3 pins, 2 for the power supply -GND and VCC- and the other one “OUT” which is the output pin of the sensor and needs to be connected to an analog pin of Arduino Board -A3 in our case-. Other necessary notes are also included in article.

          May 22, 2022 at 7:38 pm
  • Luis Reply

    Hello,
    I’m trying assembly this circuit on tinkercad, but I can’t find the part (0.96″ I2C OLED Display Module)
    The picture that you shared on step 5 is about tinkercad or did you use another software?
    Can you please help me?

    March 2, 2021 at 11:34 pm
    • Mehran Maleki Reply

      Hello Luis,
      The picture in step 5 is actually made using a combination of the fritzing and photoshop software programs just to show how the wiring should be. And If you want to use Tinkercad for modelling the circuit, the following link might be helpful. “https://www.tinkercad.com/things/2EKXoCr8iki-096-128×64-oled-display”

      March 6, 2021 at 7:41 am
    • Enoch Reply

      Electropeak in making the capacitance
      What is the name of the Blue component used with the resistors

      April 18, 2021 at 9:00 pm
      • Mehran Maleki Reply

        That’s the capacitor that we want to measure the value of.

        April 19, 2021 at 5:04 am
  • Enoch Reply

    What if I want to add a chargeable battery to the circuit how can I go about it.
    Secondly please where would my red and black probes be fixed on the board.

    March 10, 2021 at 7:54 pm
    • Mehran Maleki Reply

      To add a chargeable battery -or any other type of battery-, you can just connect the positive terminal of the battery to the VIN pin and the negative terminal to the GND pin of the Arduino board. And you don’t need to make any other changes to the rest of the circuit.
      And about the probes, the black one can be fixed at the GND pin. But where the red one should be fixed at depends on what electrical component you want to measure the value of. For example, to measure the value of a resistor or a capacitor, you should fix the red probe at A0 or A1 pin of your Arduino board respectively.

      March 13, 2021 at 11:04 am
  • Enoch Reply

    Thank you very much
    This website is very helpful
    but can I ask please

    What if i did not get the AC712 5A Current Sensor is there any alternatives

    March 15, 2021 at 3:37 am
    • Mehran Maleki Reply

      You’re quite welcome. So glad the tutorials have been useful for you.
      About the ACS712 current sensor, you can replace that with any other current sensor that has an analog output voltage ranging 0 to 5 volts. Then you need to change the code according to the current to voltage formula of the sensor you’re using.

      March 17, 2021 at 12:42 pm
  • Daniel Reply

    Thank you for this. I’m currently doing a similar project

    Right now I’m searching for the best way to adapt main voltage (220 VAC) signal into an analog input that doesn’t fry up my arduino. A voltage divider is out of question and I don’t seem to find a suitable transformer for the job of just measuring.. Any suggestions?

    March 16, 2021 at 1:19 pm
    • Mehran Maleki Reply

      Hello.
      You’re welcome.
      There are actually a handful of modules that can convert high voltage AC to a DC voltage that can be read by any of your Arduino analog pins. ZMPT101B voltage sensor is one of these modules. You can also find a good tutorial of this sensor in our website. Here’s the link: “https://electropeak.com/learn/interfacing-zmpt101b-voltage-sensor-with-arduino/”

      March 17, 2021 at 12:59 pm
  • Enoch Reply

    could not convert display.Adafruit_SSD1306 from void to bool

    That is what my code( in the Arduino ide) is saying
    Any help please ?????

    March 18, 2021 at 5:49 am
    • Mehran Maleki Reply

      Which line of the code is the error for? There might also have been some mistakes made while copying the code. So, please double check it and make sure that nothing has gone wrong in the process of copying the code and taking it to your Aduino IDE. Then, if the error still persisted and didn’t go away, say which line of the code exactly the error is about.

      March 22, 2021 at 5:04 pm
  • Enoch Reply

    Electropeak thank you very much I am done with the project but I am having some incorrect readings, the resistor is not measuring and before I test for anything the multimeter just keep reading Like when it is supposed to be 0.00 it would keep reading randomly. Any help please

    April 12, 2021 at 7:22 am
    • Mehran Maleki Reply

      Your problem can be actually related to the tolerance of the components in your circuit. And generally, a little inaccuracy is acceptable.

      April 19, 2021 at 5:12 am
  • adam Reply

    Hi,
    Do you have an idea how to protect the meter be mistested or misseted, say use a R gear to measure a Voltage by mistake?
    Thanks
    Adam

    June 9, 2021 at 8:43 pm
    • Mehran Maleki Reply

      Hi,
      Unfortunately, I couldn’t fully understand your point. But if you mean how you could calibrate the multimeter so that the voltage is never measured wrongly, you can do as following: You can add this capability to your multimeter by replacing the R2 resistor in the “Measuring the Electrical Voltage” circuit with a multi-turn potentiometer. So, this way, whenever you feel your multimeter is out of calibration, you can adjust the value of the resistor and calibrate the multimeter.

      June 12, 2021 at 4:20 am
  • ABdul Reply

    Hey there would you have an idea on how to measure AC voltage?

    August 29, 2021 at 2:05 pm
    • Mehran Maleki Reply

      Yes, there are some modules especially designed for that. For example, the ZMPT101B sensor can be used to measure AC voltages up to 250 volts. You can check the following tutorial for more details on how you can use this module:
      “https://electropeak.com/learn/interfacing-zmpt101b-voltage-sensor-with-arduino/”

      August 30, 2021 at 5:08 am
  • Tatenda Nhika Reply

    Hello, i have been trying to run the code for the multimeter but it keeps saying, no matching function for call to ‘Adafruit_SSD1306::Adafruit_SSD1306(int, int, TwoWire*, int)’. How can i solve this error?

    September 15, 2021 at 1:09 pm
    • Mehran Maleki Reply

      Hi…
      You probably don’t have the right SSD1306 library installed on your Arduino IDE. To install the appropriate library, open Arduino IDE, go to “Tools → Manage Libraries” and search for SSD1306. Look for “Adafruit SSD1306” and install it. Or update it if it’s already installed. That would solve your problem.

      September 18, 2021 at 5:53 am
  • Qasem Mohammad Reply

    Hi,
    thank you for your wonderful work.
    I did everything and it went very well, but I have a question, what do I need to change in the program if I take an HD44780 Display instead of the Oled display.

    January 13, 2022 at 9:40 pm
    • Mehran Maleki Reply

      Hi. You’re welcome.
      If you want to change the display to HD44780, first, note that it’s no easy job. You might not have enough pins to interface it with Arduino Uno, and also you can’t easily display animations on it. But, if you want to replace the OLED display with an HD44780 one, you will need to change all lines that are related to display and replace them with appropriate code for HD33780 display. The following tutorial shows how you can interface an HD44780 display with an Arduino board and use it.
      https://electropeak.com/learn/interfacing-character-lcd-display-modules-with-arduino/

      January 15, 2022 at 7:18 am
  • Ahmed Reply

    Hi, im willing to make this multimeter but I can’t find the “0.96” Resistor 220 ” could someone send me a link so that I can buy it. Also if possible to someone to send me a picture of the final result of the mutlimeter to [email protected] fast as possible. It would help me a lot.
    Thanks

    January 30, 2022 at 4:49 pm
    • Mehran Maleki Reply

      Hi.
      ​It’s just a simple 220-ohm resistor. “0.96” was just a typing mistake.

      January 31, 2022 at 5:32 am
  • ALFREDO GONZALEZ Reply

    Good project!! With nothing connected to the “R” input, it reads R=0.00 -it should read infinity. Also when measuring resistance below 1k, the “K” remains showing on display.

    February 1, 2022 at 3:12 pm
    • Mehran Maleki Reply

      Hi. Thanks for your feedback! We’ll look into that.

      February 2, 2022 at 6:14 am
      • Ahmed gaber Reply

        Hi there ,,,thank you for your effort guys but I got a simple question …. i’ve connected all the components in the circuit above with applying the code you guys put …. but its never measuring values of R and C so do have any assumption where the problem is ,,,,and can you explain how can i use it to measure the voltage because i cant get it
        Thank you in advance

        May 19, 2022 at 7:49 pm
        • Mehran Maleki Reply

          Hi,
          An important point to consider when making such big circuits with a lot of components is to do it step by step. So, instead of connecting all components at once and applying the final code, try to make the smaller circuits and use the codes corresponding to them. That way, you can debug your problem more easily.

          May 22, 2022 at 7:29 pm
  • Tariq mohammed Reply

    Thanks for everything good tutorial

    I want to ask about something. I want to add many thing to this project by (software) but I do not know the code. I want to add the following:
    DC (Power and Energy)
    AC (Voltage , Current , ohm , Capacitance , Power and Energy)

    Note: I want it by software and I want as an addition to the main project not individual

    If you can help me with that I will appreciate that

    you can contact me on my email

    February 20, 2022 at 3:51 am
    • Mehran Maleki Reply

      Hi.
      Unfortunately, we cannot accept projects. But if you ever decide to do those things you want on your own, we will be so happy to help.

      February 20, 2022 at 7:55 am
  • Mohammed Reply

    Please I have another question if I want to add DC (Power and Energy)
    What should I do how can I calculate P=VI and E=Pt by coding

    February 23, 2022 at 2:05 am
    • Mehran Maleki Reply

      Hi.
      Well, you can calculate the voltage and current (“V” and “I”) using the code in this tutorial. And by having “V” and “I”, you can easily declare an integer variable named “P” and calculate the power using formula “P=VI”.
      And you can do the same for the energy. Declare an integer variable and name it “E”, then calculate the energy using the formula “E=Pt”. The variable “t” can be chosen arbitrarily.
      You can study the link below for more notes on how to write your code, or consult a programmer.
      https://www.programmingelectronics.com/tutorial-3-arduino-ide-and-sketch-overview/

      February 23, 2022 at 5:49 am
      • Mohammed Reply

        thank you and can I contact you by email or whatsapp ?

        February 23, 2022 at 1:57 pm
        • Mehran Maleki Reply

          Unfortunately not. You can just ask your questions here in the comments.

          February 26, 2022 at 6:44 am
  • Val Reply

    Hello, thanks for the great project. I only have one problem, I can’t find the OLED anywhere near me and I can only find LCDs can that work? and do you have any Idea how to edit the code to make it work around using an lcd for an output?

    April 28, 2022 at 4:51 pm
  • Iulian Reply

    Hello , i have a question , why do you divide by 20 the adc_value in the first step ? “adc_value = adc_value / 20” ? is it because u increment until it’s 20 for i ?

    June 22, 2022 at 1:36 pm
    • Mehran Maleki Reply

      Yes, exactly. It is mainly done to reduce the effect of noise in our measurements.

      July 10, 2022 at 11:30 am
  • krishna Reply

    I am getting a lot of errors in it like Adafruit_GFX.h , Adafruit_SSD1306.h No such file or directory etc. Can anyone kindly help me with making this project?

    August 26, 2022 at 6:07 pm
  • Sara Khan Reply

    Hi, I have a question. What changes do I have to do if I want the following ranges of readings from my multimeter:
    DC Voltage [100mV – 20V]
    DC Current [10mA – 20mA]

    December 15, 2022 at 3:08 pm
    • Ali Abdolmaleki Reply

      Hi
      you can use c code that has been written on step2, but note that maximum measuring voltage for ACS712 is 15vDC.
      It is so easy to estimate measuring range with a simple propotion between reference voltage and sensivity
      for example for 3.3V and 185mv/A(this is Sensivity of ACS712) and 10bit ADC resolution(1023) the result is 57
      so for 0.5A = 500mA = 28.5 that you can see in output

      February 15, 2023 at 12:33 pm
  • Sara Khan Reply

    And also please tell if this whole process can also meaure AC voltage and current or not??

    December 15, 2022 at 3:15 pm
    • Ali Abdolmaleki Reply

      Yes.
      you can use it for this goal.

      February 15, 2023 at 12:33 pm
  • jack Reply

    what is the function of logo.h?

    January 25, 2023 at 2:04 pm
    • Ali Abdolmaleki Reply

      Hi.
      logo.h is a library that has several functions to use.

      February 19, 2023 at 11:23 am
  • bahril Reply

    please i want to know codes in Voltmeter , why adc_value divided by 20 ? i dont get it.

    March 23, 2023 at 1:19 pm
    • Ali Abdolmaleki Reply

      Hi dear
      if you note to above of adc_value = adc_value / 20; line
      you see the for loop with 20 step that read the analog value and plus the Previous and next value.
      actually with need to get avarge from 20 cases to get more accurate value.

      April 1, 2023 at 7:56 am
  • Fedrick Powell Reply

    Greetings
    Mehran Maleki

    Looking at your project I find it very interesting to try and make one. But I am wondering how I can connect a battery to the circuit for the meter to be portable?

    May 6, 2023 at 10:39 pm
    • Hadi Norouzi Reply

      Hi Fedrick
      You should use the following device: 5v-1a-power-bank-charger-lithium-battery
      When you get the device, you need to connect the battery to this device, and then this device to Arduino.

      May 13, 2023 at 11:02 am
  • crimson spruce Reply

    what changes do i need to make if i want to send the data to my cloud channel in thingspeak instead of displaying it on display board?

    September 18, 2023 at 7:16 am
    • Mohammad Damirchi Reply

      Hi Crimson
      You should use ESP32 as the microcontroller instead of Arduino Uno. To send data to your cloud channel, you can read the related tutorials on Internet.

      September 19, 2023 at 5:47 am
  • Navin Reply

    I have connected same circuit but nothing is visible on OLED display ,what’s wrong with it???

    December 11, 2023 at 6:22 pm
    • Mohammad Damirchi Reply

      Hi Navin,
      Use an I2C scanner to check your wiring and ensure that the OLED is connected correctly. Additionally, you can try running the OLED example separately to verify whether the OLED is functioning correctly.

      December 12, 2023 at 4:23 am
  • hukoro Reply

    can it be used to measuring negative voltage and mV range?

    July 27, 2024 at 2:11 pm
    • Mohammad Damirchi Reply

      Hi Hukoro,
      No, for reading voltage, we use a voltage divider that can read greater than 0 volts.
      To measure negative voltage, you might need an external ADC module that supports both positive and negative voltages. Ensure that you provide a suitable negative voltage source for the ADC module.
      Alternatively, you can use a full bridge rectifier to convert all voltages to positive values. Then, use an op-amp at the input to detect if the original voltage was positive or negative. Note that this method only works for voltages greater than 0.7 volts (diode forward voltage).

      July 29, 2024 at 6:53 am
