YZC-161B 8KG Half Bridge Weight Scale Sensor
$1.7500
In stock
SKU
SEN-13-055
Volume discounts:
- +50 5 % $1.6600
- +100 7 % $1.6200
- +300 10 % $1.5700
- +500 13 % $1.5300
- +1000 15 % $1.4800
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GML692 50KG Half Bridge Weight Scale Sensor Previous

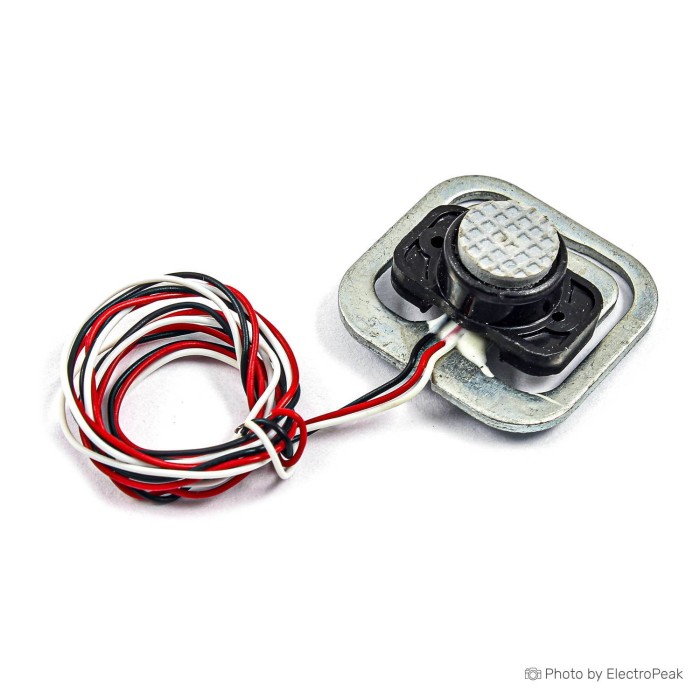

YZC-161B 8KG Half Bridge Weight Sensor is a load cell for measuring force and weight as an electrical output. It is a strain-gauge type sensor with a half-bridge structure and an analog output. This weight sensor is suitable for electronic weighing applications and digital scale designs. It offers a compact steel body, low power use, and IP65 protection. The sensor uses three wire colors for connection: red, black, and white.
Features of YZC-161B 8KG Half Bridge Weight Sensor
- Half-bridge load cell structure
- Analog output signal
- 8 kg rated load
- IP65 protection
- Steel body
- Three-wire connection
Specifications of YZC-161B 8KG Half Bridge Weight Sensor
- Model: YZC-161B
- Rated load: 8 kg
- Output type: Analog
- Output sensitivity: 0.1 ± 1.0 mV/V
- Nonlinearity: 0.08% F.S
- Hysteresis: 0.1% F.S
- Repeatability: 0.05% F.S
- Temperature effect on output: 0.02% F.S/°C
- Temperature effect on zero: 0.02% F.S/°C
- Zero output: 0.1000 ± mV/V
- Input impedance: 1000 ± 20% ohms
- Output impedance: 1000 ± 10% ohms
- Insulation resistance: 2000 mega ohms
- Overload capacity: 120% FS
- Recommended input voltage: 5 V DC
- Maximum working voltage: 8 V DC
- Protection level: IP65
- Wire colors: Red, Black, White
- Material: Steel
- Temperature: -20 to 65 °C
- Size: 25 x 26 mm
How to Use YZC-161B 8KG Half Bridge Weight Sensor
- Connect the three wires according to the required circuit.
- Apply the recommended input voltage.
- Measure the analog output for weight reading.
More Info
- Load cells convert force into measurable electrical output.
- Suitable for electronic weighing equipment.
- Designed as a strain-gauge type sensor with a half-bridge structure.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 5V - 8V DC |
| Operating Temp (°C) | -20 to 65 °C |
| Dimensions (mm) | 25x26 mm |
| Output Type | Analog Voltage |
| Accuracy | Non-linearity: 0.08% (F.S), Hysteresis: 0.1% (F.S), Temp effect: 0.02% (F.S/°C) |
| Resolution | 1.0 ± 0.1 mV/V |
| Force Range | 8 kg |
| Sensing Principle | Strain Gauge |
| Output Level | 1.0 ± 0.1 mV/V |
| Form Factor | Half-bridge |
| Sensor Type | Load Cell |
| Material | Steel |
| Insulation Resistance | 2000 MΩ |
| Input Impedance | 1000 ± 20% ohms |
| Output Impedance | 1000 ± 10% ohms |
| Hysteresis | 0.1% (F.S) |
