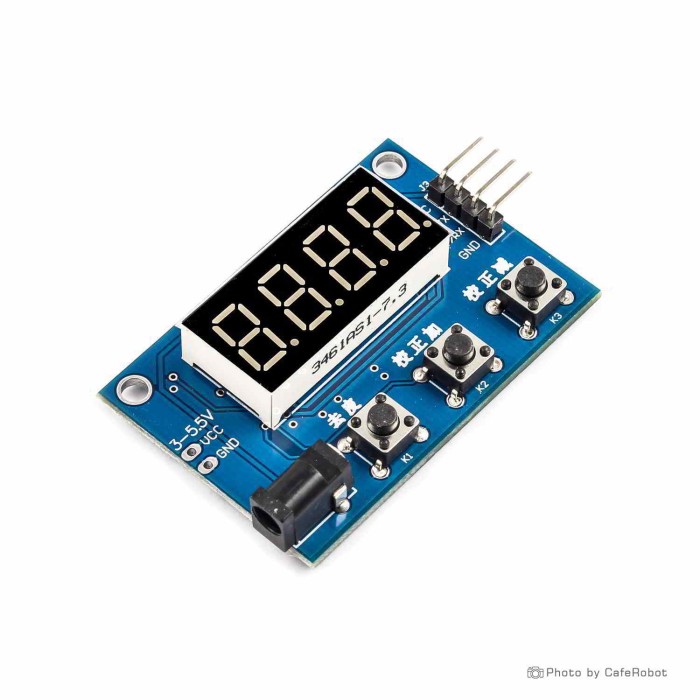

4Bit Digital Tube Display Screen For HX711 Weight Sensor

[SEN-13-058]
Volume discounts:
  • +100 6 % $2.11
  • +300 8 % $2.06
  • +500 10 % $2.02
  • +1000 12 % $1.97
Shop with confidence Learn More
Availability: 674 items
SKU
SEN-13-058
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$2.25

Description:

It is a HX711 pressure sensor module. The module is connected to the pressure sensor first, and then energized for use. After connecting with the pressure sensor for the first time, calibration is required. The parameters can be saved after power-off and there is no need to calibrate again in the future.

Features:

  • 1. It supports wide voltage input.
  • 2. It has two wiring methods, it can be powered by a USB cable, or it can be wired by yourself.
  • 3. This module has a calibration function.
  • 4. It has a power saving function.
  • 5. It uses a 4-digit digital tube display, which can display up to 9999g.

Parameter:

  • 1. Product Name:HX711 Pressure Sensor Module
  • 2. Power Supply Voltage: DC 3.5V~5V
  • 3. Connect Pressure Sensor:5KG/10KG
  • 4. Maximum Weight: 9999g
  • 5. Work Temperature:-25~85
  • 6. Work Humidity:5%~95%RH
  • 7. Size:56*33*11mm
