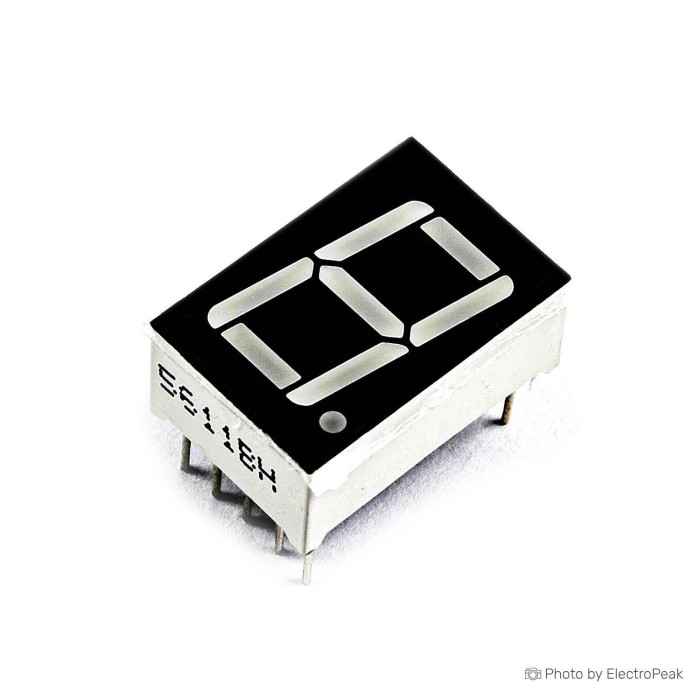

7-Segment Display - 1-Digit, 0.56inch, Common Anode (Red)

A 7-Segment Display is an electronic display device for showing decimal numerals. This 1-digit 0.56-inch version is designed as a common anode display. It provides a red visual output for numeric indication tasks. The unit is suitable for digital display applications that require a compact numeric segment format. Its specifications are presented below for quick product selection.

Features of 7-Segment Display - 1-Digit, 0.56Inch, Common Anode, Red

• 1-digit display
• Common anode type
• Red display color
• 0.56-inch size

Specifications of 7-Segment Display - 1-Digit, 0.56Inch, Common Anode, Red

• Voltage: 1.99 V DC
• Type: Common anode
• Color: Red
• Display size: 12.6 x 19 x 8 mm

How to Use 7-Segment Display - 1-Digit, 0.56Inch, Common Anode, Red

1. Connect the display according to the required circuit design.
2. Apply the specified voltage.
3. Drive the segments to show the desired numeral.

More Info

• Used for decimal numeral display.
• Alternative to dot matrix displays.
