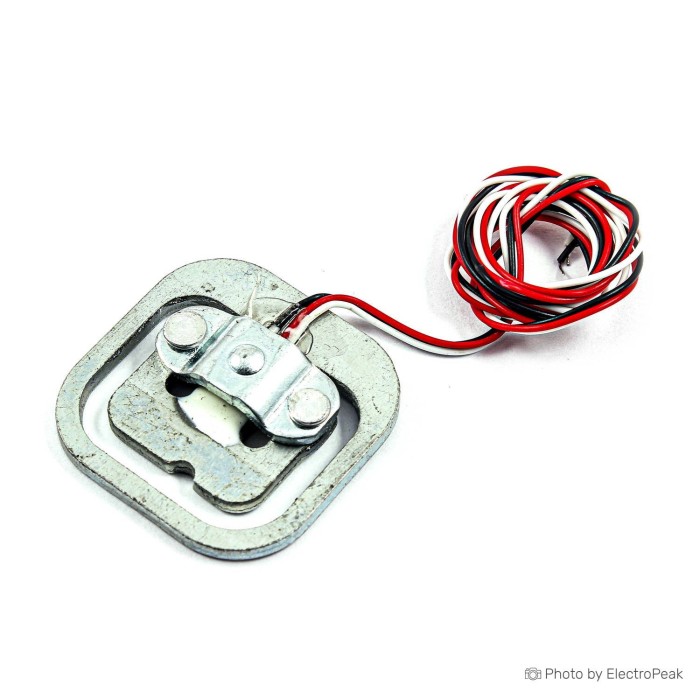

GML692 50KG Half Bridge Weight Scale Sensor
$0.3800
In stock
SKU
SEN-13-054
Volume discounts:
- +100 5 % $0.3600
- +1000 8 % $0.3500
- +5000 11 % $0.3400
- +10000 13 % $0.3300
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YZC-161B 5KG Half Bridge Weight Scale Sensor Previous
The GML692 50KG Half Bridge Weight Scale Sensor is a compact load cell for weight measurement and electronic weighing applications. It uses a half-bridge structure and produces a voltage signal under force. This sensor is designed for body scale use and provides an analog output. The GML692 load cell is made of steel and is suitable for building weighing devices and digital scale systems.
Features of GML692 50KG Half Bridge Weight Scale Sensor
- Half-bridge load cell structure
- Analog output signal
- 50kg maximum measuring range
- Steel construction
- Compact 34mm x 34mm body
Specifications of GML692 50KG Half Bridge Weight Scale Sensor
- Model: GML692
- Load capacity: 50 kg
- Output sensitivity: 0.1 ± 1.0 mV/V
- Nonlinearity: 0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.03% F.S
- Temperature effect on output: 0.05% (℃10 /FS)
- Zero output: 0.1000 ± mV/V
- Input impedance: 1000 ± 20 ohm
- Output impedance: 1000 ± 20 ohm
- Insulation resistance: 5000 MΩ
- Ultimate overload: 150% FS
- Wire colors: Red, Black, White
- Material: Steel
- Temperature: 0-50°C
- Size: 34x34 mm
- Weight: 21 g
- Input voltage: 5V ~ 10V
- Usage: Body Scale
- Theory: Resistance Sensor
- Output type: Analog
- Measuring range: 50kg (Max)
- Comprehensive error: 0.2% (full Scale)
- Precision: 0.2% F.S
- Zero balance: 0.3mv/v
- Input impedance: 1000 +/-10ohm
- Creep: 0.15% F.S/3min
- Operating temperature: -10°C ~ 40°C
- Size: 34mm x 34mm x 7.8mm
How to Use GML692 50KG Half Bridge Weight Scale Sensor
- Connect the three wires according to the required wiring setup.
- Apply the recommended input voltage within the specified range.
- Measure the output signal during load application.
More Info
- Suitable for electronic weighing projects.
- Designed as a load cell for force-to-voltage conversion.
| Interface Type | Analog |
|---|---|
| Operating Temp (°C) | 0 to 50 |
| Dimensions (mm) | 34x34 mm |
| Output Type | Analog Voltage |
| Accuracy | 0.03% (F.S) |
| Force Range | 50 kg |
| Sensing Principle | Strain Gauge |
| Weight (g) | 21 |
| Output Channels | 1 |
| Sensitivity Adj. | No |
| Output Level | 1.0 ± 0.1 mV/V |
| Sensor Type | Load Cell |
| Material | Steel |
| Insulation Resistance | 5000 MΩ |
| Input Impedance | 1000 ± 20% ohms |
| Output Impedance | 1000 ± 20% ohms |
