SRD-12VDC-SL-C Relay - 12V, 10A
$0.2100
In stock
SKU
REL-01-028
Volume discounts:
- +100 5 % $0.2000
- +1000 10 % $0.1900
- +10000 14 % $0.1800
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HJR-4102-L Relay - 12V Previous

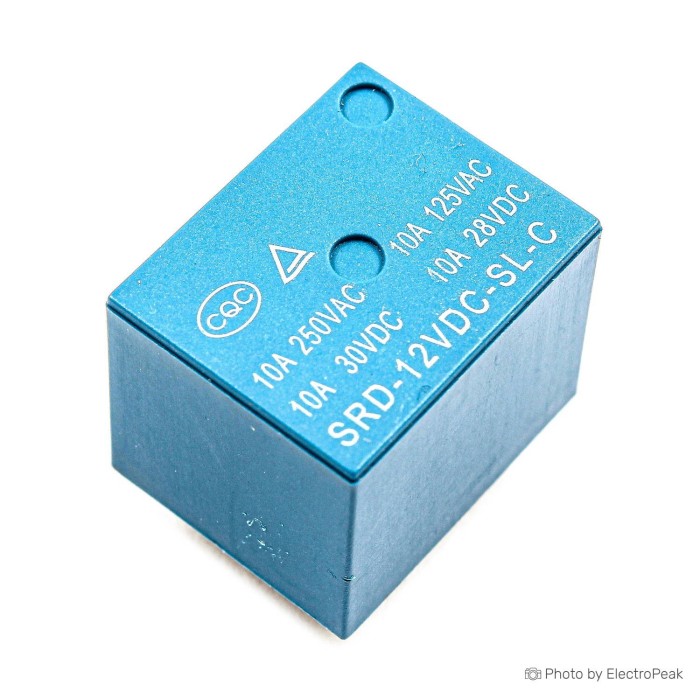

SRD-12VDC-SL-C Relay is a 12V DC relay with a 10A rating. It is a 5 pin relay with SPST contact configuration. The relay is built with plastic and metal materials and comes in blue. This relay is suitable for circuit switching applications where a compact electrical relay is required.
The SRD-12VDC-SL-C Relay provides a standard relay format with clearly defined coil voltage and load ratings. It is designed for general electronic switching use in compact systems. The product page includes the key technical identifiers needed for selection.
Features of SRD-12VDC-SL-C Relay - 12V, 10A, 5 Pin
- 12V DC coil
- 10A load rating
- 5 pin relay
- SPST contact
- Plastic and metal construction
- Blue color
Specifications of SRD-12VDC-SL-C Relay - 12V, 10A, 5 Pin
- Model: SRD-12VDC-SL-C
- Coil Voltage: 12V DC
- Load: 10A/250VAC
- Load: 10A/125VAC
- Load: 10A/30VDC
- Load: 10A/28VDC
- Number of Pins: 5 pin
- Contact: SPST
- Size: 15x18 mm
- Material: Plastic, metal
- Color: Blue
How to Use SRD-12VDC-SL-C Relay - 12V, 10A, 5 Pin
- Connect the coil to a 12V DC control circuit.
- Wire the load through the relay contact terminals.
- Use the 5 pin relay according to the required switching circuit.
More Info
- Electrical relay for switching applications
- Compact 15x18 mm form factor
| Operating Voltage (V) | 12V |
|---|---|
| Dimensions (mm) | 18 x 15 mm |
| Mounting Type | THT (Through Hole) |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC |
| Load Current (A) | 10A |
| Chipset | SRD-12VDC-SL-C |
| Relay Type | Relay output |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
