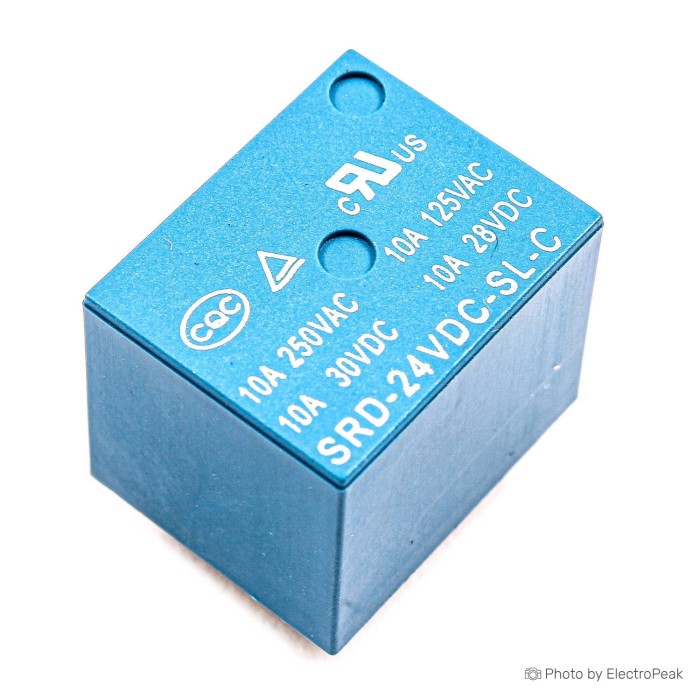

SRD-24VDC Relay - 24V
$0.1700
In stock
SKU
REL-01-019
Volume discounts:
- +100 6 % $0.1600
- +5000 12 % $0.1500
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
5VDC-JQC-3F Relay - 5V Previous
SRD-24VDC-SL-C Relay is a 5 Pin SPDT PCB plug-in type power relay. It is designed as an electrical switch with electromagnetic operation. This relay can be used as a protector or a circuit switch. The coil voltage is DC 24V. Load capacity is specified for multiple voltage ratings. The relay is a compact component for electronic and automation assemblies.
Features of SRD-24VDC-SL-C Relay - 24V, 5 Pin, SPDT
- 5 Pin design
- SPDT contact type
- PCB plug-in type
- Power relay construction
- Electromagnetic switching
- Protector or circuit switch function
Specifications of SRD-24VDC-SL-C Relay - 24V, 5 Pin, SPDT
- Model: srd-24vdc-sl-c
- Coil Voltage: DC 24V
- Load Capacity: 10A/250Vac
- Load Capacity: 10A/125Vac
- Load Capacity: 10A/30Vdc
- Load Capacity: 10A/28Vdc
- Number of Pins: 5 Pin
- Contact: SPDT
- Dimensions: 19x15x15 mm
- Weight: 9 grams
How to Use SRD-24VDC-SL-C Relay - 24V, 5 Pin, SPDT
- Connect the relay as a PCB plug-in component.
- Apply DC 24V to the coil.
- Use the contact terminals for switching the required circuit.
More Info
- Suitable for electronic switching applications
- The relay includes specified load ratings for different voltage levels
| Operating Voltage (V) | 24V |
|---|---|
| Dimensions (mm) | 19x15x15 mm |
| Mounting Type | THT (Through Hole) |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/250Vac 10A/125Vac, 10A/30Vdc 10A/28Vdc |
| Load Current (A) | 10A |
| Chipset | srd-24vdc-sl-c |
| Relay Type | Relay output |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
| Weight (g) | 9 |
| Pins | 5 pins |
