5VDC-JQC-3F Relay - 5V
$0.2900
In stock
SKU
REL-01-027
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +1000 10 % $0.2600
- +10000 14 % $0.2500
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SRD-12VDC-SL-C Relay - 12V, 10A Previous

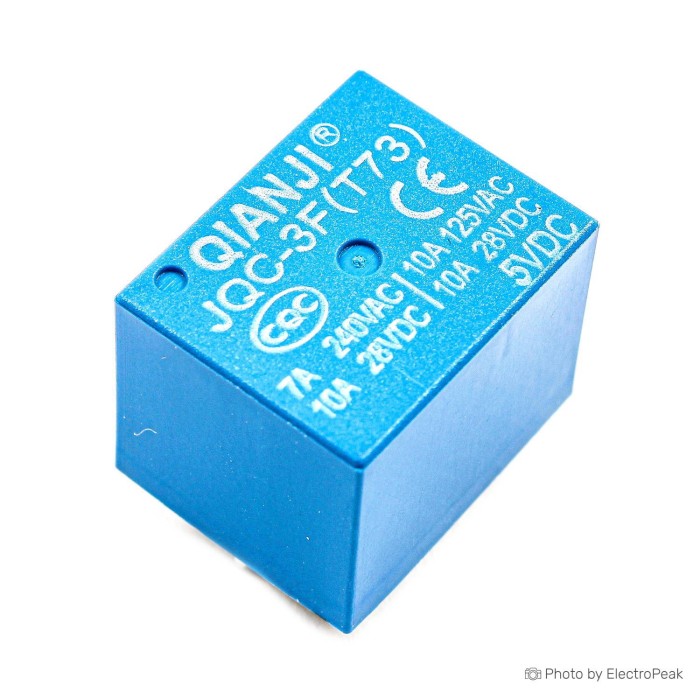

The 5VDC-1C-3F-JQC Relay is a 5V DC relay with a 5-pin configuration. It is built with a standard PC layout and is available in a blue housing made from plastic and metal. This relay is designed as an electrical switching component with coil-driven operation. It includes the key electrical ratings and physical details needed for product selection.
Features of 5VDC-1C-3F-JQC Relay - 5V, 5 Pin
- 5V DC coil voltage
- 5-pin configuration
- Standard PC layout
- Blue housing
- Plastic and metal construction
Specifications of 5VDC-1C-3F-JQC Relay - 5V, 5 Pin
- Model: 5VDC-1C-3F-JQC
- Coil voltage: 5V DC
- Load rating: 7A/240VAC
- Load rating: 10A/125VAC
- Load rating: 10A/28VDC
- Load rating: 10A/28VDC
- Pin quantity: 5 Pin
- Size: 15x18 mm
- Material: Plastic, Metal
- Color: Blue
How to Use 5VDC-1C-3F-JQC Relay - 5V, 5 Pin
- Connect the coil to a 5V DC control circuit.
- Wire the load through the relay contacts.
- Use the 5-pin layout on a compatible PCB or circuit board.
More Info
- Relay switching is based on electromagnetic operation.
- Suitable for electronic equipment and control systems.
| Operating Voltage (V) | 5V |
|---|---|
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15x18 mm |
| Mounting Type | THT (Through Hole) |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 10A/125VAC, 7A/240VAC, 10A/28VDC |
| Load Current (A) | 10 |
| Control Signal | Digital |
| Chipset | 5VDC-1C-3F-JQC |
| Relay Type | Relay output |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
| Pins | 5 pins |
