HJR-4102-L Relay - 12V
$0.2900
In stock
SKU
REL-01-029
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +1000 10 % $0.2600
- +10000 14 % $0.2500
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SRD-05VDC-SL-C Relay - 5V, 10A Previous

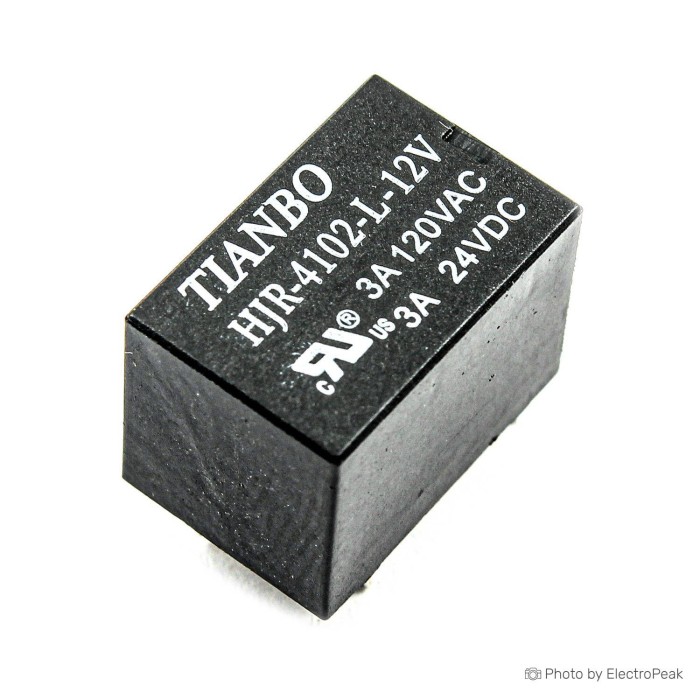

HJR-4102-L Relay is a 12V DC relay with a 6-pin SPDT contact layout. It is designed as a PCB-mount relay with a compact form factor and a black body. This relay is suitable for electrical switching applications that require a 12V coil drive. The unit combines plastic and metal construction and is identified by the HJR-4102-L model. Its rated load and mechanical details are listed below.
Features of HJR-4102-L Relay - 12V, 6 Pin, SPDT
- 12V DC coil
- 6-pin configuration
- SPDT contact type
- PCB mount
- Plastic and metal construction
- Black body
Specifications of HJR-4102-L Relay - 12V, 6 Pin, SPDT
- Model: HJR-4102-L
- Coil Voltage: 12V DC
- Load: 3A 120VAC / 3A 24VDC
- Pin Count: 6 Pin
- Contact: SPDT
- Size: 15x10 mm
- Mounting: PCB
- Material: Plastic, Metal
- Color: Black
- Weight: 36 g
How to Use HJR-4102-L Relay - 12V, 6 Pin, SPDT
- Connect the relay to a PCB mount circuit.
- Apply a 12V DC coil drive to operate the relay.
More Info
- Use the HJR-4102-L model designation for identification.
- Verify the load rating before installation.
| Operating Voltage (V) | 12V |
|---|---|
| Dimensions (mm) | 15x10 mm |
| Mounting Type | THT (Through Hole) |
| Control Type | Relay (Electromechanical) |
| Channel Count | 1 |
| Switching Capacity | 3A 120VAC / 3A 24VDC |
| Load Current (A) | 3 |
| Chipset | HJR-4102-L |
| Relay Type | Relay output |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
| Weight (g) | 36 |
