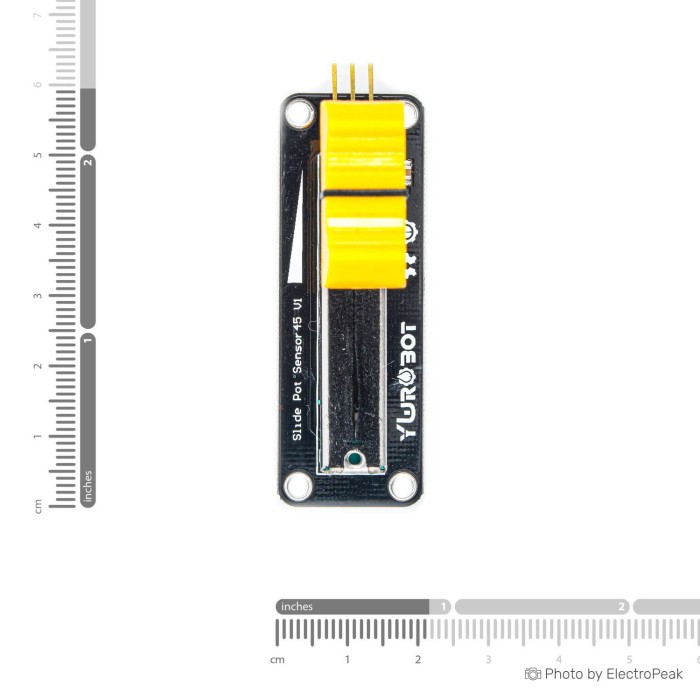

YwRobot Sliding Potentiometer Module

The YwRobot Sliding Potentiometer Module is a linear variable resistor module with a maximum resistance of 10K. It provides an adjustable analog output that changes from 0 V to the applied VCC as the slider moves from one side to the other. This slide potentiometer module is designed with an analog port and a dual analog output signal. It is suitable for use with Arduino, MCU, ARM, and other single microcomputer platform chip systems. The module includes 6 pins and a compact 90mm x 20mm size.

Features of YwRobot Sliding Potentiometer Module - 10K, 6 Pins

• Linear variable resistor
• 10K resistance
• Analog port
• Dual analog output
• 6-pin interface

Specifications of YwRobot Sliding Potentiometer Module - 10K, 6 Pins

• Input Voltage: 3.3V, 5V
• Port: Analog
• Resistance: 10K
• Platform: for Arduino, MCU, ARM, and other single microcomputer platform chip
• Output: Dual Analog Output, 0-VCC analog voltage signal
• Pin Number: 6 Pins
• Size: 90mm x 20mm

How to Use YwRobot Sliding Potentiometer Module - 10K, 6 Pins

1. Apply 3.3V or 5V input voltage to the module.
2. Read the analog output while moving the slider.

More Info

• Adjusts output voltage from 0 V to VCC.
• Uses a sliding contact to form an adjustable voltage divider.
