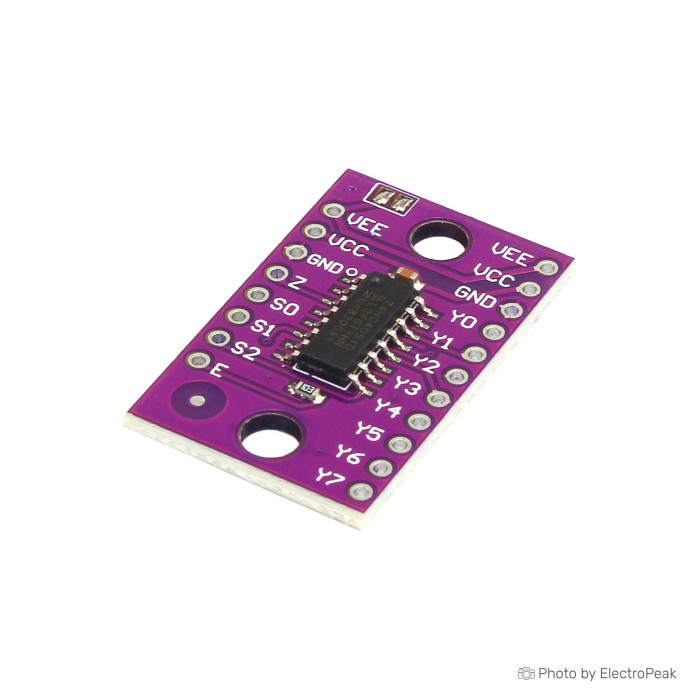

CJMCU 74HC4051 8-Channel Analog Multiplexer Module
$0.6700
In stock
SKU
misc-04-021
Volume discounts:
- +50 4 % $0.6400
- +100 6 % $0.6300
- +300 7 % $0.6200
- +500 10 % $0.6000
- +1000 12 % $0.5900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YwRobot Sliding Potentiometer Module Previous
CJMCU 74HC4051 8-Channel Analog Multiplexer Module is a single-pole octal-throw analog switch for 8:1 multiplexer and demultiplexer applications. It includes three digital select inputs, eight independent inputs/outputs, a common input/output, and a digital enable input. When the enable input is HIGH, the switches are turned off. Clamp diodes are included on the inputs. Current limiting resistors can be used to interface inputs to voltages in excess of VCC.
Features of CJMCU 74HC4051 8-Channel Analog Multiplexer Module
- 8:1 multiplexer and demultiplexer support
- Three digital select inputs
- Eight independent inputs/outputs
- Digital enable input
- Clamp diodes on inputs
- Wide analog input voltage range from -5 V to +5 V
- Low ON resistance
- Logic level translation
- Built-in break before make
- ESD protection
Specifications of CJMCU 74HC4051 8-Channel Analog Multiplexer Module
- Single-pole octal-throw analog switch
- Three digital select inputs: S0, S1 and S2
- Eight independent inputs/outputs: Yn
- Common input/output: Z
- Digital enable input: E
- When E is HIGH, the switches are turned off
- Wide analog input voltage range from -5 V to +5 V
- Complies with JEDEC standard no. 7A
- Low ON resistance: 80 ohm (typical) at VCC - VEE = 4.5 V
- Low ON resistance: 70 ohm (typical) at VCC - VEE = 6.0 V
- Low ON resistance: 60 ohm (typical) at VCC - VEE = 9.0 V
- Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
- Typical break before make built-in
- ESD protection: HBM JESD22-A114F exceeds 2000 V
- ESD protection: MM JESD22-A115-A exceeds 200 V
- ESD protection: CDM JESD22-C101E exceeds 1000 V
- Specified from -40„ to +85„
- Specified from -40„ to +125„
How to Use CJMCU 74HC4051 8-Channel Analog Multiplexer Module
- Connect the select inputs S0, S1 and S2.
- Use E to enable or disable the switch paths.
- Connect the desired input or output to Yn and Z.
More Info
- Suitable for analog or digital 8:1 multiplexer and demultiplexer applications
- Current limiting resistors can be used with inputs above VCC
| Interface Type | Analog,Digital |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | Pin Header |
| Control Type | MOSFET |
| Channel Count | 8 |
| Control Signal | Digital (3.3V/5V) |
| Chipset | 74HC4051 |
| Trigger Level | Low Level Trigger (Active LOW) |
| Display Type | None |
| Material | PCB |
| Input Type (AC/DC) | DC |
| Protection | HBM JESD22-A114F > 2000V, MM JESD22-A115-A > 200V, CDM JESD22-C101E > 1000V |
