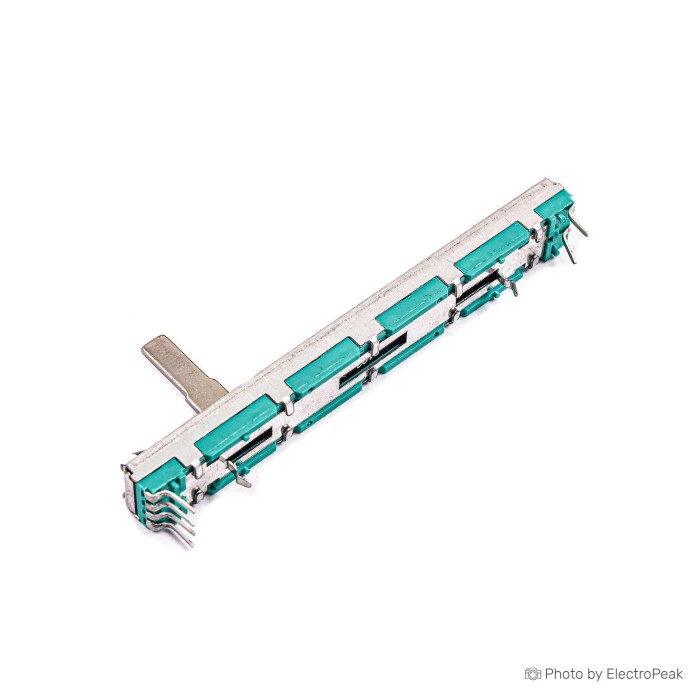

10K Ohm Two-Channel Sliding Potentiometer
$0.3600
In stock
SKU
misc-04-036
Volume discounts:
- +100 3 % $0.3500
- +500 6 % $0.3400
- +1000 8 % $0.3300
- +10000 11 % $0.3200
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Arc Cigarette Lighter Parts - DIY Electronic Lighter Kit Previous
10K Ohm Two-Channel Sliding Potentiometer is a linear potentiometer with double connection and two channels. It provides resistance that changes linearly during the pushing process. The first half changes slowly, while the second half changes quickly. This structure supports volume control applications. The compact terminal layout is designed for straightforward electrical connection.
Features of 10K Ohm Two-Channel Sliding Potentiometer
- Linear potentiometer
- Double connection
- Two-channel design
- Linear resistance change
- Volume control support
Specifications of 10K Ohm Two-Channel Sliding Potentiometer
- Resistance Value: 10K ohm
- Channel: Double Channel
- Tolerance: +/-10%
- Terminals Number: 6
How to Use 10K Ohm Two-Channel Sliding Potentiometer
- Connect the 6 terminals according to the circuit layout.
- Move the slider to adjust the resistance value.
More Info
- Resistance changes linearly during the pushing process.
- The first half changes slowly.
- The second half changes quickly.
| Platform | Arduino Nano,Arduino Uno,Raspberry Pi 3,Raspberry Pi 4 |
|---|---|
| Interface Type | Analog |
| Operating Voltage (V) | 3.3V - 5V |
| Dimensions (mm) | 75 x 9.4 x 6 mm |
| Mounting Type | Screw holes |
| Output Type | Analog |
| Resolution | 100% |
| Sensing Principle | Resistive |
| Connector | Soldering |
| Weight (g) | 20g |
| Output Channels | 2 |
| Form Factor | Slide Potentiometer |
| Sensor Type | Positioning sensor |
| Insulation Resistance | 100MΩ |
