5 Direction Navigation Rocker Joystick Button Module
$0.5500
In stock
SKU
misc-04-035
Volume discounts:
- +50 4 % $0.5300
- +100 5 % $0.5200
- +300 7 % $0.5100
- +500 11 % $0.4900
- +1000 13 % $0.4800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Tactile Push Button Switch - 5.8x5.8mm, 6 Feet Previous

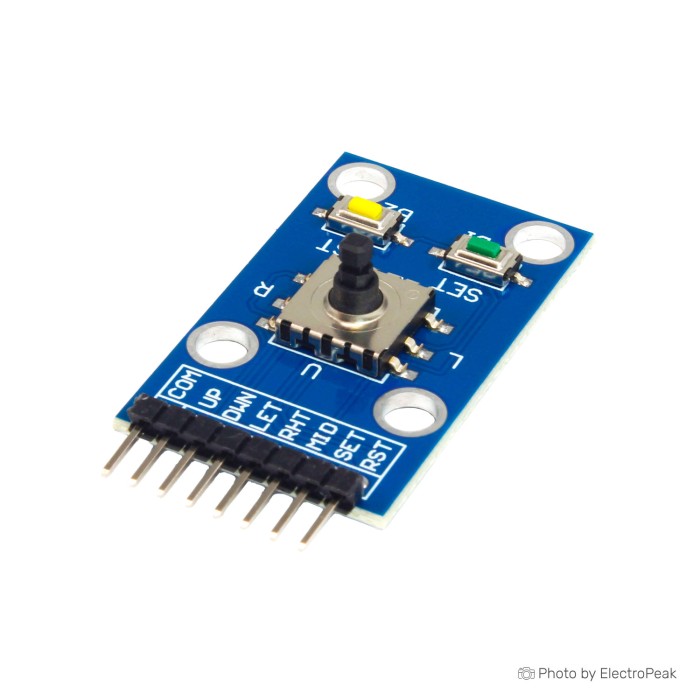

5 Direction Navigation Rocker Joystick Button Module is a small form factor joystick module for navigation control panels. It comes on a breakout board for convenient integration. The module provides five direction navigation button functions along with set and reset inputs. It is designed with 7 IO pins and supports a wide operating voltage range. The operating temperature range is also specified for use in demanding environments.
Features of 5 Direction Navigation Rocker Joystick Button Module - 7 IO Pins, 2.0V-9.0V
- Five direction navigation input
- Breakout board included
- 7 IO pins
- Wide operating voltage range
- Extended operating temperature range
Specifications of 5 Direction Navigation Rocker Joystick Button Module - 7 IO Pins, 2.0V-9.0V
- Number of IO pins: 7
- Operating voltage: 2.0V-9.0V
- Operating temperature: -40°C to +85°C
- COM: Common, VCC or GND connected to the MCU development board
- Up direction button: Connect to IO pin of the MCU
- DWN: Down direction button, Connect to IO pin of the MCU
- LFT: Left direction button, Connect to IO pin of the MCU
- RHT: Right direction button, Connect to IO pin of the MCU
- MID: Middle direction button, Connect to IO pin of the MCU
- SET: Set button, Connect to IO pin of the MCU
- RST: Reset button, Connect to IO pin of the MCU
How to Use 5 Direction Navigation Rocker Joystick Button Module - 7 IO Pins, 2.0V-9.0V
- Connect COM to VCC or GND on the MCU development board.
- Connect the direction, set, and reset pins to MCU IO pins.
- Use the buttons for navigation input.
More Info
- Small form factor module
- Suitable for control panel navigation
- Mounted on a breakout board
