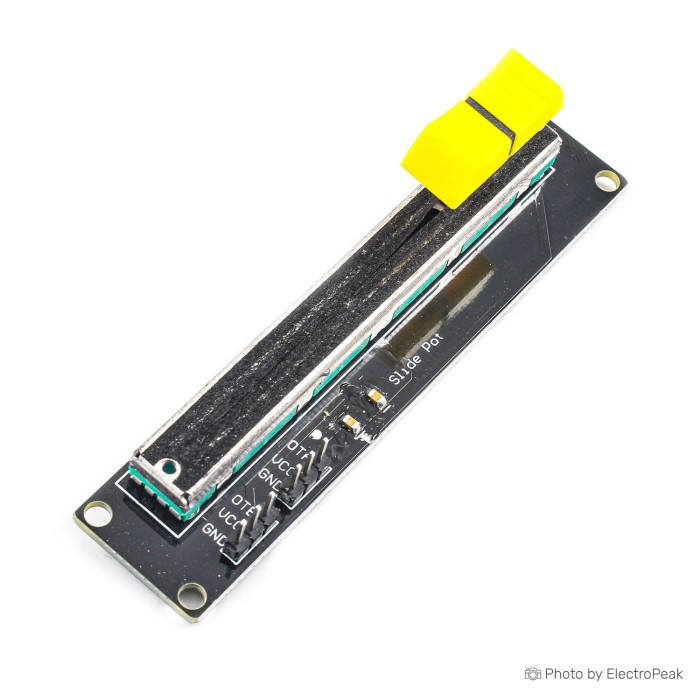

10K Ohm Slide Potentiometer Module
$1.2500
In stock
SKU
misc-04-026
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1800
- +300 7 % $1.1600
- +500 10 % $1.1300
- +1000 11 % $1.1100
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The 10K Ohm Slide Potentiometer Module is a linear variable resistor module with adjustable output voltage. It provides a 0 V to VCC output range as the slider moves from one side to the other. This potentiometer module is designed as a three-terminal adjustable voltage divider with a sliding contact. It features dual analog output for analog signal control. The module is suitable for use with Arduino, MCU, ARM, and other single microcomputer platform chip applications.
Features of 10K Ohm Slide Potentiometer Module - 6 Pins
- 10K resistance
- Input voltage support
- Analog port
- Dual analog output
- 6-pin interface
Specifications of 10K Ohm Slide Potentiometer Module - 6 Pins
- Input Voltage: 3.3V, 5V
- Port: Analog
- Resistance: 10K
- Platform: for Arduino, MCU, ARM, and other single microcomputer platform chip
- Output: Dual Analog Output, 0-VCC analog voltage signal
- Pin Number: 6 Pins
- Size: 90mm x 20mm
How to Use 10K Ohm Slide Potentiometer Module - 6 Pins
- Connect the module to the supported analog input circuit.
- Move the slider to adjust the output voltage.
More Info
- Linear variable resistor design
- Adjustable voltage divider output
| Platform | SCM,ARM |
|---|---|
| Interface Type | Analog |
| Operating Voltage (V) | 3.3V, 5V |
| Dimensions (mm) | 90 x 20 mm |
| Function | Potentiometer |
| Output Type | Analog Voltage |
| Channel Count | 2 |
| Weight (g) | 20 |
| Chipset | SCM, ARM |
| Sensor Type | Positioning sensor |
