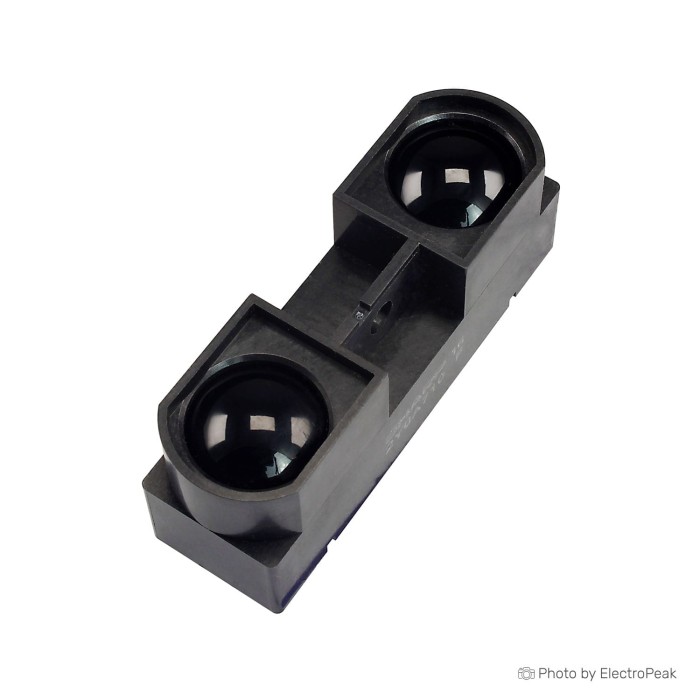

GP2Y0A710K0F Infrared Distance Sensor

GP2Y0A710K0F Infrared Distance Sensor is a long-range IR distance measuring module for distance detection and proximity sensing. It uses a PSD and IRED structure with a triangulation method for measurement. The output is an analog voltage that changes with the distance between the lens and the target object. This sensor is designed for integration into electronic and robotics systems that require distance measurement. It can also be used in automatic lighting systems and human presence detection. The sensor is from SHARP.

Features of GP2Y0A710K0F Infrared Distance Sensor - 100 To 550cm, 4.5V To 5.5V, 30mA

• Long-range IR distance measurement
• Analog voltage output
• PSD and IRED structure
• Triangulation method
• SHARP sensor

Specifications of GP2Y0A710K0F Infrared Distance Sensor - 100 To 550cm, 4.5V To 5.5V, 30mA

• Type: Infrared (IR)
• Measuring range: 100 to 550 cm
• Output: Analog voltage
• Supply voltage: 4.5 to 5.5 V
• Current consumption: 30 mA
• Structure: PSD and IRED
• Measurement method: Triangulation
• Pin information: Refer to the image below

How to Use GP2Y0A710K0F Infrared Distance Sensor - 100 To 550cm, 4.5V To 5.5V, 30mA

1. Connect the sensor to a 4.5 V to 5.5 V power supply.
2. Read the analog output to determine distance.
3. Use the pinout image for wiring connections.

More Info

• Suitable for robotics and distance detection applications.
• The output voltage varies with target distance.
• Pinout details are shown in the provided image.
