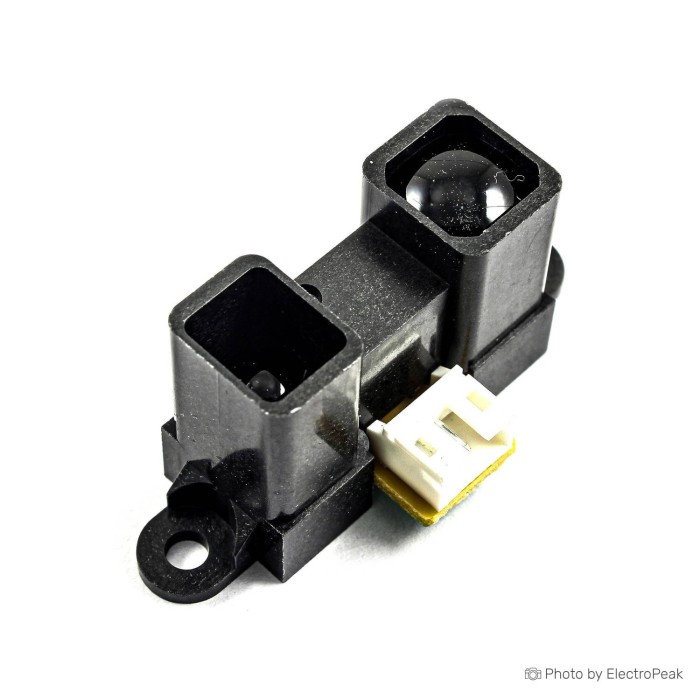

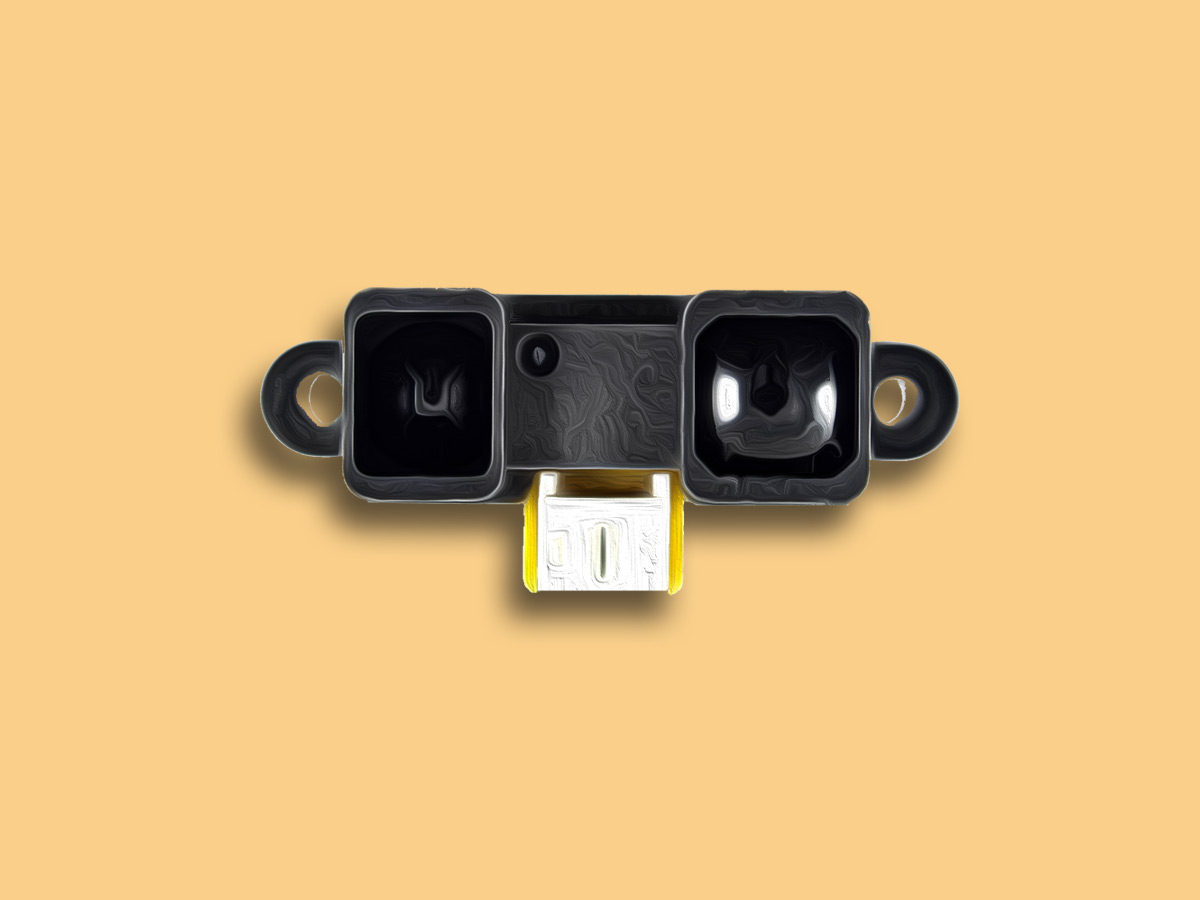

GP2Y0A02YK0F Infrared Distance Sensor
$5.5000
In stock
SKU
SEN-05-008
Volume discounts:
- +25 4 % $5.2700
- +50 6 % $5.1600
- +100 8 % $5.0400
- +300 10 % $4.9300
- +500 13 % $4.8100
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GP2Y0A41SK0F Infrared Distance Sensor Previous
GP2Y0A02YK0F Infrared Distance Sensor is a distance measuring sensor unit with an integrated PSD, IRED, and signal processing circuit. It uses triangulation-based distance detection and outputs a voltage corresponding to the detected distance. The sensor can also be used as a proximity sensor. It is designed for applications that require analog distance output and compact sensing. The GP2Y0A02YK0F is suitable for electronics, robotics, and automation projects that need non-contact distance measurement.
Features of GP2Y0A02YK0F Infrared Distance Sensor - 20cm To 150cm, Analog, 4.5V To 5.5V
- Triangulation-based distance detection
- Analog voltage output
- Proximity sensing support
- Compact sensor unit
- Integrated PSD and IRED
Specifications of GP2Y0A02YK0F Infrared Distance Sensor - 20cm To 150cm, Analog, 4.5V To 5.5V
- Distance range: 20cm to 150cm
- Output type: Analog
- Input voltage: 4.5V to 5.5V
- Working current: 33 mA
- Update period: 38 ± 10 ms
- Size: 29.5mm x 13mm x 21.6mm
- Voltage supply: 4.5 to 5.5 volts DC
- Current consumption: 50 milliamperes
- Operating temperature: -10 to 60 degrees Celsius
- Storage temperature: -40 to 70 degrees Celsius
- Dimensions: 37x24.5x13.7 mm
How to Use GP2Y0A02YK0F Infrared Distance Sensor - 20cm To 150cm, Analog, 4.5V To 5.5V
- Apply a DC input voltage within the specified range.
- Connect the analog output to the control circuit.
- Keep the lens clean during use.
More Info
- The sensor output varies with detection distance.
- Do not wash the device.
- A bypass capacitor of 10μF or more is recommended between Vcc and GND near the product.
- Avoid excessive mechanical pressure on the sensor package and PCB during assembly.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 4.5 to 5.5 V |
| Operating Current (mA) | 50 mA |
| Operating Temp (°C) | -10 to 60 °C |
| Dimensions (mm) | 37 x 24.5 x 13.7 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Response Time | 39 ms |
| Detection Distance | 20 to 150 cm |
| Sensing Method | Infrared (IR) |
| Chipset | GP2Y0A02YK0F |
| Channels | 1-channel |
| Sensor Model | GP2Y0A02YK0F |
