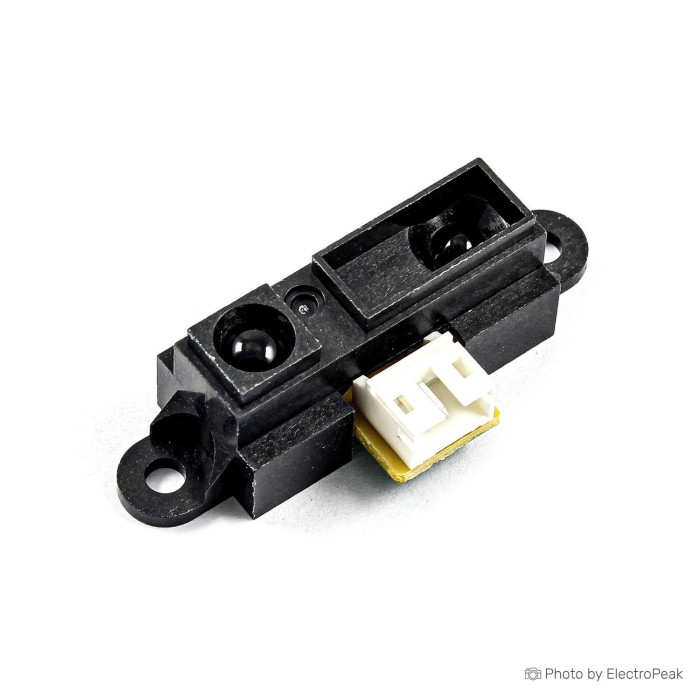

GP2Y0A41SK0F Infrared Distance Sensor
$5.9500
In stock
SKU
SEN-05-009
Volume discounts:
- +25 4 % $5.7000
- +50 6 % $5.5700
- +100 8 % $5.4500
- +300 11 % $5.3200
- +500 13 % $5.1900
Product Variations: View out of stock variants
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GP2Y0A710K0F Infrared Distance Sensor Previous
The GP2Y0A41SK0F Infrared Distance Sensor is a distance measuring sensor unit with an analog voltage output. It is designed for distance detection and proximity sensing in compact electronics and robotics projects. The sensor uses a three-pin PH connector and works with PH three-pin cables for Sharp distance sensors. Its output can be read through an ADC input or connected to a comparator for threshold detection. The detection range is approximately 4 to 30 cm.
Features of GP2Y0A41SK0F Infrared Distance Sensor - 4-30cm
- Analog voltage output
- Distance sensing function
- Proximity sensing support
- Three-pin PH connector
- ADC-compatible output
Specifications of GP2Y0A41SK0F Infrared Distance Sensor - 4-30cm
- Working voltage: 4.5 to 5.5 V DC
- Average current consumption: 12 mA
- Distance measurement range: 4-30 cm
- Output type: Analog voltage
- Output voltage differential: 2.3 V
- Size: 44.5x18.9x13.5 mm
- Weight: 3.5 g
How to Use GP2Y0A41SK0F Infrared Distance Sensor - 4-30cm
- Connect the sensor through the three-pin PH connector.
- Read the analog output with an ADC input or a comparator.
- Use the output voltage for distance detection.
More Info
- Uses a triangulation method for distance detection.
- Composed of a PSD, IR-LED, and signal processing circuit.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 4.5 to 5.5V DC |
| Operating Current (mA) | 12 mA |
| Operating Temp (°C) | -10 to 60 °C |
| Dimensions (mm) | 44.5 x 18.9 x 13.5 mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Response Time | 38.3 ms |
| Detection Distance | 4-30 cm |
| Sensing Method | Infrared (IR) |
| Weight (g) | 3.5 |
| Chipset | GP2Y0A41SK0F |
| Channels | 1-channel |
| Sensor Model | GP2Y0A41SK0F |
