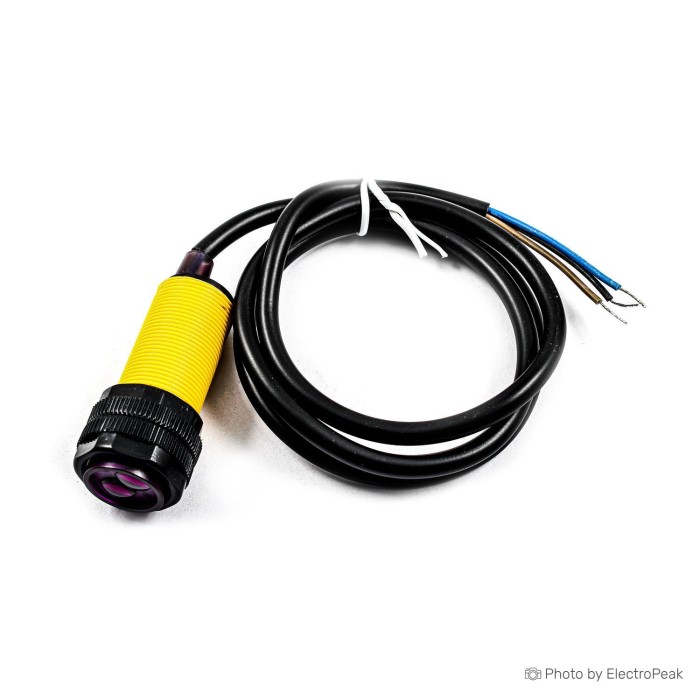

E18-D80NK IR Obstacle Avoidance Proximity Sensor
SAVE
As low as $1.6600
In stock
Only %1 left
SKU
SEN-19-002
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
4 Channel IR Line Tracking Obstacle Avoidance Module Previous
The E18-D80NK IR Obstacle Avoidance Proximity Sensor is an infrared proximity sensor with adjustable detection distance. It uses an integrated transmitter and receiver to detect objects through reflected infrared light. A rear potentiometer allows the sensing range to be adjusted as needed. The sensor can be used for object detection and obstacle detection in robotics. It is also suitable as a photoelectric switch. The output model is NPN NC (Normally Close), and the sensor status changes from LOW to HIGH when an obstacle is detected.
Features of E18-D80NK IR Obstacle Avoidance Proximity Sensor
- Infrared sensing
- Adjustable detection distance
- LED status indicator
- NPN NC output
- Obstacle detection support
Specifications of E18-D80NK IR Obstacle Avoidance Proximity Sensor
- Voltage: 5V DC
- Model: NPN NC (Normally Close)
- Current: 100mA
- Sensor type: Infrared
- Detection distance: 3cm to 80cm
- Detection angle: 15 degrees
- Object detection standard: from 3000 lux bright light to 10000 lux sunlight
- Diameter: 18MM
- Length: 45MM
- Power cord length: 45C
How to Use E18-D80NK IR Obstacle Avoidance Proximity Sensor
- Connect the sensor to a 5V DC supply.
- Adjust the potentiometer to set the detection distance.
- Use the output signal for object or obstacle detection.
More Info
- The output is LOW under normal conditions.
- The output becomes HIGH when an obstacle is detected.
- Other output models are also selectable.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 100mA |
| Operating Temp (°C) | -25 to 55 °C |
| Dimensions (mm) | 18mm Diameter x 45mm Length |
| Mounting Type | Cylindrical |
| Output Type | Digital |
| Accuracy | 3000 to 10000 Lux |
| Response Time | < 2 ms |
| Detection Distance | 3cm to 80cm |
| Detection Angle (°) | 15 degrees |
| Sensing Method | Infrared (IR) |
| Chipset | E18-D80NK |
| Max Output (A) | 100mA |
| Channels | 1-channel |
| Sensor Model | E18-D80NK |
| Signal Indicator | Signal output indicator |
