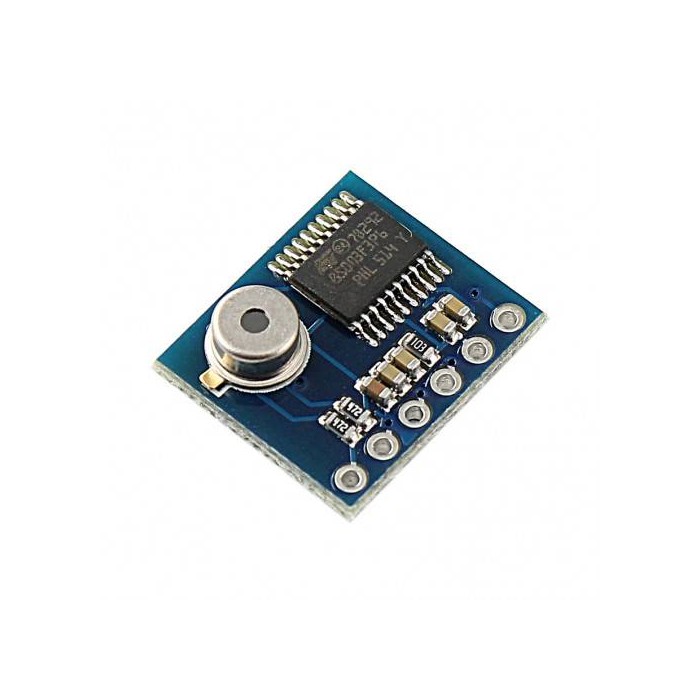

GY-MCU906 Non-Contact Infrared Temperature Sensor Module
$23.9500
In stock
SKU
SEN-10-028
Volume discounts:
- +25 4 % $23.0200
- +50 6 % $22.5500
- +100 8 % $22.0900
- +300 10 % $21.6200
- +500 12 % $21.1500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MLX90615 Non-Contact Infrared Temperature Sensor Module Previous
GY-MCU906 Non-Contact Infrared Temperature Sensor Module is an infrared temperature module for non-contact temperature measurement. It supports serial communication output and can be connected to an Arduino or other microcontroller. The module also supports TTL level communication output through the microcontroller serial port. It provides continuous output and query output modes at serial baud rates of 9600bps and 115200bps. The module is designed for temperature reading through infrared sensing without direct contact with the object.
Features of GY-MCU906 Non-Contact Infrared Temperature Sensor Module
- Non-contact temperature measurement
- I2C communication protocol
- Serial communication support
- TTL level output
- Continuous output mode
- Query output mode
- Low-power mode
- High-resolution sensing
Specifications of GY-MCU906 Non-Contact Infrared Temperature Sensor Module
- Target temperature range: -40°C ~ 115°C
- Sensor temperature range: -40°C ~ 85°C
- Measurement accuracy: 0.5°C (0-50 degrees)
- Resolution: 0.02°C
- Frequency response: 10Hz
- Operating voltage: 3 ~ 5 V
- Operating current: 5mA
- Dimensions: 14m X 16mm
- Pin1 VCC Power + (3V-5V)
- Pin2 GND power ground
- Pin3 TX serial data transmission TXD
- Pin4 RX serial data receiver RXD
- Pin5 RST internal use and does not require connection, suspended
- Pin6 SIM internal use and does not require connection, suspended
- Serial baud rate: 9600bps
- Serial baud rate: 115200bps
How to Use GY-MCU906 Non-Contact Infrared Temperature Sensor Module
- Connect the module to a microcontroller through the serial interface or I2C interface.
- Supply power within the 3 ~ 5 V operating voltage range.
- Read temperature data through the selected communication mode.
More Info
- Factory calibrated for sensor temperature and target temperature ranges.
- Suitable for temperature reading applications.
| Interface Type | UART, I2C |
|---|---|
| Operating Voltage (V) | 3.3V-5V |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT (Through Hole) |
| IP Rating | None |
| Output Type | UART |
| Accuracy | 0.02 °C |
| Resolution | 0.02 °C |
| Measurement Range | Ambient: -40 to +85 °C, Object: -70 to +380 °C |
| Environmental Parameter | Temperature |
| Probe Type | Non-contact |
| Chipset | MLX90615 |
| Relay Output | No |
| Protocols | UART |
| Temp Accuracy | ±0.5 °C |
