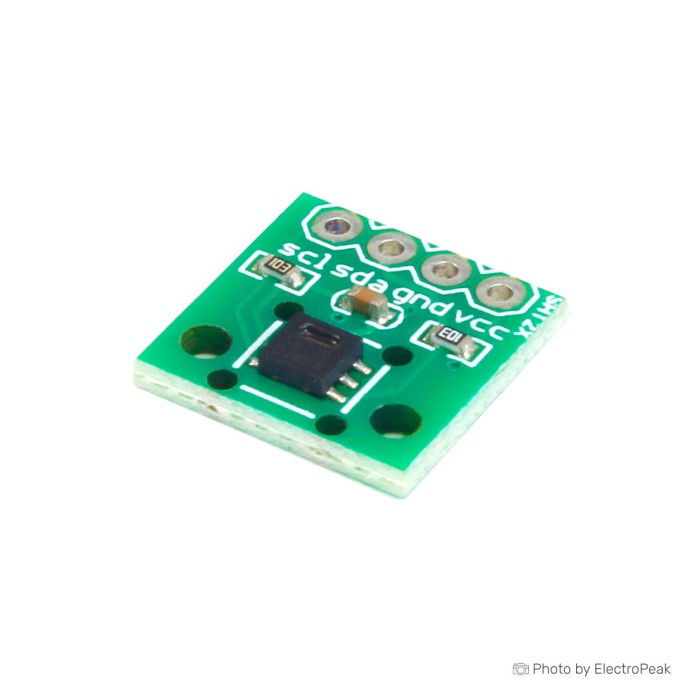

SHT20 Temperature Humidity Sensor Module
$1.7700
In stock
SKU
SEN-10-029
Volume discounts:
- +50 4 % $1.7000
- +100 6 % $1.6600
- +300 8 % $1.6200
- +500 11 % $1.5800
- +1000 12 % $1.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-MCU906 Non-Contact Infrared Temperature Sensor Module Previous
SHT20 Temperature Humidity Sensor Module is a digital temperature and humidity sensor module with an I2C interface. It is fully calibrated and designed for accurate environmental measurement. The module uses a capacitive sensing element for humidity detection and includes temperature sensing functionality. It provides a digital output and supports low-power, small-size applications. The sensor is suitable for measurement tasks that require compact electronics and standard I2C communication.
Features of SHT20 Temperature Humidity Sensor Module - I2C, 1.5-3.6V
- Digital output
- I2C interface
- Capacitive humidity sensing
- Fully calibrated sensor
- Low-power design
- Small-size module
- Fast recovery time after long saturation periods
Specifications of SHT20 Temperature Humidity Sensor Module - I2C, 1.5-3.6V
- Supply voltage: 1.5 ~ 3.6 V
- Temperature resolution: 14 bit : 0.01 °C
- Temperature resolution: 12 bit : 0.04 °C
- Humidity resolution: 12 bit : 0.04 %RH
- Humidity resolution: 8 bit : 0.7 %RH
- Temperature accuracy: ±0.3
- Humidity accuracy: ±3.0
- Repeatability: ±0.1
- Temperature range: -40 to 125 °C
- Humidity range: 0 to 100 %RH
- Interface: I2C
- Output type: Digital
- Analog PWM output signal
- Pin Number: 4 Pins
- Small DFN package
How to Use SHT20 Temperature Humidity Sensor Module - I2C, 1.5-3.6V
- Connect the module to a compatible I2C circuit.
- Apply power within the 1.5 ~ 3.6 V range.
- Read the digital temperature and humidity output.
More Info
- Suitable for car cabins
- Suitable for household appliances
- Suitable for medical equipment
- Suitable for humidifiers, dehydrators, and driers
- Suitable for weather stations
- Suitable for security systems
- Pin header is pre-soldered and is a right-angle type
- Confirm the part shape with sales before purchase if the shape is important
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 1.5 ~ 3.6 V |
| Operating Current (mA) | 300 µA (Max), 0.15 µA (Sleep) |
| Operating Temp (°C) | -40 to 125 °C |
| Output Type | I2C |
| Accuracy | ±0.3 °C, ±3.0 %RH |
| Resolution | 14 bit: 0.01 °C, 12 bit: 0.04 °C; 12 bit: 0.04 %RH, 8 bit: 0.7 %RH |
| Response Time | 8s (tau 63%) |
| Measurement Range | Temperature: -40 to 125 °C, Humidity: 0 to 100 %RH |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Capacitive |
| Chipset | SHT20 |
| Humidity Range | 0 to 100 %RH |
| Relay Output | No |
| Humidity Accuracy | ±3.0 %RH |
| Protocols | I2C |
| Temp Accuracy | ±0.3 °C |
