Liquid Level Detection Sensor Module
$0.2000
In stock
SKU
SEN-10-030
Volume discounts:
- +100 5 % $0.1900
- +1000 10 % $0.1800
- +10000 15 % $0.1700
Liquid Level Detection Sensor Module is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
P52 Liquid Level Sensor - Float Switch Previous

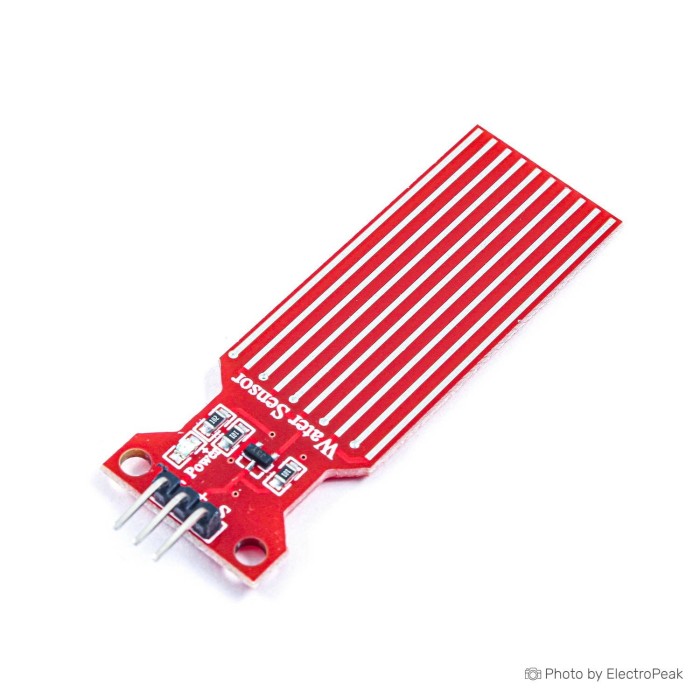

The Liquid Level Detection Sensor Module is a simple and practical sensor for measuring water level and volume inside a container or pot. It converts water presence and level changes into analog signals for microcontroller-based measurement. The module uses parallel wires and exposed traces to detect droplets and water volume. It is suitable for high-level and low-level detection with Arduino and other electronics projects. This liquid level sensor is designed for straightforward level monitoring in compact applications.
Features of Liquid Level Detection Sensor Module - Analog, 3V-5V
- Analog output
- 3V to 5V working voltage
- Less than 20mA working current
- 40 mm x 16 mm detection area
- 3.2mm screw hole size
- 3-pin design
- Water level and volume detection
Specifications of Liquid Level Detection Sensor Module - Analog, 3V-5V
- Output type: Analog
- Working voltage: 3V ~ 5V
- Working current: less than 20mA
- Detection area: 40 mm × 16 mm
- Screw hole size: 3.2 mm
- Operating temperature: 10°C ~ 30°C
- Operating humidity: 10% ~ 90% RH
- Number of pins: 3
- Dimensions: 65 mm × 20 mm × 8 mm
How to Use Liquid Level Detection Sensor Module - Analog, 3V-5V
- Mount the module in the monitoring area using the screw holes if needed.
- Connect the 3 pins to your measurement circuit or microcontroller.
- Read the analog signal to monitor changes in liquid level.
More Info
- Designed for liquid level and water volume measurement.
- Suitable for level change detection in containers and pots.
