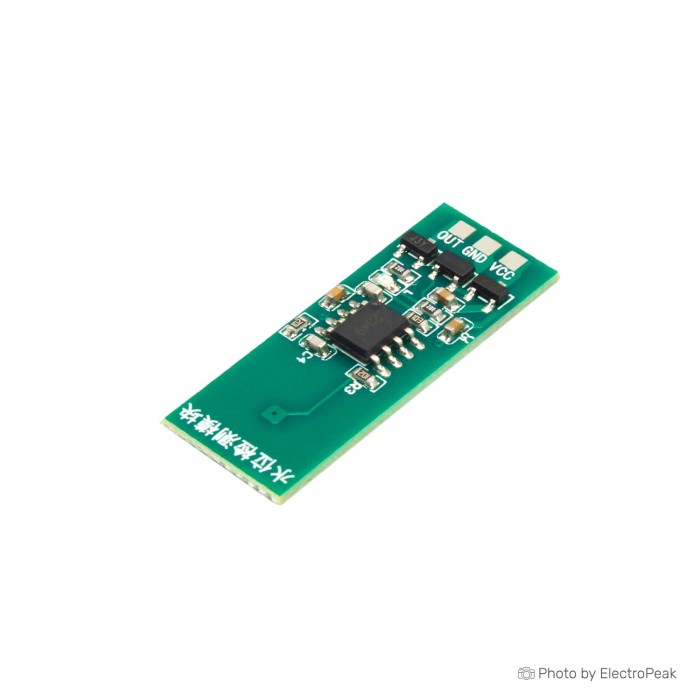

The M04 Non-contact Water Liquid Level Module is designed for detecting the presence of water or other liquids without direct contact. It operates on a supply voltage of 3.3V to 24 and has a sensing distance typically ranging from 3mm to 4.5mm. This compact module is ideal for applications where direct contact with the liquid is not feasible or desirable. It provides a high-level output when no liquid is detected and a low-level output when liquid is present.
Specifications of M04 Non-contact Liquid Level Module
-
Supply Voltage: 3.3V - 24V
-
Sensing Distance: 3mm - 4.5mm
-
Output: High level when no liquid, low level when liquid is detected
-
Dimensions: 12mm x 31mm
-
Interface:
-
GND: Power supply ground
-
VCC: Power supply 3.3V - 24V
-
OUT: Output
-
Applications of M04 Non-contact Liquid Level Module
-
Water level detection in tanks
-
Liquid level monitoring in pipelines
-
Overflow prevention in containers
-
Industrial liquid level sensing
-
Non-contact liquid level detection in household appliances
How to Use M04 Non-contact Liquid Level Module
Connections:
GND: Connect to the ground of the power supply.
VCC: Connect to a 3.3V to 24V power supply.
OUT: Connect to the input port of a microcontroller or other device to receive the output signal.
Operation:
When the sensor detects the presence of liquid, it will output a low level signal.
When no liquid is detected, the sensor will output a high level signal.
