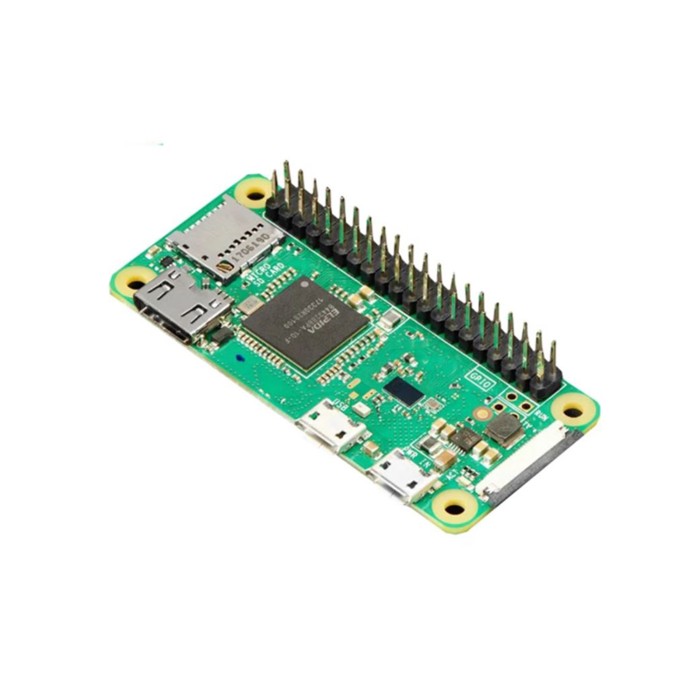

Raspberry Pi Zero WH

Raspberry Pi Zero WH is a compact Raspberry Pi board for embedded systems, wearable devices, prototyping, and other micro-scale projects. It combines a small 65mm x 30mm form factor with built-in wireless internet and Bluetooth connectivity. The board uses a BCM2835 chipset overclocked to 1GHz and includes 512MB RAM. It supports 1080p video output and uses a 40-pin GPIO layout. The Raspberry Pi Zero WH is designed for low power use and includes pre-soldered GPIO headers.

Features of Raspberry Pi Zero WH

• Broadcom BCM2835 1GHz ARM11 single-core processor
• 512MB RAM
• 802.11 b/g/n wireless LAN
• Bluetooth 4.1
• Bluetooth Low Energy (BLE)
• 40-pin pre-soldered GPIO headers
• Micro SD card slot
• Mini-HDMI port
• Micro-USB power
• Micro-USB OTG port
• CSI camera connector
• Composite video header
• Composite reset header

Specifications of Raspberry Pi Zero WH

• Display and Audio: Mini-HDMI
• USB Port: micro-B for data
• Power Input: Micro-B USB
• Camera Interface: CSI camera connector
• Camera Cable Requirement: 0.5mm pitch CSI adaptor cable
• GPIO: 40-pin GPIO connector
• GPIO Compatibility: Compatible with existing HAT add-ons
• Dimensions: 65mm x 30mm x 11.6mm (Approx.)

How to Use Raspberry Pi Zero WH

1. Insert a Micro SD card into the board.
2. Connect power through the Micro-B USB port.
3. Use the Mini-HDMI port, GPIO connector, or other available headers for your project connections.

More Info

• Compact board for small-scale electronics projects.
• Includes pre-soldered headers for easier setup.
• Supports built-in wireless connectivity and Bluetooth.
